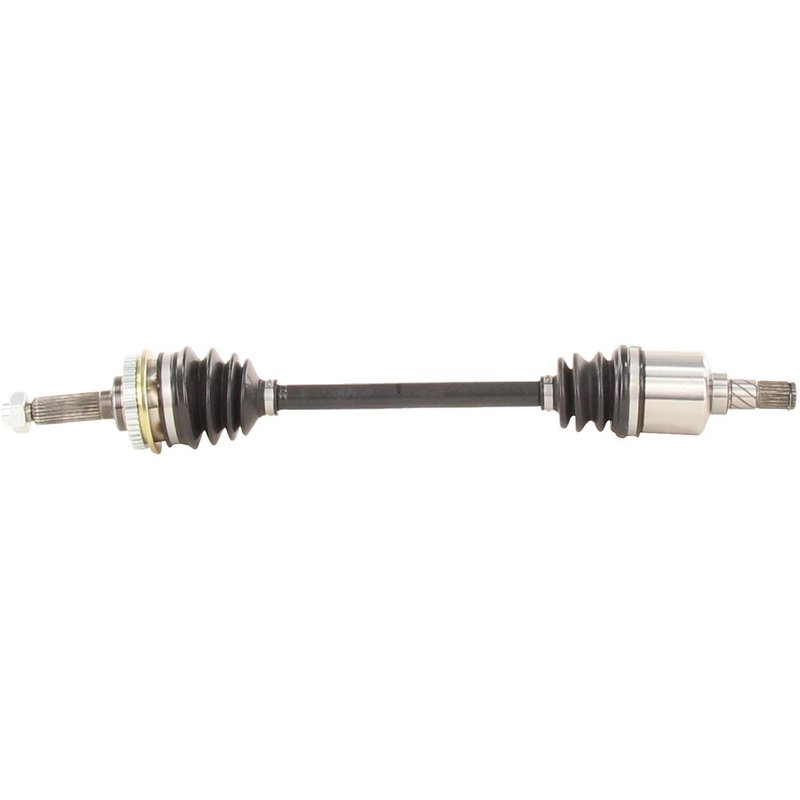

TrakMotive GM-8020 CV Axle Shaft - Front Left

Overview of TrakMotive GM-8020 CV Axle Shaft

The TrakMotive GM-8020 CV Axle Shaft is engineered for reliable driveline performance in Chevrolet Metro, Geo Metro, and Suzuki Swift vehicles. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Chevrolet Metro, Geo Metro, and Suzuki Swift models
• Includes ABS tone ring with 42 toothed ring teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced joint protection
• Axle nut included with hex head type and standard locking mechanism
• Overall compressed length of 24.31 inches (617.5 mm) for exact fit

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality constant velocity components designed to meet OEM specifications. This CV axle shaft features a male inboard joint type with 22 splines and a conventional outboard joint with 23 splines, ensuring compatibility and smooth power transfer. The inclusion of a toothed ABS ring and tone ring supports proper ABS functionality, critical for vehicle safety systems.

Technical Specifications and Features

This GM-8020 CV axle shaft includes a neoprene boot that resists wear and environmental damage, extending the life of the joint. The axle nut is a hex head type measuring 3/4 inch (19 mm) in height and 1 1/6 inch (30 mm) across the flats, with a thread size of M18x1.5 and a length of 1 1/3 inch (34.6 mm). The standard locking axle nut ensures secure installation. The overall compressed length of 24.31 inches (617.5 mm) matches factory dimensions for proper fitment in the specified vehicle models.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Chevrolet Metro, Geo Metro, and Suzuki Swift
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates vibrations and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included axle nut and locking mechanism

Installation Notes and Tips

When installing the GM-8020 CV axle shaft, verify the axle nut torque specifications for your specific vehicle model. The included hex head axle nut should be tightened to factory recommended torque using a compatible socket size of 1 1/6 inch (30 mm). Inspect the axle boots and joints for any damage before installation. Proper alignment of the male inboard joint and conventional outboard joint is essential for smooth driveline operation.

Quality Assurance and Warranty

The TrakMotive GM-8020 CV Axle Shaft is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a neoprene boot and ABS tone ring to maintain vehicle safety and performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and durability in driveline applications.
