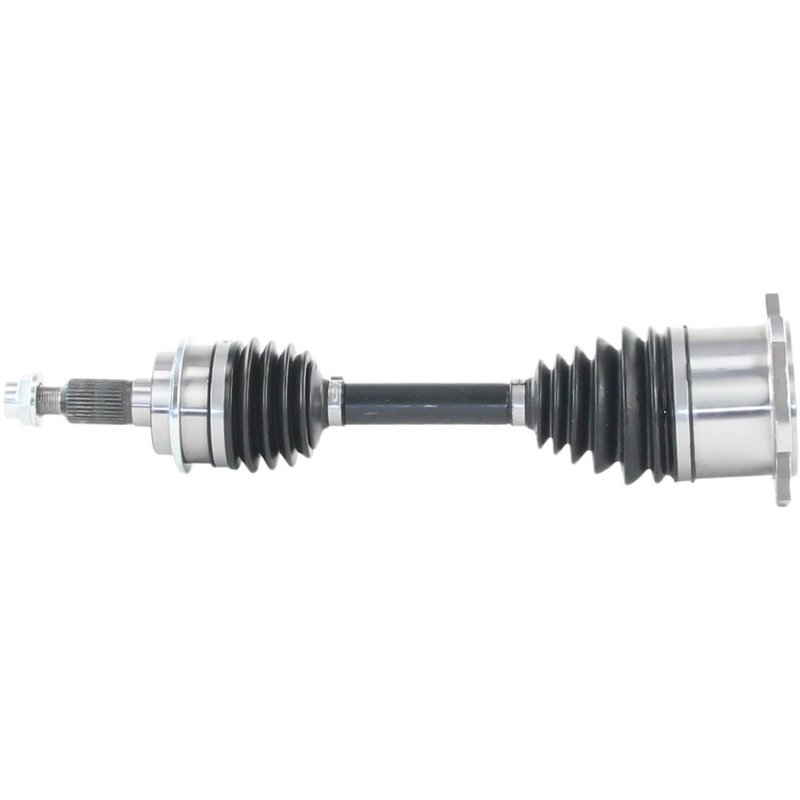

TrakMotive GM-8026HDX CV Axle Shaft - Front
OE Quality 60-Day Returns
TrakMotive
 Extreme Climate CV Axle Shaft

TrakMotive GM-8026HDX CV Axle Shaft - Front

Brand TrakMotive GM-8026HDX
Position Front
ABS Ring Tooth Count 0
ABS Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (in) .85
Axle Nut Height (mm) 22
Axle Nut Hex Size (in) 1.42
Axle Nut Hex Size (mm) 36
Axle Nut Included Yes
Axle Nut Length (in) 1.64
Axle Nut Length (mm) 42
Axle Nut Locking Type Self-lock
Axle Nut Socket Size 36
Axle Nut Thread Size M24x2
Grade Type Premium
Inboard Joint Boot Material Thermoplastic
Inboard Joint Type Flange
Inboard Shaft Connection Style Flange
Number Of Bolt Holes 0
Number Of Inboard Joint Bolt Holes 0
Number Of Inboard Shaft Bolts 0
Number Of Inboard Splines 0
Number Of Outboard Joint Bolt Holes 0
Number Of Outboard Shaft Bolts 0
Number Of Outboard Splines 33
Outboard Joint Boot Material Thermoplastic
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 21.75
Overall Compressed Length (mm) 552
Product line Extreme Climate CV Axle Shaft
Fits Chevrolet, GMC, and Hummer · 115 vehicles

Extreme Climate design. Premium 7023B grease and TPE boots help maintain OE performance in extreme temperatures.

OE performance. Built to maintain original-equipment function under severe temperature swings.

Premium construction. Thermoplastic boots and a conventional CV axle shaft design support dependable driveline operation.

Cross-references Cardone New 66-1325HD, TrakMotive GM-8026HDX and NCV10241XD for the same application. See all 3.

$134.32Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $134.32
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

Extreme Climate Front CV Axle Shaft

TrakMotive GM-8026HDX is a premium front CV axle shaft for heavy-duty GM trucks and SUVs that need dependable driveline performance in severe temperature swings. It is built with special 7023B grease and thermoplastic boots to help maintain OE-level operation in hot and cold conditions.

Compatible With front applications on Chevrolet Silverado 2500, Silverado 2500 HD, Silverado 3500 HD, Avalanche 2500, Suburban 2500, GMC Sierra 2500 HD, Sierra 3500 HD, Sierra 3500, Yukon XL 2500, and Hummer H2.

  • Extreme Climate CV axle shaft for front driveline service
  • Premium grade construction for demanding truck and SUV use
  • Special 7023B grease formulated for temperature extremes up to +/- 50°C
  • TPE and thermoplastic boot materials for joint protection
  • 33 outboard splines
  • Flange inboard joint and spline outboard shaft connection
  • Includes axle nut with M24x2 thread, 36 mm hex, and self-lock design
  • No ABS tone ring included

Product Details

TrakMotive GM-8026HDX is an Extreme Climate CV Axle Shaft engineered for front-wheel driveline service on select Chevrolet, GMC, and Hummer platforms. The design uses premium grease and thermoplastic boot materials to help preserve OE-style performance when temperatures fluctuate sharply, making it a practical choice for Silverado 2500 HD, Sierra 2500 HD, Silverado 3500, Sierra 3500, and related heavy-duty applications. Overall compressed length is 21.75 inches, and the axle includes a self-lock axle nut for the specified fitment.

This part cross-references Cardone New 66-1325HD and NCV10241XD for the same application. The part number GM-8026HDX is also useful when verifying catalog fitment for front axle replacement on GM HD trucks and SUVs.

Common Repair Uses

  • Restores front axle shaft function after CV joint wear or boot failure
  • Addresses clicking, vibration, or binding from a worn front CV axle
  • Replaces a damaged axle on Chevrolet Silverado 2500 HD and GMC Sierra 2500 HD applications
  • Helps correct grease loss caused by cracked or heat-aged boots
  • Supports driveline repair on Chevrolet Suburban 2500, GMC Yukon XL 2500, and Hummer H2 front applications

Installation Notes

Verify spline count, compressed length, axle nut thread size, and front application before installation. This axle uses a flange-style inboard connection and a conventional outboard joint, so matching the original configuration is important. Always inspect related suspension and hub components during service, and replace in pairs where the vehicle application notes specify it.

Quality Assurance

TrakMotive’s Extreme Climate CV Axle Shaft line is built around premium materials selected to maintain OE performance in severe temperature conditions. GM-8026HDX uses 7023B grease and thermoplastic boots to support consistent operation across hot and cold climates.

Related reading

This part fits 115 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypePositionNotes
2013ChevroletSuburban 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2013GMCYukon XL 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2012ChevroletSuburban 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2012GMCYukon XL 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2011ChevroletSuburban 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2011GMCYukon XL 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2010ChevroletSilverado 2500——FrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2010ChevroletSilverado 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2010ChevroletSilverado 3500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2010ChevroletSuburban 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2010GMCSierra 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2010GMCSierra 3500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2010GMCYukon XL 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2009ChevroletSilverado 2500——FrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2009ChevroletSilverado 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2009ChevroletSilverado 3500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2009ChevroletSuburban 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2009GMCSierra 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2009GMCSierra 3500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2009GMCYukon XL 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2009HummerH2—AWDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2008ChevroletSilverado 2500——FrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2008ChevroletSilverado 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2008ChevroletSilverado 3500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2008ChevroletSuburban 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2008GMCSierra 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2008GMCSierra 3500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2008GMCYukon XL 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2008HummerH2—AWDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2007ChevroletSilverado 1500 HD Classic—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2007ChevroletSilverado 2500——FrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2007ChevroletSilverado 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2007ChevroletSilverado 2500 HD Classic—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2007ChevroletSilverado 3500—RWDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2007ChevroletSilverado 3500 Classic—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2007ChevroletSilverado 3500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2007ChevroletSuburban 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2007GMCSierra 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2007GMCSierra 2500 HD Classic—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2007GMCSierra 3500 Classic—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2007GMCSierra 3500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2007GMCYukon XL 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2007HummerH2—AWDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2006ChevroletAvalanche 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2006ChevroletSilverado 1500 HD—4WDFront8 Lug Wheel; Extreme Climate CV Axle Shaft
2006ChevroletSilverado 2500——FrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2006ChevroletSilverado 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2006ChevroletSilverado 3500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2006ChevroletSuburban 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2006GMCSierra 1500 HD—4WDFront8 Lug Wheel; Extreme Climate CV Axle Shaft
2006GMCSierra 2500 HD—4WDFront8 Lug Wheel; Extreme Climate CV Axle Shaft
2006GMCSierra 3500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2006GMCYukon XL 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2006HummerH2—AWDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2005ChevroletAvalanche 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2005ChevroletSilverado 1500 HD—4WDFront8 Lug Wheel; Extreme Climate CV Axle Shaft
2005ChevroletSilverado 2500——FrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2005ChevroletSilverado 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2005ChevroletSilverado 3500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2005ChevroletSuburban 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2005GMCSierra 1500 HD—4WDFront8 Lug Wheel; Extreme Climate CV Axle Shaft
2005GMCSierra 2500 HD—4WDFront8 Lug Wheel; Extreme Climate CV Axle Shaft
2005GMCSierra 3500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2005GMCYukon XL 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2005HummerH2—AWDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2004ChevroletAvalanche 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2004ChevroletSilverado 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2004ChevroletSilverado 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2004ChevroletSilverado 3500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2004ChevroletSuburban 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2004GMCSierra 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2004GMCSierra 2500 HD—4WDFront8 Lug Wheel; Extreme Climate CV Axle Shaft
2004GMCSierra 3500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2004GMCYukon XL 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2004HummerH2—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2003ChevroletAvalanche 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2003ChevroletSilverado 1500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2003ChevroletSilverado 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2003ChevroletSilverado 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2003ChevroletSilverado 3500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2003ChevroletSuburban 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2003GMCSierra 1500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2003GMCSierra 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2003GMCSierra 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2003GMCSierra 3500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2003GMCYukon XL 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2003HummerH2—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2002ChevroletAvalanche 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2002ChevroletSilverado 1500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2002ChevroletSilverado 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2002ChevroletSilverado 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2002ChevroletSilverado 3500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2002ChevroletSuburban 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2002GMCSierra 1500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2002GMCSierra 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2002GMCSierra 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2002GMCSierra 3500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2002GMCYukon XL 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2001ChevroletSilverado 1500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2001ChevroletSilverado 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2001ChevroletSilverado 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2001ChevroletSilverado 3500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2001ChevroletSuburban 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2001GMCSierra 1500C3AWDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2001GMCSierra 1500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2001GMCSierra 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2001GMCSierra 2500 HD—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2001GMCSierra 3500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2001GMCYukon XL 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2000ChevroletSilverado 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2000ChevroletSuburban 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2000GMCSierra 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
2000GMCYukon XL 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
1999ChevroletSilverado 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
1999GMCSierra 2500—4WDFrontAlways Replace in Pairs; Extreme Climate CV Axle Shaft
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cardone New — 66-1325HDTrakMotive — GM-8026HDXNCV10241XD
