Home› Driveline and Axles > CV Components› TrakMotive GM-8030XTT CV Axle Shaft - Front Left or Front Right
TrakMotive GM-8030XTT CV Axle Shaft - Front Left or Front RightOE Quality 60-Day Returns

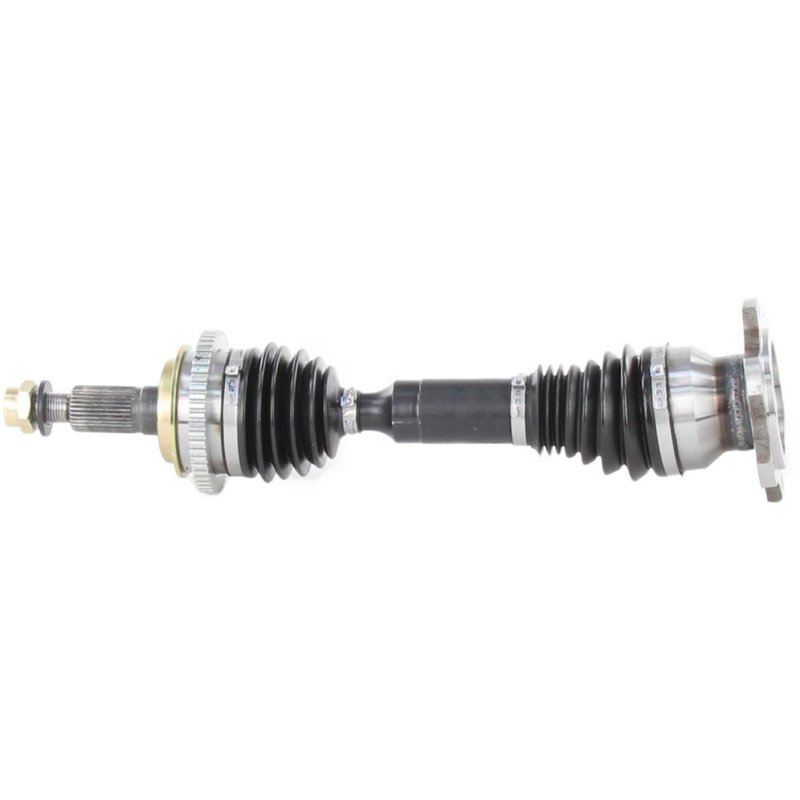

TrakMotive GM-8030XTT CV Axle Shaft - Front Left or Front Right
TrakMotive GM-8030XTT CV Axle Shaft - Front Left or Front Right
TrakMotive GM-8030XTT CV Axle Shaft - Front Left or Front Right
Part #: GM-8030XTT

TrakMotive GM-8030XTT CV Axle Shaft - Front Left or Front Right

Extended Travel CV Axle Shaft, Front Left
⚙️ 36 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$256.27Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Extended Travel CV Axle Shaft, Front Left
🚗Fitment: Chevrolet and GMC, K1500, Blazer, K1500 Suburban, and Yukon
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all CV Axle Shaft options

Overview of TrakMotive Extended Travel CV Axle Shaft GM-8030XTT

The TrakMotive Extended Travel CV Axle Shaft GM-8030XTT is engineered for Chevrolet and GMC vehicles, including Blazer, K1500, K1500 Suburban, and Yukon models. Designed to meet the demands of extended travel suspension setups, this CV axle shaft ensures reliable driveline performance and durability.

  • Compatible with Chevrolet Blazer, GMC K1500, K1500 Suburban, and Yukon
  • Includes ABS tone ring with 55 toothed ABS ring teeth
  • Premium grade construction for enhanced durability
  • Comes with a self-locking hex axle nut (M24x2 thread size)
  • Thermoplastic boots on both inboard and outboard joints for improved protection
  • Overall compressed length of 21.06 inches (535 mm)
  • Outboard joint with 33 splines and conventional joint type
  • Inboard flange joint with bolt-on connection and 6 bolt holes

Detailed Product Description

The GM-8030XTT CV axle shaft from TrakMotive's Extended Travel CV Axle Shaft line is specifically designed for vehicles requiring longer axle shafts due to suspension lift or extended travel modifications. This part features a 55-tooth ABS tone ring that is included and integrated with a toothed ABS ring type, ensuring compatibility with factory ABS systems. The axle nut is a self-locking hex type with a 36 mm socket size, 0.85 inch (22 mm) height, and 1.64 inch (42 mm) length, providing secure fastening and ease of installation.

Both the inboard and outboard joints use thermoplastic boots to resist wear and environmental damage. The inboard joint is a flange type with a bolt-on shaft connection style and six bolt holes, while the outboard joint is conventional with a spline connection featuring 33 splines. The overall compressed length of 21.06 inches (535 mm) accommodates extended travel suspension setups commonly found on Chevrolet Blazer, GMC K1500, K1500 Suburban, and Yukon models.

About the Extended Travel CV Axle Shaft Product Line

TrakMotive's Extended Travel CV Axle Shaft product line is designed to address the needs of lifted or modified vehicles that require longer axle shafts to maintain proper driveline geometry. This line provides premium-grade components engineered to withstand the additional stresses of extended suspension travel, ensuring reliable performance and compatibility with ABS systems. The GM-8030XTT is a part of this line, offering a precise fit and durable construction for select Chevrolet and GMC trucks and SUVs.

Common Applications and Problem Solving

  • Replacement for worn or damaged CV axle shafts on lifted Chevrolet Blazer and GMC K1500 models
  • Upgrading to accommodate extended travel suspension setups
  • Resolving ABS sensor issues related to damaged or missing tone rings
  • Fixing axle nut loosening problems with included self-locking hex nut
  • Preventing premature joint boot failure with durable thermoplastic materials

Installation Notes and Tips

  • Verify vehicle compatibility with Chevrolet Blazer, GMC K1500, K1500 Suburban, or Yukon before installation
  • Use a 36 mm socket for axle nut installation and torque to manufacturer specifications
  • Inspect ABS tone ring and sensor alignment during installation to ensure proper ABS function
  • Check boot seals for proper fit to prevent contamination and extend joint life
  • Ensure all six inboard joint bolts are securely fastened to the flange connection

Quality Assurance and Warranty

The TrakMotive GM-8030XTT CV axle shaft is manufactured to premium grade standards, ensuring durability and reliable performance under extended travel conditions. The part includes a self-locking axle nut and ABS tone ring to maintain factory safety and drivability features. While specific warranty details are not provided, TrakMotive products typically meet or exceed OEM quality requirements for driveline components.

This part fits 36 vehicles. Search below:

YearMakeModelDrive TypePositionNotes
1997ChevroletK15004WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1997ChevroletK15004WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1997GMCK15004WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1997GMCK15004WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1996ChevroletK15004WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1996ChevroletK15004WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1996GMCK15004WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1996GMCK15004WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1995ChevroletK15004WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1995ChevroletK15004WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1995GMCK15004WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1995GMCK15004WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1994ChevroletBlazer4WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1994ChevroletBlazer4WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1994ChevroletK1500 Suburban4WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1994ChevroletK1500 Suburban4WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1994GMCK1500 Suburban4WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1994GMCK1500 Suburban4WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1994GMCYukon4WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1994GMCYukon4WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1993ChevroletBlazer4WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1993ChevroletBlazer4WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1993ChevroletK1500 Suburban4WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1993ChevroletK1500 Suburban4WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1993GMCK1500 Suburban4WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1993GMCK1500 Suburban4WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1993GMCYukon4WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1993GMCYukon4WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1992ChevroletBlazer4WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1992ChevroletBlazer4WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1992ChevroletK1500 Suburban4WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1992ChevroletK1500 Suburban4WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1992GMCK1500 Suburban4WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1992GMCK1500 Suburban4WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1992GMCYukon4WDFront RightFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft
1992GMCYukon4WDFront LeftFor Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
