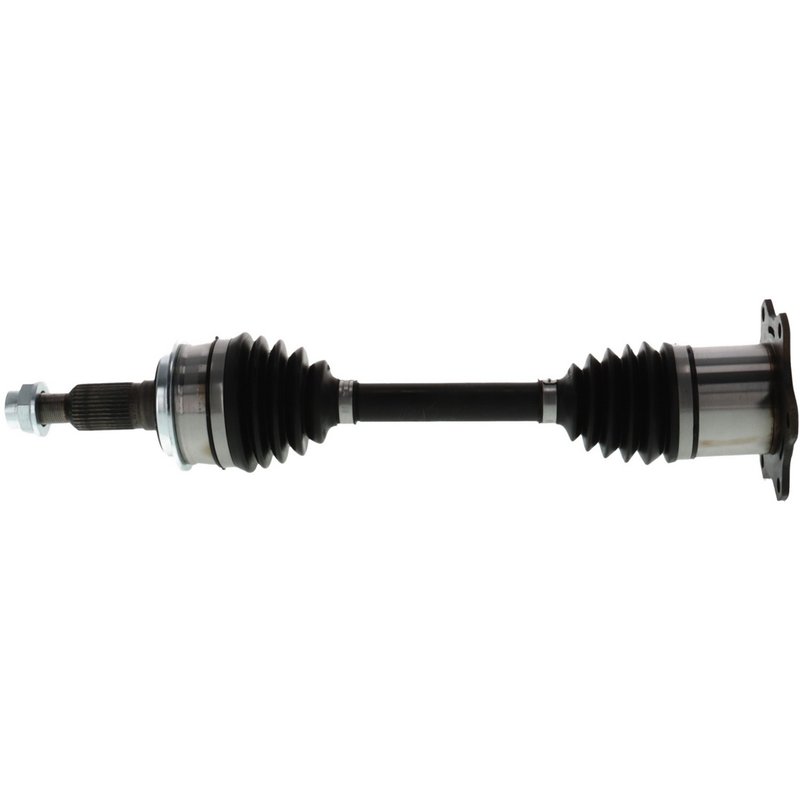

TrakMotive GM-8033HDX CV Axle Shaft - Front

OE Quality 60-Day Returns

Extreme Climate CV Axle Shaft

TrakMotive GM-8033HDX CV Axle Shaft - Front

Brand	TrakMotive GM-8033HDX
Position	Front
ABS Ring Tooth Count	0
ABS Tone Ring Included	No
Axle Nut Head Type	Hex
Axle Nut Height (in)	.85
Axle Nut Height (mm)	22
Axle Nut Hex Size (in)	1.42
Axle Nut Hex Size (mm)	36
Axle Nut Included	Yes
Axle Nut Length (in)	1.64
Axle Nut Length (mm)	42
Axle Nut Locking Type	Self-lock
Axle Nut Socket Size	36
Axle Nut Thread Size	M24x1.5
Grade Type	Premium
Inboard Joint Boot Material	Thermoplastic
Inboard Joint Type	Flange
Inboard Shaft Connection Style	Flange
Number Of Bolt Holes	0
Number Of Inboard Joint Bolt Holes	0
Number Of Inboard Shaft Bolts	0
Number Of Inboard Splines	0
Number Of Outboard Joint Bolt Holes	0
Number Of Outboard Shaft Bolts	0
Number Of Outboard Splines	33
Outboard Joint Boot Material	Thermoplastic
Outboard Joint Type	Conventional
Outboard Shaft Connection Style	Spline
Overall Compressed Length (in)	21.18
Overall Compressed Length (mm)	538
Product line	Extreme Climate CV Axle Shaft
Fits	Cadillac, Chevrolet, and GMC · 133 vehicles

Extreme Climate design. Premium 7023B grease and TPE boots help maintain OE performance in extreme temperatures.

OE performance. Built to match original operation with premium-grade CV axle construction.

Flange connection. Flange-style inboard joint and spline shaft connection for a straightforward replacement.

Cross-references Cardone New 66-1009HD, TrakMotive GM-8033HDX and NCV10142XD for the same application. See all 3.

$134.32Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all CV Axle Shaft options

Extreme Climate Front CV Axle Shaft

Restore front driveline performance with the TrakMotive Extreme Climate CV Axle Shaft GM-8033HDX. This premium replacement is built for Chevrolet Silverado 1500, GMC Sierra 1500, Cadillac Escalade, Tahoe, Yukon, and related 4x4 applications that need dependable front axle operation in demanding temperatures.

The Extreme Climate line uses premium 7023B grease and thermoplastic boots engineered to maintain OE-level performance in temperatures from -50°C to +50°C. For GM trucks and SUVs with front CV axle wear, GM-8033HDX provides a direct-fit driveline solution with the correct spline count, flange-style inboard connection, and included axle nut.

Key Features

TrakMotive Extreme Climate CV Axle Shaft, part number GM-8033HDX
Premium grade construction for front driveline service
7023B grease formulated for extreme hot and cold conditions
Thermoplastic boots on both joints for OE-style sealing
33 outboard splines and flange-style inboard joint connection
Includes axle nut with M24x1.5 thread, 36 mm hex size, and self-lock design
No ABS tone ring included

Detailed Description

GM-8033HDX is a front CV axle shaft engineered for a wide range of GM full-size trucks and SUVs, including 1999-2006 Chevrolet Silverado 1500, 1999-2006 GMC Sierra 1500, 2001-2006 Chevrolet Tahoe, 1995-2006 GMC Yukon, and 2002-2006 Cadillac Escalade applications. It also covers select K1500 and K2500 models, plus 2007 Chevrolet Silverado 1500 Classic and 2007 GMC Sierra 1500 Classic. This part cross-references Cardone New 66-1009HD and NCV10142XD for the same application.

The Extreme Climate product line focuses on maintaining consistent joint movement and boot integrity under severe temperature swings. That makes this TrakMotive CV axle shaft a practical choice for GM front axle service where torn boots, vibration, clicking, or driveline noise have affected performance.

What It Helps Address

Clicking or popping during turns from worn CV joints
Vibration or shudder from a damaged front axle shaft
Grease leakage caused by cracked or split boots
Noise from worn splines or joint wear in front driveline service
Loss of smooth front-wheel drive operation on GM trucks and SUVs

Installation Notes and Tips

Verify axle length, spline count, and flange-style inboard connection before installation. GM-8033HDX measures 21.18 inches compressed length and uses a 36 mm axle nut. Follow the vehicle service procedure for torque specifications and inspect related components such as hub bearings, seals, and suspension hardware during replacement. For listed applications, always replace in pairs when servicing the front axle assembly.

Quality Assurance

TrakMotive positions the Extreme Climate CV Axle Shaft line for OE-style performance in severe temperature conditions, using premium grease and thermoplastic boot materials selected for durability and consistent operation.

This part fits 133 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Submodel	Drive Type	Fuel Type	Position	Notes
2007	Chevrolet	Silverado 1500 Classic	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2007	GMC	Sierra 1500 Classic	Denali	AWD	—	Front	For 2007 Model Year with 99-06 Body Style with Separate headlight and turn signal lens; Extreme Climate CV Axle Shaft
2006	Cadillac	Escalade	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2006	Cadillac	Escalade ESV	—	—	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2006	Cadillac	Escalade EXT	—	—	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2006	Chevrolet	Avalanche 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2006	Chevrolet	Silverado 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2006	Chevrolet	Suburban 1500	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2006	Chevrolet	Tahoe	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2006	GMC	Sierra 1500	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2006	GMC	Yukon	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2006	GMC	Yukon XL 1500	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2005	Cadillac	Escalade	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2005	Cadillac	Escalade ESV	—	—	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2005	Cadillac	Escalade EXT	—	—	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2005	Chevrolet	Avalanche 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2005	Chevrolet	Silverado 1500	SS	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2005	Chevrolet	Suburban 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2005	Chevrolet	Tahoe	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2005	GMC	Sierra 1500	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2005	GMC	Yukon	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2005	GMC	Yukon XL 1500	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2004	Cadillac	Escalade	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2004	Cadillac	Escalade ESV	—	—	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2004	Cadillac	Escalade EXT	—	—	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2004	Chevrolet	Avalanche 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2004	Chevrolet	Silverado 1500	SS	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2004	Chevrolet	Suburban 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2004	Chevrolet	Tahoe	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2004	GMC	Sierra 1500	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2004	GMC	Yukon	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2004	GMC	Yukon XL 1500	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2003	Cadillac	Escalade	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2003	Cadillac	Escalade ESV	—	—	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2003	Cadillac	Escalade EXT	—	—	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2003	Chevrolet	Avalanche 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2003	Chevrolet	Silverado 1500	SS	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2003	Chevrolet	Suburban 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2003	Chevrolet	Tahoe	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2003	GMC	Sierra 1500	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2003	GMC	Yukon	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2003	GMC	Yukon XL 1500	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2002	Cadillac	Escalade	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2002	Cadillac	Escalade EXT	—	—	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2002	Chevrolet	Avalanche 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2002	Chevrolet	Silverado 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2002	Chevrolet	Suburban 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2002	Chevrolet	Tahoe	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2002	GMC	Sierra 1500	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2002	GMC	Yukon	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2002	GMC	Yukon XL 1500	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2001	Chevrolet	Silverado 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2001	Chevrolet	Suburban 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2001	Chevrolet	Tahoe	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2001	GMC	Sierra 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2001	GMC	Yukon	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2001	GMC	Yukon XL 1500	—	AWD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2000	Cadillac	Escalade	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2000	Chevrolet	Silverado 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2000	Chevrolet	Suburban 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2000	Chevrolet	Tahoe	—	4WD	—	Front	Classic Style; Extreme Climate CV Axle Shaft
2000	GMC	Sierra 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2000	GMC	Yukon	Denali	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
2000	GMC	Yukon XL 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1999	Cadillac	Escalade	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1999	Chevrolet	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1999	Chevrolet	K1500 Suburban	—	4WD	GAS	Front	3.42 Axle Ratio; Extreme Climate CV Axle Shaft
1999	Chevrolet	Silverado 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1999	Chevrolet	Tahoe	—	4WD	GAS	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1999	GMC	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1999	GMC	K1500 Suburban	—	4WD	GAS	Front	7200 lb. GVW; Extreme Climate CV Axle Shaft
1999	GMC	Sierra 1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1999	GMC	Yukon	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1998	Chevrolet	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1998	Chevrolet	K1500 Suburban	—	4WD	GAS	Front	3.42 Axle Ratio; Extreme Climate CV Axle Shaft
1998	Chevrolet	K2500	—	4WD	GAS	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1998	Chevrolet	Tahoe	—	4WD	GAS	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1998	GMC	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1998	GMC	K1500 Suburban	—	4WD	GAS	Front	7200 lb. GVW; Extreme Climate CV Axle Shaft
1998	GMC	K2500	—	4WD	GAS	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1998	GMC	Yukon	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1997	Chevrolet	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1997	Chevrolet	K1500 Suburban	—	4WD	GAS	Front	3.42 Axle Ratio; Extreme Climate CV Axle Shaft
1997	Chevrolet	K2500	—	4WD	GAS	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1997	Chevrolet	Tahoe	—	4WD	GAS	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1997	GMC	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1997	GMC	K1500 Suburban	—	4WD	GAS	Front	7200 lb. GVW; Extreme Climate CV Axle Shaft
1997	GMC	K2500	—	4WD	GAS	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1997	GMC	Yukon	—	4WD	GAS	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1996	Chevrolet	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1996	Chevrolet	K1500 Suburban	—	4WD	GAS	Front	3.42 Axle Ratio; Extreme Climate CV Axle Shaft
1996	Chevrolet	K2500	—	4WD	GAS	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1996	Chevrolet	Tahoe	—	4WD	GAS	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1996	GMC	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1996	GMC	K1500 Suburban	—	4WD	GAS	Front	7200 lb. GVW; Extreme Climate CV Axle Shaft
1996	GMC	K2500	—	4WD	GAS	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1996	GMC	Yukon	—	4WD	GAS	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1995	Chevrolet	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1995	Chevrolet	K1500 Suburban	—	4WD	GAS	Front	3.42 Axle Ratio; Extreme Climate CV Axle Shaft
1995	Chevrolet	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1995	Chevrolet	Tahoe	—	4WD	GAS	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1995	GMC	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1995	GMC	K1500 Suburban	—	4WD	GAS	Front	7200 lb. GVW; Extreme Climate CV Axle Shaft
1995	GMC	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1995	GMC	Yukon	—	4WD	GAS	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1994	Chevrolet	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1994	Chevrolet	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1994	GMC	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1994	GMC	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1993	Chevrolet	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1993	Chevrolet	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1993	GMC	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1993	GMC	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1992	Chevrolet	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1992	Chevrolet	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1992	GMC	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1992	GMC	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1991	Chevrolet	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1991	Chevrolet	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1991	GMC	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1991	GMC	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1990	Chevrolet	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1990	Chevrolet	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1990	GMC	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1990	GMC	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1989	Chevrolet	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1989	Chevrolet	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1989	GMC	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1989	GMC	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1988	Chevrolet	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1988	Chevrolet	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
1988	GMC	K1500	—	4WD	—	Front	Always Replace in Pairs; Extreme Climate CV Axle Shaft
1988	GMC	K2500	—	4WD	GAS	Front	6 Lug Wheel; Extreme Climate CV Axle Shaft
No rows match your filter.

Directly replaces or cross-references 3 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Cardone New — 66-1009HDTrakMotive — GM-8033HDXNCV10142XD
