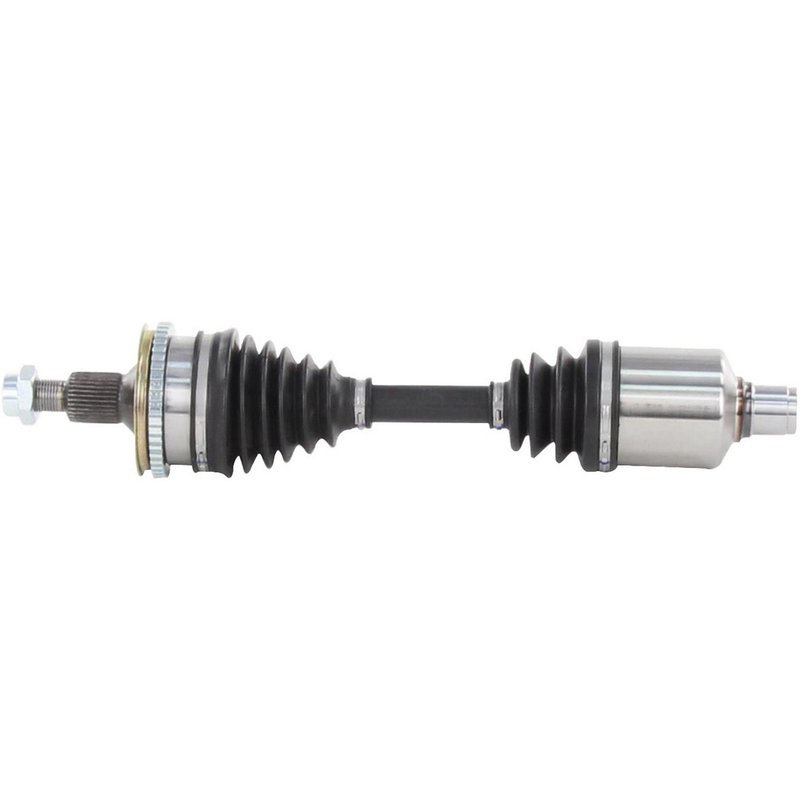

TrakMotive GM-8035 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive GM-8035 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 47 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 20.35 |
| Overall Compressed Length (mm) | 517 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet, Oldsmobile, Buick, and Pontiac · 71 vehicles |
OE-style replacement. New CV axle shaft for straightforward service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Supports ABS-equipped applications when specified.
Cross-references Anchor 8473, Cardone New 66-1112 and Cardone Reman 60-1036 for the same application. See all 30.
CV Axle Shaft for GM Applications
TrakMotive GM-8035 is a new CV axle shaft built for front-left and front-right applications on select Chevrolet, Buick, Oldsmobile, and Pontiac vehicles. It is engineered with the listed spline counts, axle nut specifications, and ABS tone ring details needed for direct replacement service on covered applications.
Key Features
- New CV axle shaft for driveline and axle repair
- Fits front left and front right positions on listed applications
- Inboard female joint design with 35 inboard splines
- Conventional outboard joint design with 33 outboard splines
- Neoprene boot material for joint protection
- ABS tone ring included; 47-tooth toothed ring
- Axle nut included with self-locking M24 x 2 thread, 36 mm hex size
- Overall compressed length: 20.35 in. (517 mm)
- Limited lifetime warranty
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Product Details
TrakMotive GM-8035 is a CV axle shaft for GM-platform front-wheel-drive service where the original axle uses a female inboard connection and a conventional outboard joint. The axle includes the ABS tone ring and axle nut details called out in the product data, helping match the required hardware and sensor interface on listed ABS applications. This part cross-references Cardone New 66-1112 and Dorman - HELP 92594 for the same application.
Fits 1990-1999 Chevrolet Lumina, front left; fits 1991-1992 Chevrolet Lumina, front right; fits 1995-1999 Chevrolet Monte Carlo, front left; fits 1988-1997 Oldsmobile Cutlass Supreme, front left; fits 1991-1992 Oldsmobile Cutlass Supreme, front right; fits 1988-1996 Buick Regal, front left; fits 1988-1996 Pontiac Grand Prix, front left; fits 1991-1992 Pontiac Grand Prix, front right.
Common Repair Uses
- Restores a worn or noisy CV axle shaft
- Addresses clicking during turns from damaged CV joints
- Replaces a torn boot or grease loss at the axle assembly
- Corrects vibration caused by axle wear or imbalance
- Supports ABS-equipped front axle service on listed vehicles
Installation Notes
Verify front-left or front-right placement before ordering, since fitment varies by vehicle and side. Confirm spline counts, axle nut thread size, and overall compressed length against the original axle before installation. Use the included axle nut only where the vehicle specification matches the listed M24 x 2, 36 mm hex hardware. For Chevrolet Lumina, Monte Carlo, Buick Regal, Oldsmobile Cutlass Supreme, and Pontiac Grand Prix applications, compare the ABS tone ring and joint style to the removed part.
Quality Assurance
TrakMotive backs this axle shaft with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production standards for driveline components.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 1999 | Chevrolet | Lumina | — | — | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1999 | Chevrolet | Monte Carlo | — | — | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1998 | Chevrolet | Lumina | — | — | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1998 | Chevrolet | Monte Carlo | — | — | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1997 | Chevrolet | Lumina | — | — | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1997 | Chevrolet | Monte Carlo | — | — | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1997 | Oldsmobile | Cutlass Supreme | — | — | — | — | Front Left | CV Axle Shaft |
| 1996 | Buick | Regal | — | — | — | — | Front Left | CV Axle Shaft |
| 1996 | Chevrolet | Lumina | — | — | — | — | Front Left | CV Axle Shaft |
| 1996 | Chevrolet | Monte Carlo | — | — | — | — | Front Left | CV Axle Shaft |
| 1996 | Oldsmobile | Cutlass Supreme | — | — | — | — | Front Left | CV Axle Shaft |
| 1996 | Pontiac | Grand Prix | — | — | — | — | Front Left | CV Axle Shaft |
| 1995 | Buick | Regal | — | — | — | — | Front Left | CV Axle Shaft |
| 1995 | Chevrolet | Lumina | — | — | — | — | Front Left | CV Axle Shaft |
| 1995 | Chevrolet | Monte Carlo | — | — | — | — | Front Left | CV Axle Shaft |
| 1995 | Oldsmobile | Cutlass Supreme | — | — | — | — | Front Left | CV Axle Shaft |
| 1995 | Pontiac | Grand Prix | — | — | — | — | Front Left | CV Axle Shaft |
| 1994 | Buick | Regal | — | — | — | — | Front Left | CV Axle Shaft |
| 1994 | Chevrolet | Lumina | — | — | — | — | Front Left | CV Axle Shaft |
| 1994 | Oldsmobile | Cutlass Supreme | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 1994 | Pontiac | Grand Prix | — | — | — | — | Front Left | CV Axle Shaft |
| 1993 | Buick | Regal | — | — | — | — | Front Left | CV Axle Shaft |
| 1993 | Chevrolet | Lumina | — | Manual | — | — | Front Left | CV Axle Shaft |
| 1993 | Chevrolet | Lumina | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 1993 | Oldsmobile | Cutlass Supreme | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 1993 | Pontiac | Grand Prix | — | Manual | — | — | Front Left | CV Axle Shaft |
| 1993 | Pontiac | Grand Prix | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 1992 | Buick | Regal | — | — | — | — | Front Left | CV Axle Shaft |
| 1992 | Chevrolet | Lumina | — | Manual | 3.4L | V6 | Front Right | CV Axle Shaft |
| 1992 | Chevrolet | Lumina | — | Manual | 3.4L | V6 | Front Left | CV Axle Shaft |
| 1992 | Chevrolet | Lumina | — | Automatic | 3.4L | V6 | Front Left | CV Axle Shaft |
| 1992 | Chevrolet | Lumina | — | Manual | 3.1L | V6 | Front Right | CV Axle Shaft |
| 1992 | Chevrolet | Lumina | — | Manual | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1992 | Chevrolet | Lumina | — | Automatic | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1992 | Chevrolet | Lumina | — | Manual | 2.5L | L4 | Front Right | CV Axle Shaft |
| 1992 | Chevrolet | Lumina | — | Manual | 2.5L | L4 | Front Left | CV Axle Shaft |
| 1992 | Oldsmobile | Cutlass Supreme | — | Manual | — | — | Front Right | CV Axle Shaft |
| 1992 | Oldsmobile | Cutlass Supreme | — | Manual | — | — | Front Left | CV Axle Shaft |
| 1992 | Oldsmobile | Cutlass Supreme | — | Automatic | 3.4L | V6 | Front Left | CV Axle Shaft |
| 1992 | Oldsmobile | Cutlass Supreme | — | Automatic | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1992 | Pontiac | Grand Prix | — | Manual | — | — | Front Right | CV Axle Shaft |
| 1992 | Pontiac | Grand Prix | — | Manual | — | — | Front Left | CV Axle Shaft |
| 1992 | Pontiac | Grand Prix | — | Automatic | 3.4L | V6 | Front Left | CV Axle Shaft |
| 1992 | Pontiac | Grand Prix | — | Automatic | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1991 | Buick | Regal | — | — | — | — | Front Left | CV Axle Shaft |
| 1991 | Chevrolet | Lumina | — | Manual | 3.4L | V6 | Front Right | CV Axle Shaft |
| 1991 | Chevrolet | Lumina | — | Manual | 3.4L | V6 | Front Left | CV Axle Shaft |
| 1991 | Chevrolet | Lumina | — | Automatic | 3.4L | V6 | Front Left | CV Axle Shaft |
| 1991 | Chevrolet | Lumina | — | Manual | 3.1L | V6 | Front Right | CV Axle Shaft |
| 1991 | Chevrolet | Lumina | — | Manual | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1991 | Chevrolet | Lumina | — | Automatic | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1991 | Chevrolet | Lumina | — | Manual | 2.5L | L4 | Front Right | CV Axle Shaft |
| 1991 | Chevrolet | Lumina | — | Manual | 2.5L | L4 | Front Left | CV Axle Shaft |
| 1991 | Oldsmobile | Cutlass Supreme | — | Manual | — | — | Front Right | CV Axle Shaft |
| 1991 | Oldsmobile | Cutlass Supreme | — | Manual | — | — | Front Left | CV Axle Shaft |
| 1991 | Oldsmobile | Cutlass Supreme | — | Automatic | 3.4L | V6 | Front Left | CV Axle Shaft |
| 1991 | Oldsmobile | Cutlass Supreme | — | Automatic | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1991 | Pontiac | Grand Prix | — | Manual | — | — | Front Right | CV Axle Shaft |
| 1991 | Pontiac | Grand Prix | — | Manual | — | — | Front Left | CV Axle Shaft |
| 1991 | Pontiac | Grand Prix | — | Automatic | 3.4L | V6 | Front Left | CV Axle Shaft |
| 1991 | Pontiac | Grand Prix | — | Automatic | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1990 | Buick | Regal | — | — | — | — | Front Left | CV Axle Shaft |
| 1990 | Chevrolet | Lumina | — | Automatic | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1990 | Oldsmobile | Cutlass Supreme | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 1990 | Pontiac | Grand Prix | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 1989 | Buick | Regal | — | — | — | — | Front Left | CV Axle Shaft |
| 1989 | Oldsmobile | Cutlass Supreme | FWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 1989 | Pontiac | Grand Prix | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 1988 | Buick | Regal | — | — | — | — | Front Left | CV Axle Shaft |
| 1988 | Oldsmobile | Cutlass Supreme | FWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 1988 | Pontiac | Grand Prix | — | Automatic | — | — | Front Left | CV Axle Shaft |
