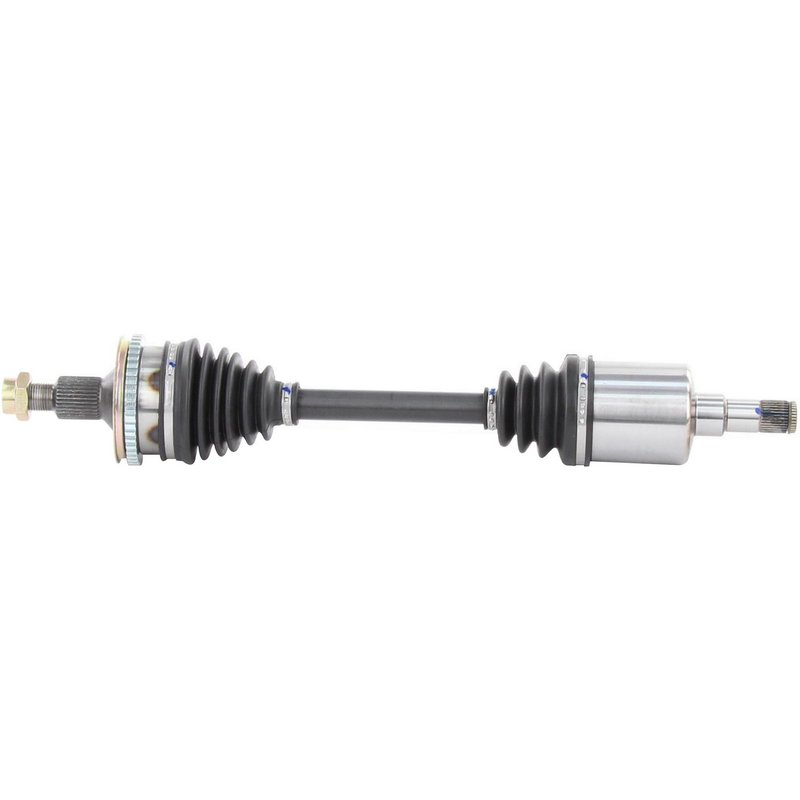

TrakMotive GM-8036 CV Axle Shaft - Front Right

Reliable CV Axle Shaft for Buick, Chevrolet, Oldsmobile, and Pontiac

The TrakMotive GM-8036 CV Axle Shaft is engineered to provide dependable driveline performance for select Buick, Chevrolet, Oldsmobile, and Pontiac models. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for vehicles like the Cutlass Supreme, Grand Prix, Lumina, Monte Carlo, and Regal.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8036
• ABS ring with 47 toothed teeth included
• Neoprene boot material for durability
• Self-locking hex axle nut included (M24*2 thread size)
• Overall compressed length: 23.54 inches (598 mm)
• Inboard joint type: Male with 34 splines
• Outboard joint type: Conventional with 33 splines

TrakMotive CV Axle Shaft Product Line Overview

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity and vehicle safety. This line includes shafts with precise spline counts and connection styles to match factory specifications. The GM-8036 model features a neoprene boot and a self-locking hex axle nut, ensuring secure installation and long-lasting performance in compatible GM vehicles.

Detailed Product Description and Specifications

The GM-8036 CV Axle Shaft is a new, direct replacement part designed for select GM vehicles including Buick Cutlass Supreme, Chevrolet Lumina, Oldsmobile Regal, Pontiac Grand Prix, and Monte Carlo. It features a 47-tooth ABS ring with a toothed design and includes the ABS tone ring for accurate wheel speed sensor readings. The axle nut is a self-locking hex type, measuring 36 mm across flats with a height of 21.5 mm and length of 41.5 mm, ensuring a secure fit. The neoprene boot material provides resistance to wear and environmental damage, protecting the joint from contaminants. The inboard joint is male type with 34 splines, while the outboard joint is conventional with 33 splines. The overall compressed length of 23.54 inches (598 mm) matches OEM dimensions for proper driveline alignment.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on compatible Buick, Chevrolet, Oldsmobile, and Pontiac models
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included self-locking axle nut

Installation Notes and Tips

• Verify vehicle compatibility with Buick Cutlass Supreme, Chevrolet Lumina, Oldsmobile Regal, Pontiac Grand Prix, or Monte Carlo before installation
• Use proper torque specifications for the M24*2 self-locking axle nut to ensure safety and performance
• Inspect surrounding suspension and driveline components during installation for additional wear
• Ensure ABS sensor connections are properly aligned with the toothed ABS ring

Quality Assurance and Warranty Information

The TrakMotive GM-8036 CV Axle Shaft is manufactured to meet or exceed OEM standards for fit, form, and function. This new part undergoes quality inspections to ensure durability and reliable performance. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or supplier for exact warranty terms.
