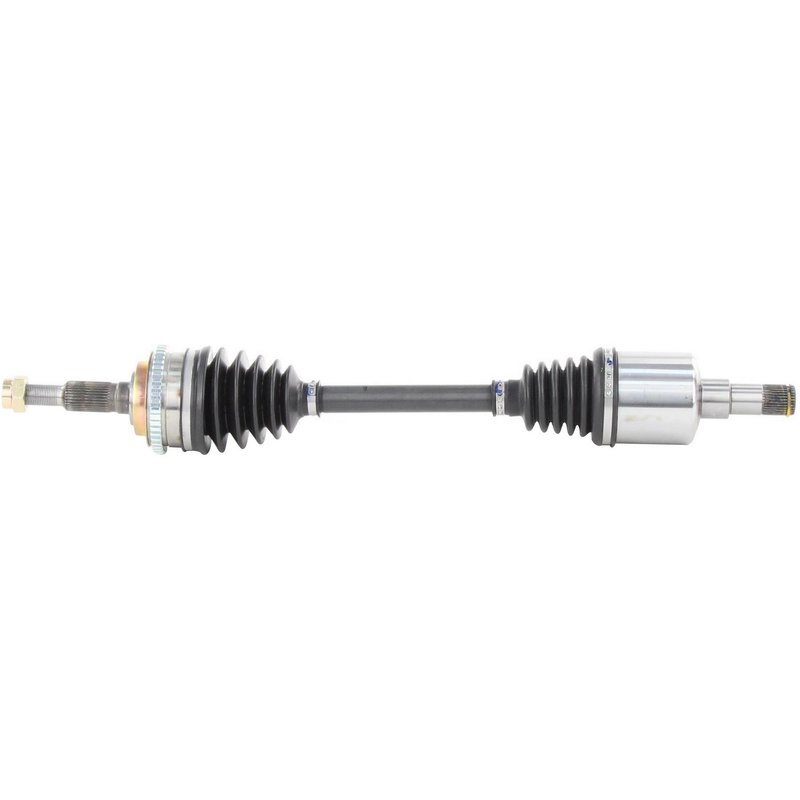

TrakMotive GM-8037 CV Axle Shaft - Front Right
| Brand | TrakMotive GM-8037 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 29.4 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.63 |
| Overall Compressed Length (mm) | 651 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet and Pontiac · 14 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Supports accurate wheel speed signal operation.
Cross-references Cardone New 66-1224, Cardone Reman 60-1224 and Dayco 95087 for the same application. See all 26.
CV Axle Shaft for Front Right Applications
TrakMotive GM-8037 is a new CV axle shaft built for front right service on select Chevrolet Cavalier and Pontiac Sunfire models. It is engineered with a 34-spline inboard connection, 33-spline outboard connection, and a 48-tooth toothed ABS ring for direct replacement in the listed applications.
Key Features
- New CV axle shaft for driveline repair
- Fits 1995-2001 Chevrolet Cavalier, front right
- Fits 1995-2001 Pontiac Sunfire, front right
- Male inboard shaft connection with conventional outboard joint
- Neoprene boot material for CV joint protection
- Includes axle nut with M20 x 1.5 thread size
- 48-tooth toothed ABS ring and tone ring included
- Overall compressed length: 25.63 in. (651 mm)
Product Details
The TrakMotive CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. GM-8037 is configured for front right use on 1995-2001 Chevrolet Cavalier and 1995-2001 Pontiac Sunfire models, with the spline counts, axle nut dimensions, and ABS tone ring details needed for the listed fitments. This part cross-references Cardone New 66-1224 and Cardone Reman 60-1224 for the same application. TrakMotive GM-8037 is a practical choice when replacing a worn or noisy axle on a Chevrolet Cavalier or Pontiac Sunfire front right position.
Common Repair Uses
- Clicking or popping from a worn outer CV joint
- Vibration during acceleration from axle wear
- Grease leakage from a damaged CV boot
- ABS warning concerns related to a damaged tone ring or axle sensor interface
- Excessive play in the front right driveline assembly
Installation Notes
Verify spline count, axle length, and ABS ring configuration before installation. This axle uses a hex-style axle nut with M20 x 1.5 thread size and a self-locking nut design. Confirm whether the vehicle is equipped for the included ABS ring setup before ordering, and compare the original axle to the replacement part for proper fitment on the front right side.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality processes for driveline components.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2001 | Chevrolet | Cavalier | Automatic | Front Right | CV Axle Shaft |
| 2001 | Pontiac | Sunfire | Automatic | Front Right | CV Axle Shaft |
| 2000 | Chevrolet | Cavalier | Automatic | Front Right | CV Axle Shaft |
| 2000 | Pontiac | Sunfire | Automatic | Front Right | CV Axle Shaft |
| 1999 | Chevrolet | Cavalier | Automatic | Front Right | CV Axle Shaft |
| 1999 | Pontiac | Sunfire | Automatic | Front Right | CV Axle Shaft |
| 1998 | Chevrolet | Cavalier | Automatic | Front Right | CV Axle Shaft |
| 1998 | Pontiac | Sunfire | Automatic | Front Right | CV Axle Shaft |
| 1997 | Chevrolet | Cavalier | Automatic | Front Right | CV Axle Shaft |
| 1997 | Pontiac | Sunfire | Automatic | Front Right | CV Axle Shaft |
| 1996 | Chevrolet | Cavalier | Automatic | Front Right | CV Axle Shaft |
| 1996 | Pontiac | Sunfire | Automatic | Front Right | CV Axle Shaft |
| 1995 | Chevrolet | Cavalier | Automatic | Front Right | CV Axle Shaft |
| 1995 | Pontiac | Sunfire | Automatic | Front Right | CV Axle Shaft |
