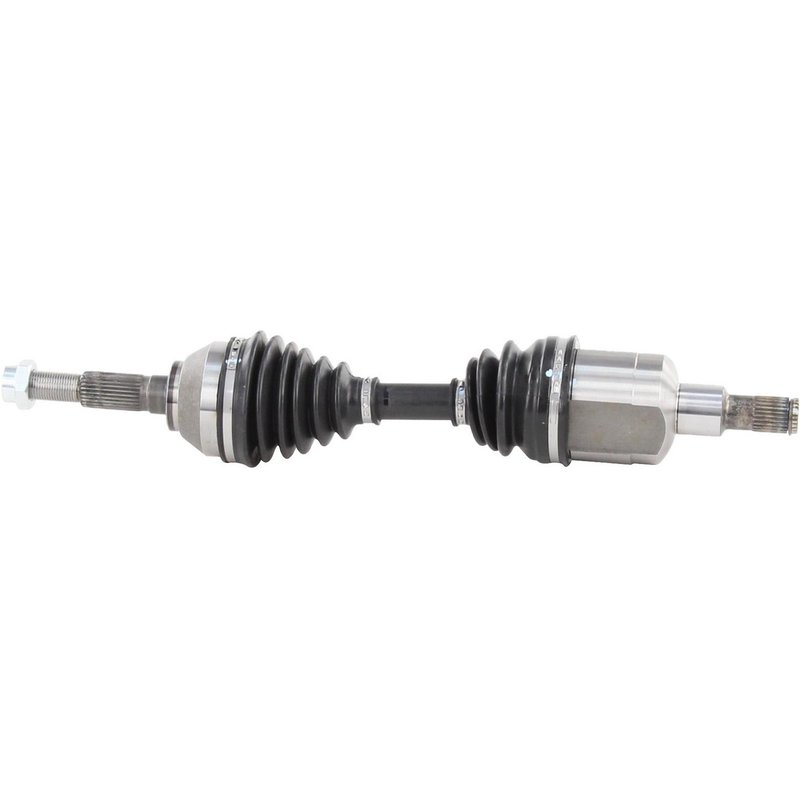

TrakMotive GM-8038 CV Axle Shaft - Front Left

Reliable CV Axle Shaft for Chevrolet, GMC, Isuzu, and Oldsmobile

The TrakMotive GM-8038 CV Axle Shaft is engineered to provide dependable driveline performance for select Chevrolet, GMC, Isuzu, and Oldsmobile models. Designed specifically for vehicles like the Blazer, Bravada, Hombre, Jimmy, S10, and Sonoma, this new axle shaft ensures proper fit and function.

Key Features of the TrakMotive GM-8038 CV Axle Shaft

• Brand Line: CV Axle Shaft, designed for driveline and axle applications
• Axle Nut Included with self-locking hex head design
• Axle Nut Specifications: 6/7 inch (21.5 mm) height, 1 3/7 inch (36 mm) hex size, 1 5/8 inch (41.5 mm) length
• Thread Size: M24*2 for secure installation
• Boot Material: Durable neoprene for enhanced protection
• Inboard Joint Type: Male with 26 splines
• Outboard Joint Type: Conventional with 27 splines
• Overall Compressed Length: 23.5 inches (597 mm)
• Compatible with Chevrolet Blazer, GMC Jimmy, Isuzu Hombre, Oldsmobile Bravada, Chevrolet S10, and GMC Sonoma

Detailed Description of the CV Axle Shaft GM-8038

The TrakMotive CV Axle Shaft GM-8038 is a new, precision-engineered component designed to replace worn or damaged axle shafts in select mid-size trucks and SUVs. This axle shaft features a neoprene boot that offers resistance to wear and environmental damage, helping to maintain joint integrity over time. The inboard joint uses a male connection style with 26 splines, while the outboard joint is conventional with 27 splines, ensuring compatibility with the specified vehicle models. The included self-locking hex axle nut (M24*2 thread size) simplifies installation and provides a secure fit. With an overall compressed length of 23.5 inches, this axle shaft meets OEM specifications for proper driveline alignment and performance.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Chevrolet Blazer and GMC Jimmy
• Restores driveline stability and reduces vibrations in Isuzu Hombre and Oldsmobile Bravada
• Eliminates clicking or popping noises during turns in Chevrolet S10 and GMC Sonoma
• Prevents grease leakage and joint contamination with durable neoprene boot
• Ensures proper torque retention with included self-locking axle nut

Installation Notes and Tips

• Verify vehicle compatibility with Chevrolet, GMC, Isuzu, and Oldsmobile models listed
• Use the included self-locking hex axle nut (M24*2 thread) for secure fastening
• Inspect surrounding components such as wheel bearings and seals during installation
• Ensure proper torque specifications are followed to avoid premature wear
• Check boot condition and joint movement after installation for smooth operation

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft GM-8038 is manufactured to meet or exceed OEM standards for durability and fitment. This new axle shaft undergoes rigorous quality control to ensure reliable performance in demanding driving conditions. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
