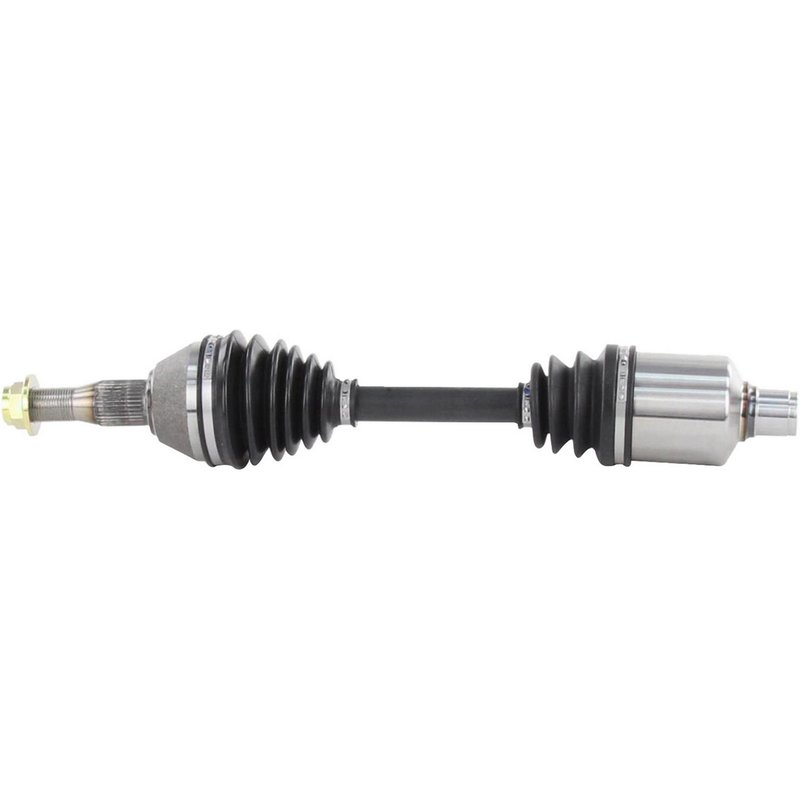

TrakMotive GM-8046 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8046 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 2/7 |
| Axle Nut Hex Size (mm) | 32.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.9 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.13 |
| Overall Compressed Length (mm) | 562 |
| Product line | CV Axle Shaft |
| Fits | Buick, Pontiac, Chevrolet, and Oldsmobile · 14 vehicles |
New CV axle shaft. Fresh replacement part for driveline service.
Neoprene boot material. Helps protect the joint from wear and contamination.
Includes axle nut. Conveniently supplied for a complete installation.
Cross-references Anchor 9573, Cardone New 66-1249 and Cardone Reman 60-1249 for the same application. See all 26.
TrakMotive GM-8046 CV Axle Shaft
TrakMotive GM-8046 is a new front left CV axle shaft built for specific GM and Pontiac applications that need a direct replacement driveline component. It is engineered with a neoprene boot, a self-lock axle nut, and the correct spline counts for the listed vehicles, including Buick Century, Pontiac Grand Prix, Oldsmobile Silhouette, Pontiac Trans Sport, Buick Regal, and Buick Riviera.
Key Features
- New CV axle shaft for front left applications
- Overall compressed length: 22.13 in. (562 mm)
- Inboard joint type: female; outboard joint type: conventional
- 35 inboard splines and 33 outboard splines
- Neoprene boot material for drivetrain protection
- Axle nut included with M27 x 2 thread, 32.8 mm hex size, and self-lock design
- No ABS tone ring included
- Cross-reference example: Cardone New 66-1249
Product Details
This TrakMotive CV axle shaft, part number GM-8046, is built for front left driveline service where the original axle has worn joints, damaged boots, or spline wear. It matches the listed fitments for 1995-1996 Buick Riviera, 1997 Buick Regal, 1997-1999 Buick Century, 1997-1999 Pontiac Grand Prix, 1997-1998 Oldsmobile Silhouette, and 1997-1998 Pontiac Trans Sport. TrakMotive identifies this axle as a new replacement component and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
What This Axle Shaft Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Torn boot conditions that can lead to grease loss and joint contamination
- Noise from a damaged or worn front left axle assembly
- Driveline issues on Buick Century, Pontiac Grand Prix, and related GM front-wheel-drive applications
Installation Notes and Tips
Verify spline count, compressed length, axle nut thread size, and ABS requirements before installation. This axle uses a female inboard connection and a conventional outboard connection, so matching the original configuration is important for proper fit. The included axle nut uses a 32.8 mm hex size and M27 x 2 thread. Confirm the vehicle is a front left application and compare the original axle to GM-8046 before assembly.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states that ABS axles fit non-ABS applications unless otherwise noted, and that its manufacturing is supported by ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1999 | Buick | Century | — | — | — | Front Left | CV Axle Shaft |
| 1999 | Pontiac | Grand Prix | — | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1998 | Buick | Century | — | — | — | Front Left | CV Axle Shaft |
| 1998 | Oldsmobile | Silhouette | FWD | — | — | Front Left | CV Axle Shaft |
| 1998 | Pontiac | Grand Prix | — | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1998 | Pontiac | Trans Sport | — | — | — | Front Left | CV Axle Shaft |
| 1997 | Buick | Century | — | — | — | Front Left | CV Axle Shaft |
| 1997 | Buick | Regal | — | — | — | Front Left | CV Axle Shaft |
| 1997 | Oldsmobile | Silhouette | FWD | — | — | Front Left | CV Axle Shaft |
| 1997 | Pontiac | Grand Prix | — | 3.8L | V6 | Front Left | CV Axle Shaft |
| 1997 | Pontiac | Grand Prix | — | 3.1L | V6 | Front Left | CV Axle Shaft |
| 1997 | Pontiac | Trans Sport | — | — | — | Front Left | CV Axle Shaft |
| 1996 | Buick | Riviera | — | — | — | Front Left | CV Axle Shaft |
| 1995 | Buick | Riviera | — | — | — | Front Left | CV Axle Shaft |
