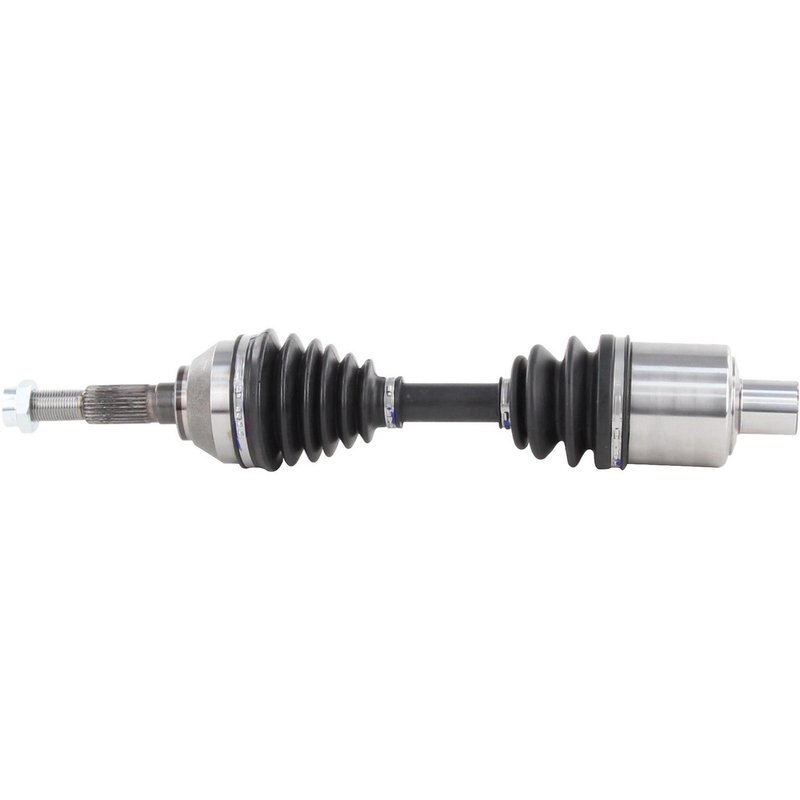

TrakMotive GM-8047 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft GM-8047

The TrakMotive CV Axle Shaft GM-8047 is designed for reliable driveline performance in select Chevrolet, GMC, Isuzu, and Oldsmobile vehicles. This new CV axle shaft is engineered to meet OEM specifications, ensuring proper fit and function for models like the Chevrolet Blazer, GMC Jimmy, and Isuzu Hombre.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8047
• Axle Nut Included with Self-locking Hex Head
• Boot Material: Durable Neoprene
• Inboard Joint Type: Female with 26 Splines
• Outboard Joint Type: Conventional with 27 Splines
• Overall Compressed Length: 21.5 inches (546 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components that maintain driveline integrity and vehicle safety. The GM-8047 model is part of this line, offering a new axle shaft designed to replace worn or damaged components in compatible vehicles. This line emphasizes precise fitment and durable materials such as neoprene boots to protect joints from contaminants and wear.

Technical Specifications and Features

The GM-8047 CV axle shaft includes a self-locking axle nut with a hex head measuring 36 mm (1 3/7 inches) across flats and a height of 21.5 mm (6/7 inches). The axle nut length is 41.5 mm (1 5/8 inches), and the thread size is M24x2. The shaft features a female inboard joint with 26 splines and a conventional outboard joint with 27 splines, ensuring compatibility with the specified vehicle models. The neoprene boot material provides resistance to environmental factors, extending the life of the CV joint.

Compatible Vehicles and Applications

• Chevrolet Blazer
• GMC Jimmy
• Isuzu Hombre
• Chevrolet S10
• GMC Sonoma
• Oldsmobile Bravada

This CV axle shaft is intended for use in driveline repairs where the original axle shaft is worn, damaged, or leaking. It restores proper power transfer from the transmission to the wheels, maintaining vehicle handling and safety.

Common Issues Addressed by GM-8047 CV Axle Shaft

• Eliminates clicking or popping noises during turns caused by worn CV joints
• Resolves vibration or shuddering at acceleration due to damaged axle shafts
• Prevents grease leaks from torn or cracked CV boots
• Restores driveline stability and smooth power delivery
• Corrects axle shaft play or looseness affecting steering and control

Installation Notes and Tips

Installation of the TrakMotive GM-8047 CV axle shaft requires proper torque of the included self-locking axle nut to manufacturer specifications. Ensure the neoprene boot is properly seated to prevent contamination. Verify spline engagement on both inboard and outboard joints for secure fitment. It is recommended to inspect related suspension and driveline components during installation for overall system integrity.

Quality Assurance and Warranty

The GM-8047 CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive provides quality assurance through rigorous manufacturing controls. Please refer to TrakMotive’s warranty policy for specific coverage details.
