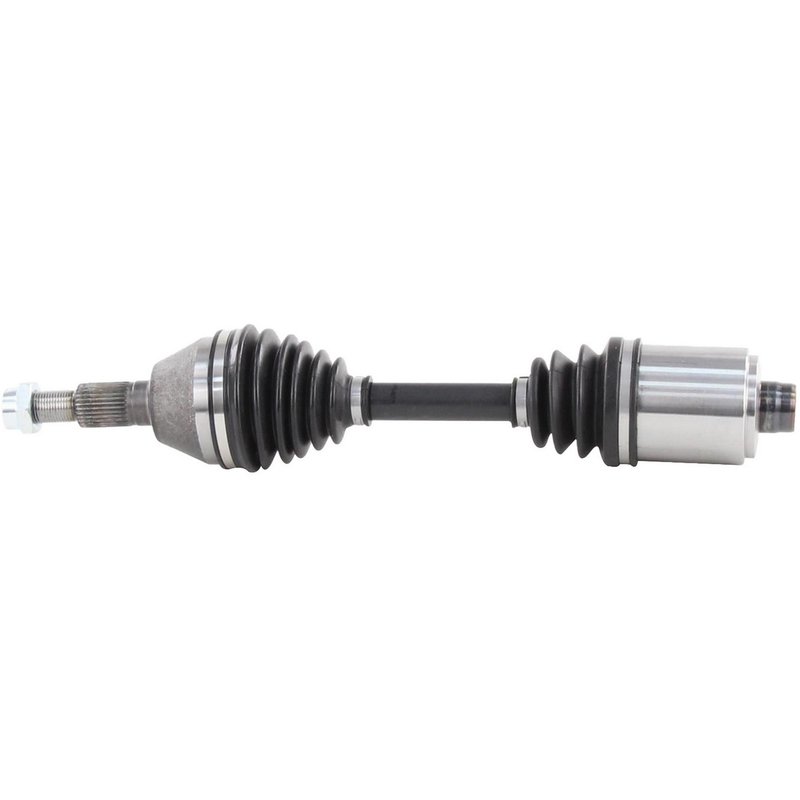

TrakMotive GM-8048 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive GM-8048 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 21.06 |
| Overall Compressed Length (mm) | 535 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet, Pontiac, and Oldsmobile · 56 vehicles |
OE-style replacement. New CV axle shaft with a self-locking axle nut included.
Neoprene boot. Helps protect the joint from dirt and moisture.
ISO certified. Built by a company certified to ISO 9001 and TS 16949.
Cross-references Anchor 9465, Cardone Reman 60-1243 and Dorman - HELP 92596 for the same application. See all 28.
CV Axle Shaft for GM-8048 Applications
TrakMotive GM-8048 is a new CV axle shaft for front left and front right applications on select Chevrolet, Pontiac, and Oldsmobile vehicles. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint for direct driveline replacement on listed models.
This CV axle shaft is a fitment-based replacement for 1997-2005 Chevrolet Malibu, 1999-2005 Pontiac Grand Am, 1999-2004 Oldsmobile Alero, and 1997-1999 Oldsmobile Cutlass applications. TrakMotive GM-8048 also cross-references Cardone Reman 60-1243 for the same application.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: GM-8048
- New axle shaft construction
- Neoprene boot material
- Female inboard shaft connection
- Conventional outboard shaft connection
- 34 inboard splines and 30 outboard splines
- Axle nut included with self-lock design
- 36 mm axle nut hex size, M24 x 2 thread
- Overall compressed length: 21.06 in. (535 mm)
- No ABS tone ring included
Detailed Description
TrakMotive GM-8048 is a driveline CV axle shaft engineered for front axle service on select GM passenger cars. The shaft uses a female inboard joint and a conventional outboard joint, with a neoprene boot to protect the joint assembly. The included axle nut features a self-lock design and 36 mm hex size for the specified applications. TrakMotive identifies this part as a new component and notes ISO 9001:1007 and TS 16949:2009 certified company standards in its manufacturing background.
Use GM-8048 when replacing a worn or damaged front axle on Chevrolet Malibu, Chevrolet Classic, Pontiac Grand Am, Oldsmobile Alero, or Oldsmobile Cutlass models listed below. For 2004-2005 Chevrolet Classic, it fits both front right and front left positions. For 2005 Chevrolet Malibu, it fits VIN N (4th digit) vehicles at front right and front left. For 2004 Chevrolet Malibu, it fits Malibu Classic model applications only.
What This Part Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration or shudder under acceleration from axle wear
- Grease leakage from a damaged boot
- Noise from a failing front axle assembly
- Driveline issues on listed GM front-wheel-drive applications
Installation Notes and Tips
- Verify position before ordering: front right or front left.
- Confirm vehicle details for 2005 Chevrolet Malibu VIN N (4th digit) applications.
- Confirm 2004 Chevrolet Malibu fitment only for Malibu Classic model applications.
- Check spline count, axle nut thread size, and compressed length against the original part.
- Inspect seals, hub components, and related suspension parts during replacement.
- No ABS tone ring is included.
Quality Assurance
TrakMotive lists this CV axle shaft as a new replacement part and states that its manufacturing is backed by ISO 9001:1007 and TS 16949:2009 certified company standards. The manufacturer also provides a limited lifetime warranty.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2005 | Chevrolet | Classic | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2005 | Chevrolet | Classic | — | — | — | — | — | Front Left | CV Axle Shaft |
| 2005 | Chevrolet | Malibu | Maxx LT | — | — | — | — | Front Right | VIN N (4th Digit); CV Axle Shaft |
| 2005 | Chevrolet | Malibu | Maxx LT | — | — | — | — | Front Left | VIN N (4th Digit); CV Axle Shaft |
| 2005 | Chevrolet | Malibu | Maxx LS | — | — | — | — | Front Right | VIN N (4th Digit); CV Axle Shaft |
| 2005 | Chevrolet | Malibu | Maxx LS | — | — | — | — | Front Left | VIN N (4th Digit); CV Axle Shaft |
| 2005 | Pontiac | Grand Am | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2005 | Pontiac | Grand Am | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2004 | Chevrolet | Classic | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2004 | Chevrolet | Classic | — | — | — | — | — | Front Left | CV Axle Shaft |
| 2004 | Chevrolet | Malibu | — | — | — | 2.2L | L4 | Front Right | Only fits Malibu Classic model; CV Axle Shaft |
| 2004 | Chevrolet | Malibu | — | — | — | 2.2L | L4 | Front Left | Only fits Malibu Classic model; CV Axle Shaft |
| 2004 | Oldsmobile | Alero | — | — | Automatic | 3.4L | V6 | Front Right | CV Axle Shaft |
| 2004 | Oldsmobile | Alero | — | — | Automatic | 3.4L | V6 | Front Left | CV Axle Shaft |
| 2004 | Pontiac | Grand Am | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2004 | Pontiac | Grand Am | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2003 | Chevrolet | Malibu | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2003 | Chevrolet | Malibu | — | — | — | — | — | Front Left | CV Axle Shaft |
| 2003 | Oldsmobile | Alero | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2003 | Oldsmobile | Alero | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2003 | Pontiac | Grand Am | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2003 | Pontiac | Grand Am | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2002 | Chevrolet | Malibu | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2002 | Chevrolet | Malibu | — | — | — | — | — | Front Left | CV Axle Shaft |
| 2002 | Oldsmobile | Alero | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2002 | Oldsmobile | Alero | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2002 | Pontiac | Grand Am | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2002 | Pontiac | Grand Am | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2001 | Chevrolet | Malibu | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2001 | Chevrolet | Malibu | — | — | — | — | — | Front Left | CV Axle Shaft |
| 2001 | Oldsmobile | Alero | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2001 | Oldsmobile | Alero | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2001 | Pontiac | Grand Am | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2001 | Pontiac | Grand Am | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2000 | Chevrolet | Malibu | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2000 | Chevrolet | Malibu | — | — | — | — | — | Front Left | CV Axle Shaft |
| 2000 | Oldsmobile | Alero | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2000 | Oldsmobile | Alero | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 2000 | Pontiac | Grand Am | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2000 | Pontiac | Grand Am | — | — | Automatic | — | — | Front Left | CV Axle Shaft |
| 1999 | Chevrolet | Malibu | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1999 | Chevrolet | Malibu | — | — | — | — | — | Front Left | CV Axle Shaft |
| 1999 | Oldsmobile | Alero | — | Coupe | — | — | — | Front Right | CV Axle Shaft |
| 1999 | Oldsmobile | Alero | — | Coupe | — | — | — | Front Left | CV Axle Shaft |
| 1999 | Oldsmobile | Cutlass | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1999 | Oldsmobile | Cutlass | — | — | — | — | — | Front Left | CV Axle Shaft |
| 1999 | Pontiac | Grand Am | — | Coupe | Automatic | — | — | Front Right | CV Axle Shaft |
| 1999 | Pontiac | Grand Am | — | Coupe | Automatic | — | — | Front Left | CV Axle Shaft |
| 1998 | Chevrolet | Malibu | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1998 | Chevrolet | Malibu | — | — | — | — | — | Front Left | CV Axle Shaft |
| 1998 | Oldsmobile | Cutlass | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1998 | Oldsmobile | Cutlass | — | — | — | — | — | Front Left | CV Axle Shaft |
| 1997 | Chevrolet | Malibu | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1997 | Chevrolet | Malibu | — | — | — | — | — | Front Left | CV Axle Shaft |
| 1997 | Oldsmobile | Cutlass | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1997 | Oldsmobile | Cutlass | — | — | — | — | — | Front Left | CV Axle Shaft |
