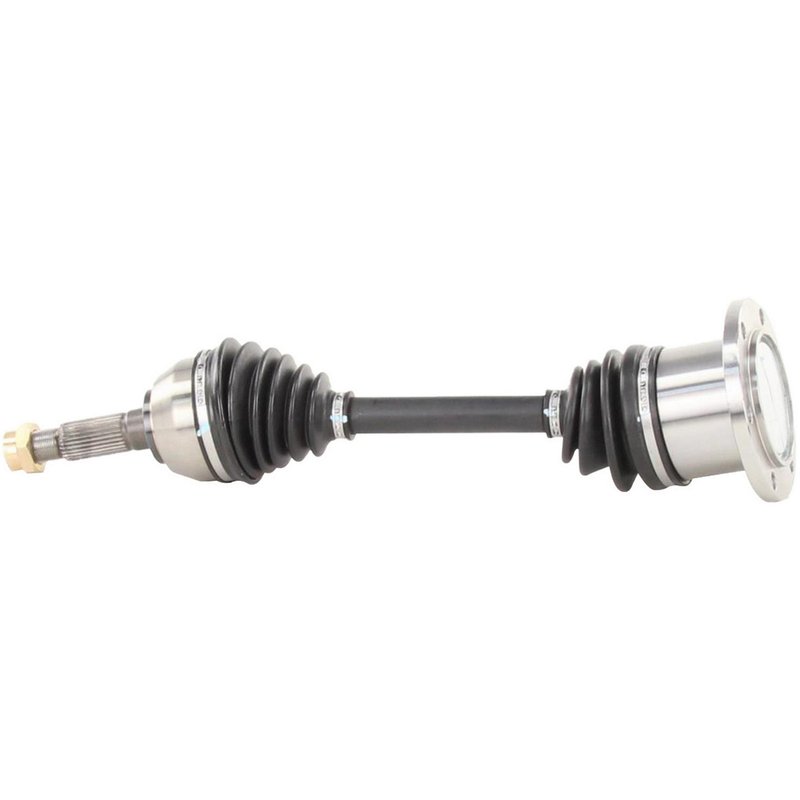

TrakMotive GM-8058 CV Axle Shaft - Front Left

Overview of TrakMotive GM-8058 CV Axle Shaft

The TrakMotive GM-8058 CV Axle Shaft is designed for reliable driveline performance in select Buick, Cadillac, and Oldsmobile vehicles. Engineered to meet OEM specifications, this new CV axle shaft ensures proper fit and function for models including the Eldorado, Riviera, Seville, and Toronado.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8058
• Compatible with Buick Eldorado, Cadillac Seville, Riviera, and Oldsmobile Toronado
• Neoprene boot material for durability
• Includes self-locking hex axle nut (M24*1.5 thread size)
• Inboard joint type: flange with flange shaft connection
• Outboard joint type: conventional with conventional shaft connection
• Overall compressed length: 20.71 inches (526 mm)
• 27 outboard splines for secure fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed to restore driveline integrity. This line emphasizes precise fitment and durable materials, such as neoprene boots and self-locking axle nuts, to maintain vehicle performance and safety. The GM-8058 is part of this line, offering a flange-type inboard joint and conventional outboard joint to match factory specifications for select GM vehicles.

Technical Specifications and Features

The GM-8058 CV Axle Shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The included axle nut is a self-locking hex type with a 36 mm hex size and a length of 41.5 mm (1 5/8 inches), ensuring secure installation. The inboard joint uses a flange connection style, while the outboard joint is conventional, both designed to fit the specified GM models accurately. The axle shaft has 27 outboard splines and an overall compressed length of 20.71 inches (526 mm), matching OEM dimensions for proper driveline alignment.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Buick Eldorado, Cadillac Seville, Riviera, and Oldsmobile Toronado
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage caused by torn or degraded CV boots
• Fixes driveline instability due to joint wear or axle shaft damage
• Restores proper axle nut torque retention with included self-locking nut

Installation Notes and Tips

• Ensure vehicle is securely lifted and supported before removal
• Use proper tools to remove and install the 36 mm hex axle nut
• Verify the flange and conventional joint connections align correctly with the vehicle’s hub and transmission
• Inspect surrounding components such as wheel bearings and seals during installation
• Torque axle nut to manufacturer specifications to maintain self-locking function

Quality Assurance and Warranty

The TrakMotive GM-8058 CV Axle Shaft is a new, not remanufactured, component manufactured to meet or exceed OEM standards. It includes a self-locking axle nut and durable neoprene boot to ensure long service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable driveline performance in compatible Buick, Cadillac, and Oldsmobile models.
