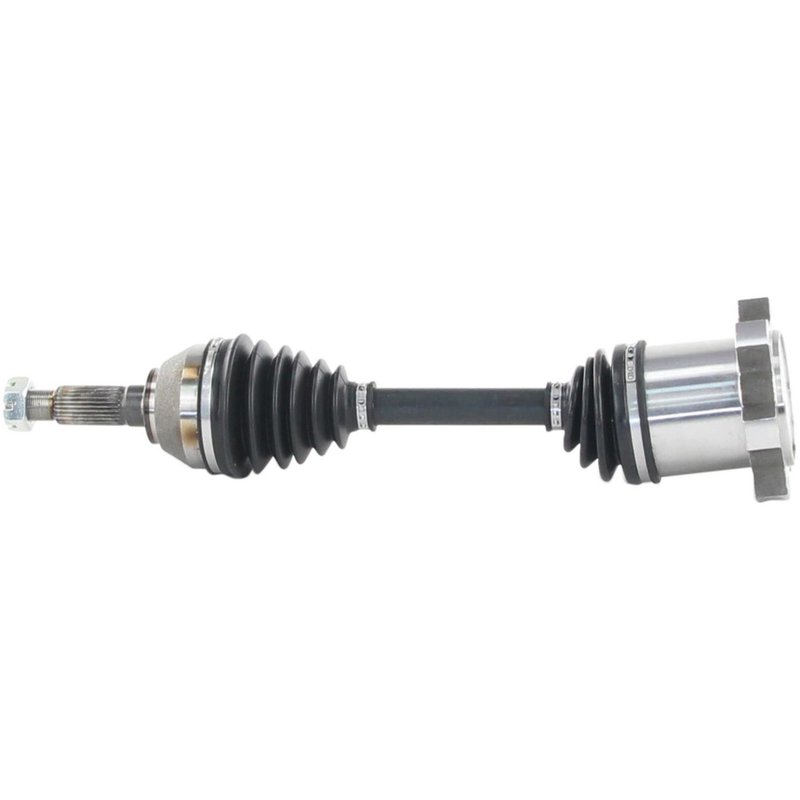

TrakMotive GM-8060 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft GM-8060

The TrakMotive CV Axle Shaft GM-8060 is designed for reliable driveline performance in select Buick, Cadillac, and Oldsmobile vehicles. Engineered to meet OEM specifications, this new CV axle shaft supports smooth power transfer and durability for models like the Eldorado, Riviera, Seville, and Toronado.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8060
• Compatible with Buick Eldorado, Cadillac Seville, Riviera, and Oldsmobile Toronado
• Neoprene boot material for enhanced durability
• Includes axle nut with cotter pin locking mechanism
• Inboard joint type: flange connection
• Outboard joint type: conventional
• Overall compressed length: 20.67 inches (525 mm)
• Axle nut specifications: hex head, 35.5 mm hex size, 17.5 mm height, M24*1.5 thread size
• Number of outboard splines: 27

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed to restore driveline integrity. This line emphasizes precise fitment and durable materials, such as neoprene boots and secure flange connections, to ensure consistent performance in compatible vehicles. The GM-8060 part exemplifies these standards with its detailed axle nut specifications and joint types tailored for specific GM models.

Technical Description and Features

The GM-8060 CV axle shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The inboard joint uses a flange connection style, providing a secure and stable fit to the transmission or differential. The outboard joint is conventional, designed to accommodate the 27-spline shaft connection. Included with the axle shaft is a hex head axle nut, measuring 35.5 mm across flats and 17.5 mm in height, with a cotter pin locking mechanism to prevent loosening during operation. The overall compressed length of 20.67 inches (525 mm) ensures proper fitment within the driveline assembly of the specified Buick, Cadillac, and Oldsmobile models.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Buick Eldorado, Cadillac Seville, Riviera, and Oldsmobile Toronado
• Addresses issues such as axle shaft vibration or clicking noises during turns
• Resolves grease leakage caused by torn or degraded CV boots
• Eliminates axle nut loosening problems with included cotter pin locking nut
• Restores driveline stability and smooth power transfer to the wheels

Installation Notes and Tips

• Verify vehicle compatibility with Buick Eldorado, Cadillac Seville, Riviera, or Oldsmobile Toronado before installation
• Use proper torque specifications for the M24*1.5 axle nut and secure with the cotter pin
• Inspect surrounding components such as wheel bearings and suspension parts during installation
• Ensure the neoprene boot is properly seated to prevent contamination and premature wear
• Professional installation is recommended to maintain driveline alignment and safety

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft GM-8060 is a new, not remanufactured, component manufactured to meet or exceed OEM standards. It includes a high-quality neoprene boot and a secure axle nut with cotter pin locking to ensure long-lasting performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable operation in compatible Buick, Cadillac, and Oldsmobile vehicles.
