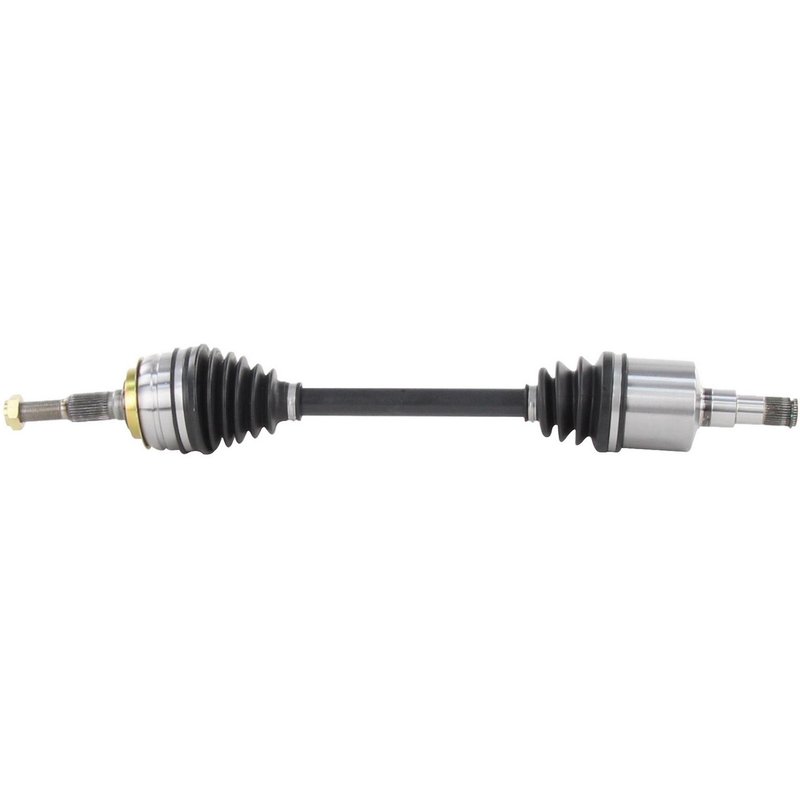

TrakMotive GM-8062 CV Axle Shaft - Front Right or Rear Right
| Brand | TrakMotive GM-8062 |
|---|---|
| Position | Front Right and Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/9 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.06 |
| Overall Compressed Length (mm) | 687.2 |
| Product line | CV Axle Shaft |
| Fits | Buick, Chevrolet, Oldsmobile, and Pontiac · 67 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable joint protection.
Includes axle nut. Self-locking hex nut is provided for a more complete install.
ISO certified. Built by a company certified to ISO 9001 and TS 16949 standards.
Cross-references AP Exhaust 8426, Cardone New 66-1005 and Cardone New 66-1012 for the same application. See all 25.
CV Axle Shaft for GM Applications
TrakMotive GM-8062 is a new CV axle shaft built for front right and rear right applications across select Buick, Chevrolet, Oldsmobile, and Pontiac vehicles. It is specified with a neoprene boot, a self-lock axle nut, and OE-style spline and joint configurations for direct replacement service.
Key Features
- New CV axle shaft for driveline and axle repair
- Fits front right and rear right positions on listed applications
- Neoprene boot material for flexible joint protection
- Includes axle nut with M20 x 1.5 thread, 30 mm hex size, and self-lock design
- 34 inboard splines and 33 outboard splines on listed applications
- Overall compressed length: 27.06 in. (687.2 mm)
- No ABS tone ring included
- TrakMotive GM-8062 cross-references Cardone New 66-1005 and 66-1012 for the same application
Product Details
This TrakMotive CV axle shaft is part of the CV Axle Shaft line and is built for service on older GM front-wheel-drive and rear-drive platforms. The GM-8062 uses a male inboard shaft connection, a conventional outboard joint, and the listed spline counts to match the original driveline geometry on supported vehicles. It is a direct-fit replacement for applications such as the Buick Century, Chevrolet Celebrity, Oldsmobile Cutlass Ciera, Pontiac 6000, Pontiac Sunbird, Pontiac Fiero, and related GM models.
Compatible vehicle coverage includes 1980-1989 Buick Century, 1980-1985 Buick Skylark, 1980-1989 Chevrolet Celebrity, 1980-1983 Chevrolet Citation, 1980-1984 Oldsmobile Omega, 1982-1989 Oldsmobile Cutlass Ciera, 1982-1989 Pontiac 6000, 1980-1984 Pontiac Phoenix, 1986-1989 Pontiac Sunbird, and 1984-1988 Pontiac Fiero. For fitment-specific service, this part is listed for the front right on most applications and the rear right on Pontiac Fiero.
What It Helps Repair
- Clicking or popping during turns caused by worn CV joints
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a deteriorated boot
- Noise under acceleration from excessive driveline play
- Axle fitment issues on GM front right or rear right applications
Installation Notes
Verify spline count, compressed length, axle nut thread size, and position before installation. This GM-8062 uses a hex axle nut with M20 x 1.5 threads and a self-lock design; confirm the hub and spindle dimensions match the vehicle listing, including the 20 mm outboard spindle note where specified. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive manufactures this axle shaft as a new replacement part in an ISO 9001:1007 and TS 16949:2009 certified facility. The GM-8062 is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | # Doors | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 1989 | Buick | Century | — | — | — | Automatic | 3.3L | V6 | Front Right | w/20mm Diameter Outboard Spindle; CV Axle Shaft |
| 1989 | Buick | Century | — | — | — | Automatic | 3.1L | V6 | Front Right | w/20mm Diameter Outboard Spindle; CV Axle Shaft |
| 1989 | Buick | Century | — | — | — | Automatic | 2.8L | V6 | Front Right | w/20mm Diameter Outboard Spindle; CV Axle Shaft |
| 1989 | Chevrolet | Celebrity | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1989 | Oldsmobile | Cutlass Ciera | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1989 | Oldsmobile | Cutlass Cruiser | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1989 | Pontiac | 6000 | — | — | FWD | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1989 | Pontiac | Grand Am | — | — | — | Manual | 2.0L | L4 | Front Right | CV Axle Shaft |
| 1989 | Pontiac | Sunbird | — | — | — | Manual | — | — | Front Right | CV Axle Shaft |
| 1988 | Buick | Century | — | — | — | Automatic | 3.8L | V6 | Front Right | w/20mm Diameter Outboard Spindle; CV Axle Shaft |
| 1988 | Buick | Century | Estate Wagon | — | — | Automatic | 2.8L | V6 | Front Right | w/20mm Diameter Outboard Spindle; CV Axle Shaft |
| 1988 | Chevrolet | Celebrity | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1988 | Oldsmobile | Cutlass Ciera | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1988 | Pontiac | 6000 | — | — | FWD | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1988 | Pontiac | Fiero | — | — | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1988 | Pontiac | Grand Am | — | — | — | Manual | 2.0L | L4 | Front Right | CV Axle Shaft |
| 1988 | Pontiac | Sunbird | — | — | — | Manual | — | — | Front Right | CV Axle Shaft |
| 1987 | Chevrolet | Celebrity | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1987 | Oldsmobile | Cutlass Ciera | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1987 | Pontiac | 6000 | — | — | FWD | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1987 | Pontiac | Fiero | — | — | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1987 | Pontiac | Sunbird | — | — | — | Manual | — | — | Front Right | CV Axle Shaft |
| 1986 | Chevrolet | Celebrity | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1986 | Oldsmobile | Cutlass Ciera | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1986 | Pontiac | 6000 | — | — | FWD | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1986 | Pontiac | Fiero | — | — | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1986 | Pontiac | Sunbird | — | 4 Door | — | Manual | — | — | Front Right | CV Axle Shaft |
| 1985 | Buick | Century | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1985 | Buick | Skylark | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1985 | Chevrolet | Celebrity | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1985 | Oldsmobile | Cutlass Ciera | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1985 | Pontiac | 6000 | — | — | FWD | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1985 | Pontiac | Fiero | — | — | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1984 | Buick | Century | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1984 | Buick | Skylark | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1984 | Chevrolet | Celebrity | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1984 | Oldsmobile | Cutlass Ciera | — | — | — | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1984 | Oldsmobile | Omega | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1984 | Pontiac | 6000 | — | — | FWD | Automatic | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1984 | Pontiac | Fiero | — | — | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1984 | Pontiac | Phoenix | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1983 | Buick | Century | — | — | — | — | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1983 | Buick | Skylark | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1983 | Chevrolet | Celebrity | — | — | — | — | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1983 | Chevrolet | Citation | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1983 | Oldsmobile | Cutlass Ciera | — | — | — | — | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1983 | Oldsmobile | Cutlass Cruiser | — | — | — | — | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1983 | Oldsmobile | Omega | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1983 | Pontiac | 6000 | — | — | FWD | — | — | — | Front Right | CV Axle Shaft |
| 1983 | Pontiac | Phoenix | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1982 | Buick | Century | — | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1982 | Buick | Skylark | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1982 | Chevrolet | Celebrity | — | — | — | — | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1982 | Chevrolet | Citation | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1982 | Oldsmobile | Cutlass Ciera | — | — | — | — | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1982 | Oldsmobile | Cutlass Cruiser | — | — | — | — | — | — | Front Right | W/33 Spline O.B. Joint; CV Axle Shaft |
| 1982 | Oldsmobile | Omega | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1982 | Pontiac | 6000 | — | — | FWD | — | — | — | Front Right | CV Axle Shaft |
| 1982 | Pontiac | Phoenix | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1981 | Buick | Skylark | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1981 | Chevrolet | Citation | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1981 | Oldsmobile | Omega | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1981 | Pontiac | Phoenix | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1980 | Buick | Skylark | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1980 | Chevrolet | Citation | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1980 | Oldsmobile | Omega | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 1980 | Pontiac | Phoenix | — | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
