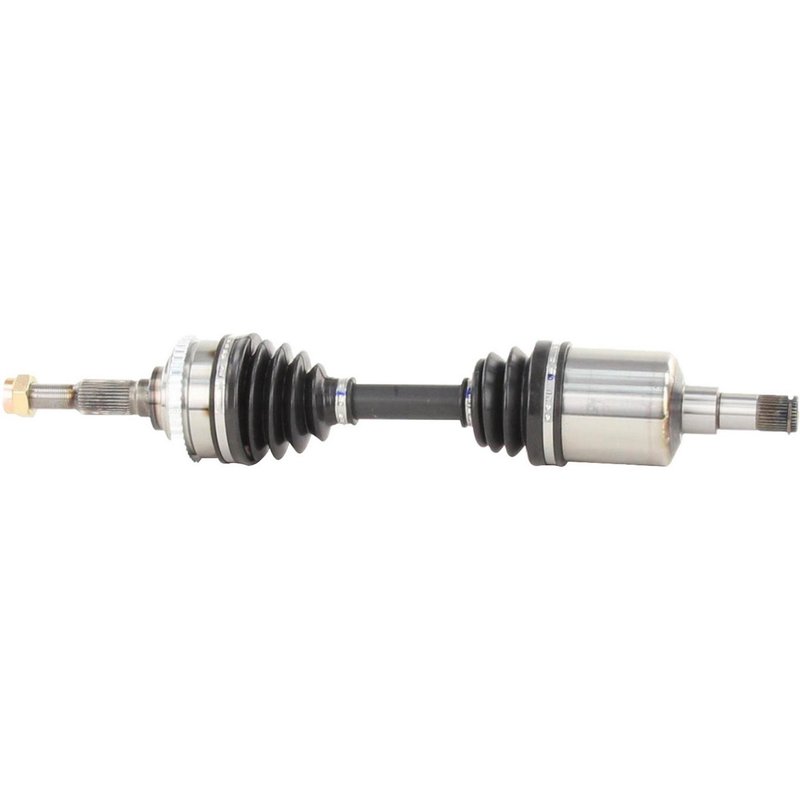

TrakMotive GM-8065 CV Axle Shaft - Front Right

Overview of TrakMotive GM-8065 CV Axle Shaft

The TrakMotive GM-8065 CV Axle Shaft is engineered for reliable driveline performance in select Buick, Chevrolet, Oldsmobile, and Pontiac vehicles. Designed specifically for models like the Achieva, Corsica, Grand Am, and Skylark, this new CV axle shaft ensures proper fit and function for your vehicle's front-wheel drive system.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8065
• Compatible with Buick Achieva, Chevrolet Corsica, Oldsmobile Cutlass, Pontiac Grand Am, and Skylark
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for durability and protection
• Self-locking hex axle nut included (M20*1.5 thread size)
• Overall compressed length: 21.44 inches (544.5 mm)
• Inboard joint type: Male with 34 splines; Outboard joint type: Conventional with 33 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This line emphasizes quality materials such as neoprene boots for enhanced resistance to wear and environmental factors. The GM-8065 model features a toothed ABS ring and a self-locking hex axle nut, ensuring secure installation and reliable ABS sensor performance. These components are designed to maintain proper torque and alignment in front-wheel drive systems.

Technical Specifications and Features

The GM-8065 CV Axle Shaft includes a 48-tooth ABS ring designed to work seamlessly with your vehicle's anti-lock braking system. The neoprene boot material provides flexibility and resistance to cracking or tearing under normal operating conditions. The axle nut is a self-locking hex type, measuring 29.4 mm across flats and 20 mm in height, with a thread size of M20*1.5, ensuring a secure fit. The inboard joint uses a male connection style with 34 splines, while the outboard joint is conventional with 33 splines. The overall compressed length of 21.44 inches (544.5 mm) matches OEM dimensions for proper fitment.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Buick Achieva and Chevrolet Corsica
• Restoring proper ABS sensor function with included toothed ABS tone ring
• Resolving axle vibration or clicking noises caused by joint wear
• Fixing torn or leaking CV boots to prevent grease loss and contamination
• Ensuring secure axle nut fitment with self-locking hex nut included

Installation Notes and Tips

• Verify vehicle compatibility with Buick Achieva, Chevrolet Corsica, Oldsmobile, or Pontiac models before installation
• Use proper torque specifications for the M20*1.5 self-locking axle nut to avoid loosening
• Inspect surrounding suspension and driveline components during installation for additional wear
• Ensure ABS sensor alignment with the 48-tooth ABS ring for accurate readings
• Lubricate splines and joints as recommended to maintain smooth operation

Quality Assurance and Warranty

The TrakMotive GM-8065 CV Axle Shaft is a new, remanufactured-quality component designed to meet or exceed OEM standards. It includes a neoprene boot for durability and a self-locking axle nut for secure installation. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliable performance in compatible Buick, Chevrolet, Oldsmobile, and Pontiac vehicles.
