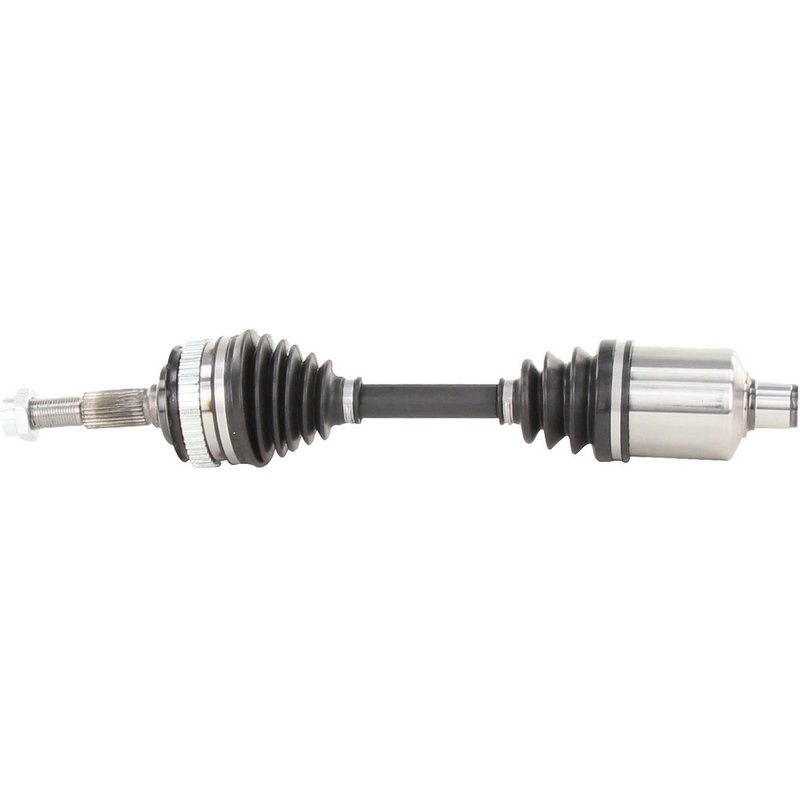

TrakMotive GM-8067 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft GM-8067

The TrakMotive CV Axle Shaft GM-8067 is engineered for reliable driveline performance in select Buick, Cadillac, Oldsmobile, and Pontiac vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for models including the Allante, Bonneville, DeVille, Eldorado, and more.

• Compatible with Buick, Cadillac, Oldsmobile, and Pontiac models
• Includes ABS tone ring with 47 toothed ring teeth
• Neoprene boot material for durability and protection
• Self-locking hex axle nut included (M24*2 thread size)
• Overall compressed length of 21.77 inches (553 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to restore driveline integrity. This line emphasizes precise fitment and durability, featuring components such as neoprene boots and ABS tone rings to maintain vehicle safety systems. The GM-8067 part exemplifies this approach with its comprehensive design tailored for specific GM vehicle applications.

Technical Specifications and Features

This CV axle shaft features a female inboard joint type with 35 splines and a conventional outboard joint with 27 splines, ensuring secure shaft connections. The included ABS tone ring has 47 teeth and a toothed design, compatible with ABS systems on applicable vehicles. The axle nut is a self-locking hex type, measuring 36 mm across flats and 41.5 mm in length, providing secure fastening. The neoprene boot material offers resistance to wear and environmental factors, extending the service life of the joint.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Buick LeSabre, Cadillac Seville, and Pontiac Riviera
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included self-locking axle nut

Installation Notes and Tips

When installing the TrakMotive GM-8067 CV axle shaft, verify compatibility with your specific vehicle model and year. Use proper torque specifications for the M24*2 self-locking axle nut to ensure secure fitment. Inspect the axle shaft splines and joints for damage before installation. The neoprene boot should be handled carefully to avoid tears during assembly. It is recommended to replace axle nuts with the included new hardware to maintain locking integrity.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft GM-8067 is a new, not remanufactured, component manufactured to meet or exceed OEM standards. It includes a self-locking axle nut and ABS tone ring to maintain vehicle safety and performance. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and fitment for the listed Buick, Cadillac, Oldsmobile, and Pontiac models.
