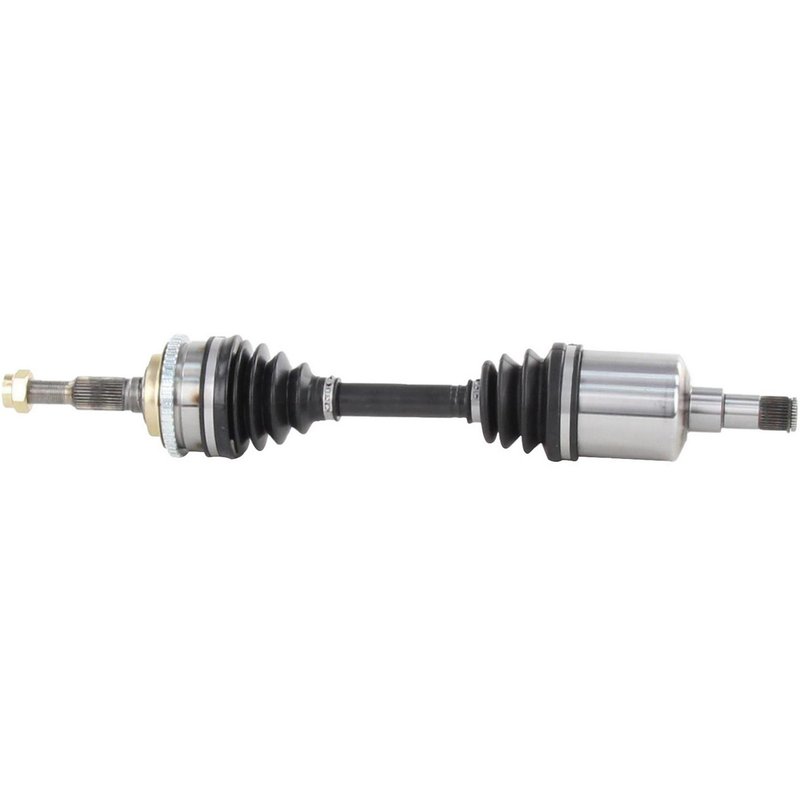

TrakMotive GM-8071 CV Axle Shaft - Front Left or Rear Left

Overview of TrakMotive GM-8071 CV Axle Shaft

The TrakMotive GM-8071 CV Axle Shaft is designed for reliable driveline performance in select Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac vehicles. Engineered to meet OEM specifications, this new CV axle shaft ensures proper fit and function for models including the Achieva, Cavalier, Cimarron, Corsica, Cutlass Calais, Fiero, Firenza, Grand Am, Skyhawk, Sunbird, and Tempest.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8071
• ABS Ring: 48-tooth toothed tone ring included
• Axle Nut: Hex head, self-locking, M20x1.5 thread size included
• Boot Material: Durable neoprene
• Inboard Joint: Male type with 34 splines
• Outboard Joint: Conventional type with 33 splines
• Overall Compressed Length: 22.64 inches (575 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to restore driveline integrity. This line emphasizes precise fitment and durability, featuring components such as neoprene boots for enhanced protection and self-locking axle nuts to maintain secure installation. The GM-8071 model is part of this line, engineered specifically for compatibility with various GM vehicles to ensure consistent performance and longevity.

Technical Specifications and Features

The GM-8071 CV Axle Shaft includes a 48-tooth ABS tone ring that is toothed and integrated for accurate wheel speed sensor readings. The axle nut is a hex head type, measuring 29.4 mm (1 1/6 inch) across flats, with a height of 20 mm (4/5 inch) and a length of 34 mm (1 1/3 inch). It features a self-locking mechanism to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint is a male type with 34 splines, while the outboard joint is conventional with 33 splines, ensuring proper connection and torque transfer. The overall compressed length of 22.64 inches (575 mm) matches OEM dimensions for direct replacement.

Compatible Vehicles and Applications

• Buick Achieva
• Cadillac Cimarron
• Chevrolet Cavalier, Corsica
• Oldsmobile Cutlass Calais, Firenza
• Pontiac Fiero, Grand Am, Skyhawk, Sunbird, Tempest

This CV axle shaft is intended for use in driveline repairs where the original axle shaft is worn, damaged, or failing.

Common Issues Addressed by GM-8071 CV Axle Shaft

• Vibration or shuddering during acceleration
• Clicking or popping noises when turning
• Grease leakage from torn or damaged boots
• ABS sensor errors due to faulty tone ring
• Loose or damaged axle nuts causing driveline instability

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the GM-8071 axle shaft matches the original part in length and spline count. Use the included self-locking hex axle nut (M20x1.5 thread) and torque to manufacturer specifications. Inspect the neoprene boot for proper seating to prevent contamination. Confirm ABS tone ring alignment for accurate sensor readings. Professional installation is recommended to maintain driveline safety and performance.

Quality Assurance and Warranty

The TrakMotive GM-8071 CV Axle Shaft is a new, not remanufactured, component manufactured to meet or exceed OEM standards. It includes a self-locking axle nut and a durable neoprene boot for extended service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment for the listed Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac models.
