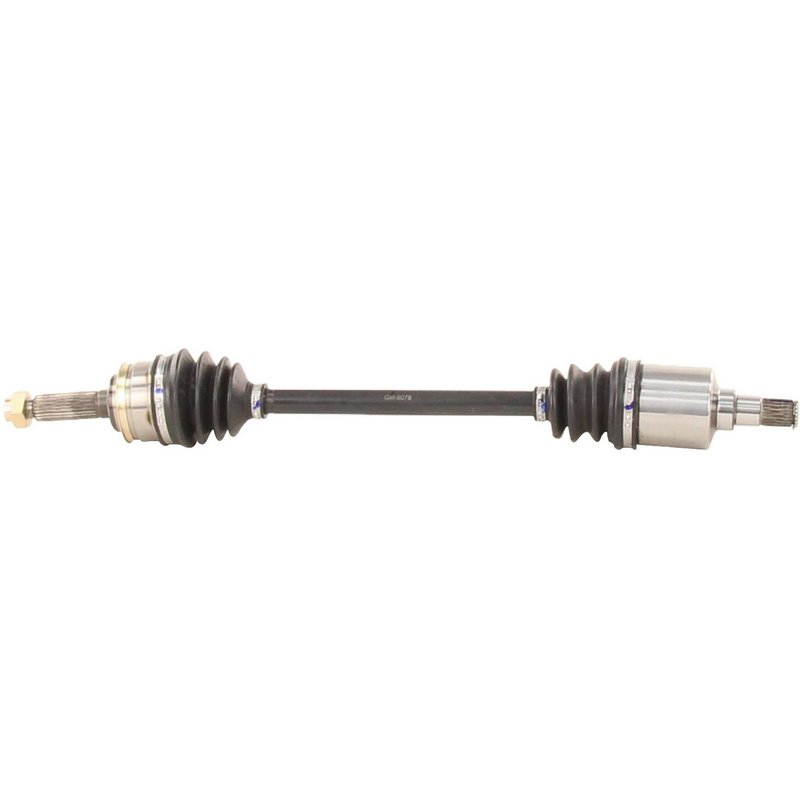

TrakMotive GM-8078 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft GM-8078

The TrakMotive CV Axle Shaft GM-8078 is designed specifically for Chevrolet Metro and Geo Sprint models. This new CV axle shaft provides reliable driveline performance with precise fitment and durable construction.

• Compatible with Chevrolet Metro and Geo Sprint vehicles
• Includes axle nut with hex head type for secure installation
• Neoprene boot material for enhanced durability and protection
• Overall compressed length of 24.84 inches (631 mm)
• Standard locking axle nut with M18*1.5 thread size
• Inboard joint type: Male with 22 splines
• Outboard joint type: Conventional with 23 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for specific vehicle applications. This line emphasizes precise fitment and reliable joint designs, such as the male inboard joint and conventional outboard joint found on the GM-8078. The use of neoprene boots helps protect the joints from contaminants, extending service life.

Technical Specifications and Features

The GM-8078 CV axle shaft features a neoprene boot that resists wear and environmental damage. The axle nut included is a hex head type measuring 3/4 inch (19 mm) in height and 1 1/6 inch (30 mm) across the flats, with a length of 1 1/3 inch (34.6 mm). It uses a standard locking mechanism and an M18*1.5 thread size to ensure secure fastening. The inboard shaft connection is male with 22 splines, while the outboard connection is conventional with 23 splines. The overall compressed length of 24.84 inches (631 mm) ensures proper fitment within the driveline assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Chevrolet Metro and Geo Sprint
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage caused by torn or degraded CV boots
• Restores driveline stability and smooth power transfer to the wheels
• Prevents premature joint failure due to contamination or wear

Installation Notes and Tips

When installing the TrakMotive GM-8078 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications using the included hex head nut. Inspect the CV boots for proper seating and avoid overextending the shaft during installation. Verify spline engagement on both inboard and outboard joints to prevent driveline issues. It is recommended to replace axle nuts with the new ones provided to maintain secure locking.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. The neoprene boot material and standard locking axle nut contribute to long-term durability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Chevrolet Metro and Geo Sprint vehicles.
