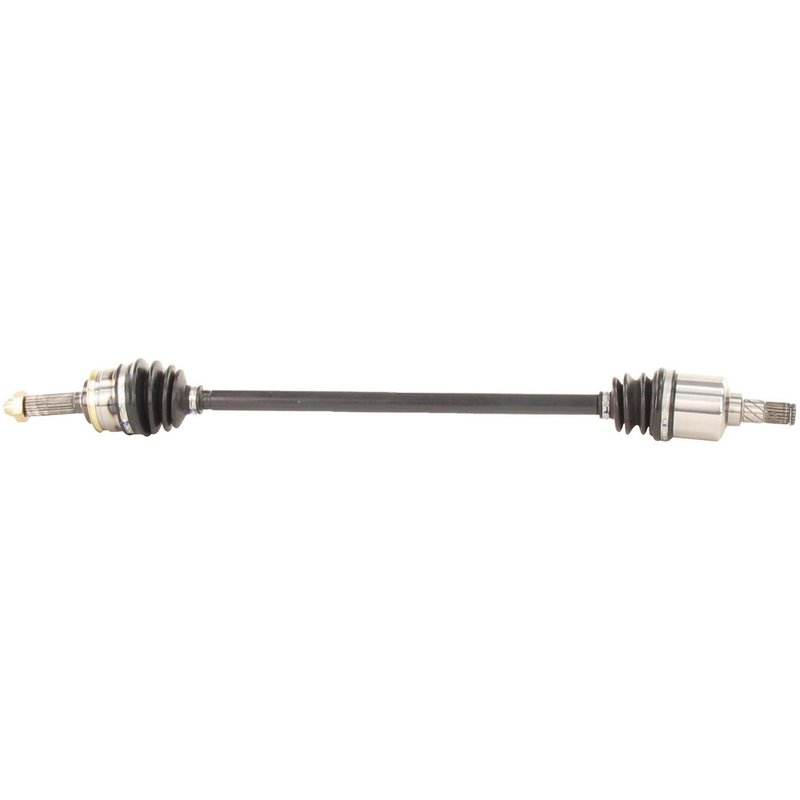

TrakMotive GM-8079 CV Axle Shaft - Front Right

Overview of TrakMotive GM-8079 CV Axle Shaft

The TrakMotive GM-8079 CV Axle Shaft is designed for reliable driveline performance in select Chevrolet, Geo, and Pontiac vehicles. This new CV axle shaft is engineered to meet the specific requirements of models like the Chevrolet Metro, Geo Firefly, and Pontiac Sprint, ensuring proper fit and function.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8079
• Compatible with Chevrolet Firefly, Geo Metro, Pontiac Sprint
• Axle Nut Included with Hex Head Type
• Neoprene Boot Material for Durability
• Inboard Joint Type: Male with 22 Splines
• Outboard Joint Type: Conventional with 23 Splines
• Overall Compressed Length: 32.13 inches (816 mm)
• Axle Nut Thread Size: M18*1.5

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. This line emphasizes quality materials such as neoprene boots for enhanced durability and includes necessary hardware like axle nuts with standard locking types. The GM-8079 model exemplifies this approach by providing a new, ready-to-install axle shaft designed to maintain drivetrain integrity in compatible Chevrolet, Geo, and Pontiac models.

Technical Specifications and Features

The GM-8079 CV Axle Shaft features a neoprene boot that offers resistance to wear and environmental factors, helping to protect the joint from contaminants. The inboard joint is a male type with 22 splines, while the outboard joint is conventional with 23 splines, ensuring proper engagement and smooth power transfer. The included axle nut has a hex head type measuring 1 1/6 inches (30 mm) across flats, with a height of 3/4 inch (19 mm) and a length of 1 1/3 inches (34.6 mm). The axle nut thread size is M18*1.5 with a standard locking mechanism, providing secure fastening during installation. The overall compressed length of the axle shaft is 32.13 inches (816 mm), matching OEM specifications for the intended vehicle models.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Chevrolet Firefly, Geo Metro, and Pontiac Sprint
• Addresses issues such as axle shaft vibration or clicking noises during turns
• Resolves grease leakage caused by torn or degraded CV boots
• Corrects driveline imbalance or axle shaft play affecting vehicle handling
• Restores proper power transfer from transmission to wheels

Installation Notes and Tips

Installation of the GM-8079 CV Axle Shaft requires standard automotive tools compatible with the included hex axle nut. Ensure the axle nut is torqued to manufacturer specifications using the M18*1.5 thread size. Inspect the axle shaft splines for proper engagement with the transmission and wheel hub. The neoprene boot should be checked for proper seating to prevent contamination. It is recommended to replace any damaged or worn components during installation to maintain driveline integrity.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. The product includes the axle nut and features durable neoprene boot material for extended service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability in compatible Chevrolet, Geo, and Pontiac vehicles.
