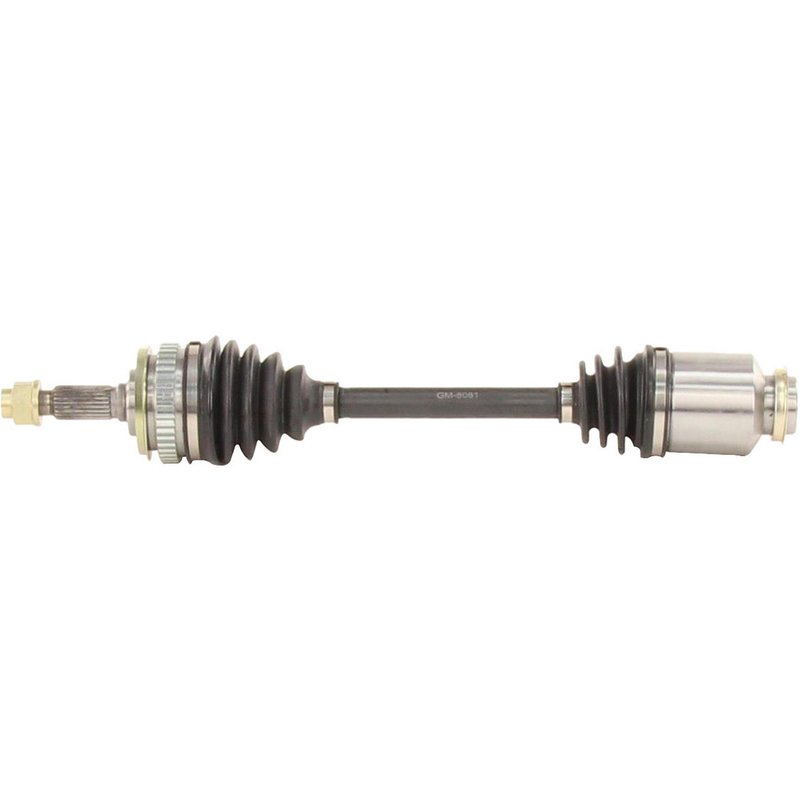

TrakMotive GM-8081 CV Axle Shaft - Front Right

Overview of TrakMotive GM-8081 CV Axle Shaft

The TrakMotive GM-8081 CV Axle Shaft is engineered for reliable driveline performance in Geo and Isuzu vehicles, specifically the Impulse, Storm, and Stylus models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front axle assembly.

• Compatible with Geo Impulse, Isuzu Storm, and Stylus models
• Includes a neoprene boot for enhanced protection
• Equipped with a 42-tooth ABS ring and included tone ring
• Hex head axle nut with stake locking mechanism included
• Overall compressed length of 22.25 inches (565.2 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed to meet OEM specifications. This line emphasizes precise engineering, including features such as female inboard joint connections and conventional outboard joints, ensuring compatibility and reliable driveline operation for select Geo and Isuzu vehicles.

Technical Specifications and Features

This GM-8081 CV Axle Shaft features a neoprene boot material that offers resistance to wear and environmental factors. The axle nut is a hex head type with a stake locking mechanism, measuring 1 1/9 inches (28 mm) in height and 1 1/6 inches (29.8 mm) across the hex. The axle nut thread size is M20*1, and the nut length is 1 1/3 inches (34.4 mm). The ABS ring is toothed with 42 teeth and includes a tone ring for ABS sensor compatibility. The inboard joint is female type with 26-2t splines, while the outboard joint is conventional with 24 splines. The overall compressed length of the axle shaft is 22.25 inches (565.2 mm), ensuring proper fitment and function.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Geo Impulse, Isuzu Storm, and Stylus
• Restores proper ABS sensor function with included toothed ABS ring and tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included hex axle nut and stake locking

Installation Notes and Tips

When installing the TrakMotive GM-8081 CV Axle Shaft, verify compatibility with your Geo Impulse, Isuzu Storm, or Stylus model year and drivetrain configuration. Use proper torque specifications for the M20*1 axle nut and ensure the stake locking is correctly applied to prevent loosening. Inspect the neoprene boot for any damage during installation and confirm the ABS tone ring is properly aligned for sensor operation.

Quality Assurance and Warranty

The TrakMotive GM-8081 CV Axle Shaft is a new, OEM-quality replacement part manufactured to meet or exceed industry standards. It includes all necessary components such as the axle nut and ABS tone ring to ensure complete installation. While specific warranty details are not provided, TrakMotive products typically adhere to strict quality control processes to support reliable vehicle performance.
