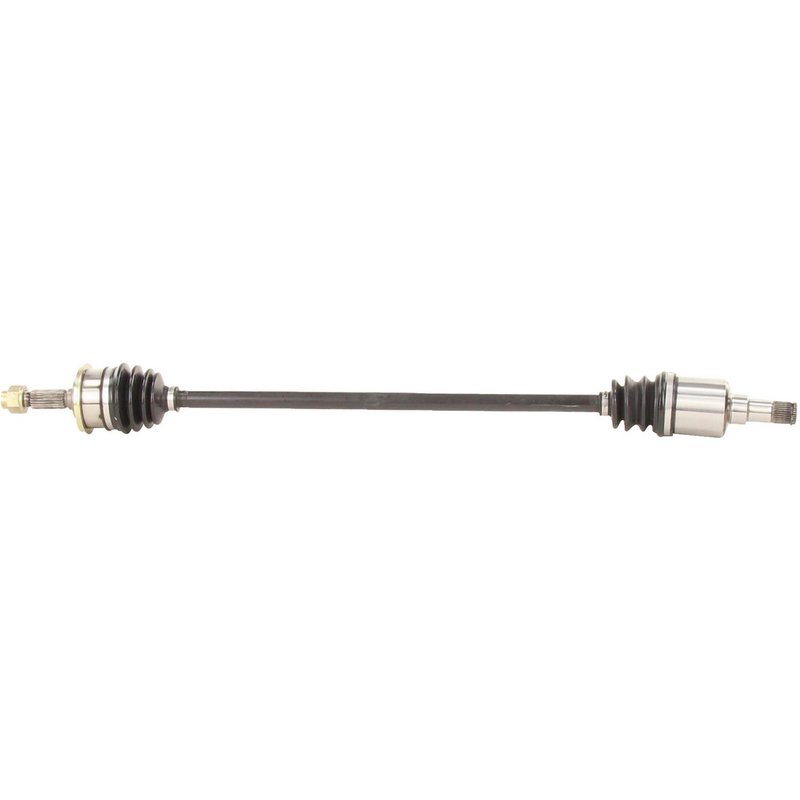

TrakMotive GM-8083 CV Axle Shaft - Front Right

CV Axle Shaft for Front Right Applications

TrakMotive GM-8083 is a new CV axle shaft for front right driveline service on select Geo Storm and Isuzu Stylus models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct replacement use in the listed applications.

Key Features

• Brand: TrakMotive CV Axle Shaft
• Part number: GM-8083
• New axle shaft assembly
• Front right position
• Male inboard shaft connection style
• Conventional outboard shaft connection style
• 34 inboard splines and 22 outboard splines
• Neoprene boot material
• Axle nut included with stake-lock design
• Overall compressed length: 35.12 in. (892 mm)

Product Details

TrakMotive GM-8083 is a CV axle shaft for vehicles that need a front right replacement with the specified spline count and connection styles. It is listed for 1990-1993 Geo Storm and 1991-1993 Isuzu Stylus, making it a direct-fit option for those front right driveline repairs. The included axle nut uses an M20 x 1 thread, hex head, and stake locking type, while the axle itself uses a neoprene boot and does not include an ABS tone ring.

TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built for application-specific fitment. GM-8083 follows that approach with the listed compressed length, spline configuration, and joint styles needed for the correct front right installation on Geo Storm and Isuzu Stylus models.

This part cross-references Cardone New 66-1026 for the same application.

Common Repair Symptoms

• Clicking or popping during turns from a worn CV joint
• Vibration from a damaged or unbalanced axle shaft
• Torn boot or grease loss at the axle assembly
• Front right axle noise under acceleration
• Excessive play in the driveline at the wheel end

Installation Notes

• Verify front right fitment before installation on 1990-1993 Geo Storm and 1991-1993 Isuzu Stylus.
• Confirm the axle nut thread size, hex size, and stake-lock style match the vehicle requirements.
• Check spline counts and overall compressed length against the removed axle.
• Inspect seals, hub surfaces, and related suspension components during replacement.
• ABS tone ring is not included.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for the GM-8083 replacement axle shaft.
