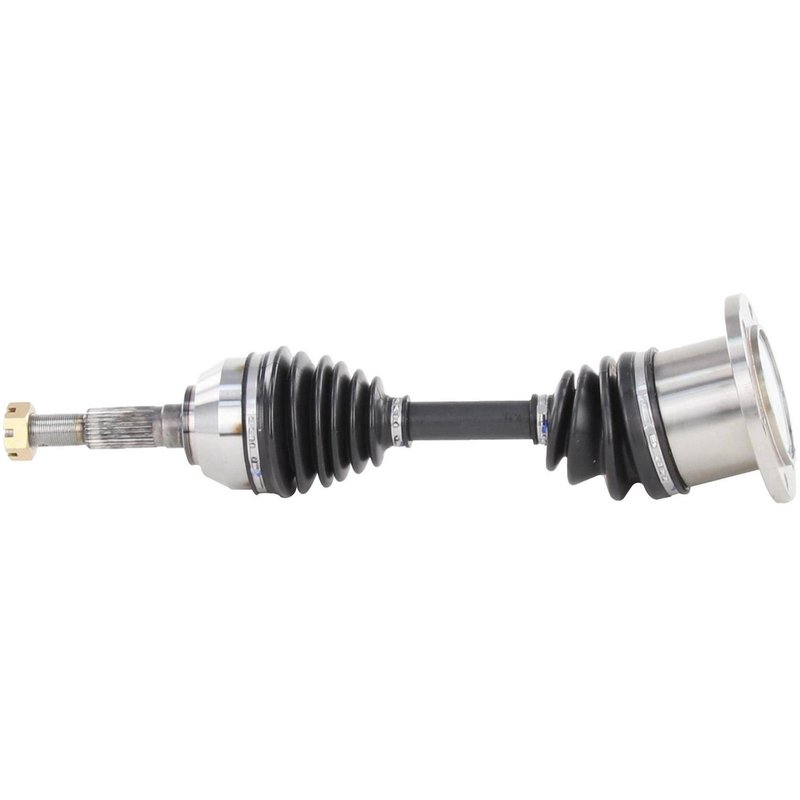

CV Axle ShaftTrakMotive GM-8087 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive GM-8087 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 2/3 |
| Axle Nut Height (mm) | 17.5 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 19.41 |
| Overall Compressed Length (mm) | 493 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet, GMC, and Oldsmobile · 134 vehicles |
New CV axle shaft. A direct replacement for restoring driveline performance.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by providing the hardware needed for installation.
Cross-references Anchor 9436, Cardone New 66-1000 and Cardone Reman 60-1000 for the same application. See all 24.
$108.54Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options
CV Axle Shaft for S10, Blazer, Jimmy, and Sonoma
TrakMotive GM-8087 is a new CV axle shaft for front left and front right applications on select Chevrolet, GMC, and Oldsmobile vehicles. It is built with a neoprene boot, a conventional outboard joint, and a flange-style inboard connection for direct driveline service on covered applications.
Key Features
- New CV axle shaft for front axle service
- Fits front left and front right positions on listed applications
- Neoprene boot material for flexible joint protection
- Flange inboard shaft connection style
- Conventional outboard joint design
- Includes axle nut with cotter pin locking type
- 27 outboard splines
- Overall compressed length: 19.41 in. (493 mm)
- ABS tone ring not included
Detailed Description
TrakMotive GM-8087 is a CV axle shaft engineered for a range of GM compact SUV and truck platforms, including Chevrolet S10, Chevrolet S10 Blazer, GMC S15, GMC S15 Jimmy, GMC Jimmy, GMC Sonoma, Chevrolet Blazer, and Oldsmobile Bravada. This part number is used on front left and front right positions across the listed fitments, making it a direct replacement option for common front driveline service on 1983-1996 applications. TrakMotive GM-8087 also cross-references Cardone New 66-1000 for the same application.
The TrakMotive CV Axle Shaft line focuses on replacement driveline components built for service fitment and consistent application matching. GM-8087 includes a hex axle nut with M24 x 1.5 thread size, 35.5 mm hex size, and cotter pin locking style. The axle is specified with a 19.41-inch compressed length and a conventional outer joint layout, supporting accurate replacement selection for the covered Chevrolet S10 and GMC Sonoma family vehicles.
Common Problems This Part Can Address
- Clicking or popping from a worn front CV joint
- Vibration during acceleration from a damaged axle shaft
- Torn boot conditions that expose the joint to contamination
- Excessive play in the front driveline
- Loss of smooth power transfer to the front wheels
Installation Notes and Tips
Verify front left or front right application, model year, and any listed notes before installation. This axle is specified for non-ZR-2 applications where noted in the fitment data. Confirm axle nut thread size, hex size, and compressed length against the removed part before assembly. Inspect hub, bearing, and seal surfaces during service to help prevent repeat driveline noise or leakage.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certified company standards. Manufacturer information also states a limited lifetime warranty. GM-8087 is built for the specified Chevrolet, GMC, and Oldsmobile front axle applications.
Compatible Vehicles
- Fits 1995-1996 Chevrolet Blazer, front right; w/o ZR-2 (High Wider) Option; CV Axle Shaft
- Fits 1995-1996 Chevrolet Blazer, front left; w/o ZR-2 (High Wider) Option; CV Axle Shaft
- Fits 1983-1996 Chevrolet S10, front right; CV Axle Shaft
- Fits 1983-1996 Chevrolet S10, front left; CV Axle Shaft
- Fits 1994-1996 GMC Jimmy, front right; w/o ZR-2 (High Wider) Option; CV Axle Shaft
- Fits 1994-1996 GMC Jimmy, front left; w/o ZR-2 (High Wider) Option; CV Axle Shaft
- Fits 1994-1996 GMC Sonoma, front right; w/o ZR-2 (High Wider) Option; CV Axle Shaft
- Fits 1994-1996 GMC Sonoma, front left; w/o ZR-2 (High Wider) Option; CV Axle Shaft
- Fits 1996 Oldsmobile Bravada, front right; CV Axle Shaft
- Fits 1991-1994 Oldsmobile Bravada, front right; CV Axle Shaft
- Fits 1996 Oldsmobile Bravada, front left; CV Axle Shaft
- Fits 1991-1994 Oldsmobile Bravada, front left; CV Axle Shaft
- Fits 1983-1994 Chevrolet S10 Blazer, front right; CV Axle Shaft
- Fits 1983-1994 Chevrolet S10 Blazer, front left; CV Axle Shaft
- Fits 1992-1993 GMC Jimmy, front right; CV Axle Shaft
- Fits 1992-1993 GMC Jimmy, front left; CV Axle Shaft
- Fits 1991-1993 GMC Sonoma, front right; CV Axle Shaft
- Fits 1991-1993 GMC Sonoma, front left; CV Axle Shaft
- Fits 1983-1991 GMC S15 Jimmy, front right; CV Axle Shaft
- Fits 1983-1991 GMC S15 Jimmy, front left; CV Axle Shaft
- Fits 1983-1990 GMC S15, front right; CV Axle Shaft
- Fits 1983-1990 GMC S15, front left; CV Axle Shaft
This part fits 134 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 1996 | Chevrolet | Blazer | — | AWD | Front Right | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1996 | Chevrolet | Blazer | — | AWD | Front Left | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1996 | Chevrolet | Blazer | — | 4WD | Front Right | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1996 | Chevrolet | Blazer | — | 4WD | Front Left | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1996 | Chevrolet | S10 | LS | 4WD | Front Right | CV Axle Shaft |
| 1996 | Chevrolet | S10 | LS | 4WD | Front Left | CV Axle Shaft |
| 1996 | Chevrolet | S10 | Base | 4WD | Front Right | CV Axle Shaft |
| 1996 | Chevrolet | S10 | Base | 4WD | Front Left | CV Axle Shaft |
| 1996 | GMC | Jimmy | — | 4WD | Front Right | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1996 | GMC | Jimmy | — | 4WD | Front Left | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1996 | GMC | Sonoma | — | 4WD | Front Right | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1996 | GMC | Sonoma | — | 4WD | Front Left | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1996 | Oldsmobile | Bravada | — | — | Front Right | CV Axle Shaft |
| 1996 | Oldsmobile | Bravada | — | — | Front Left | CV Axle Shaft |
| 1995 | Chevrolet | Blazer | — | AWD | Front Right | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1995 | Chevrolet | Blazer | — | AWD | Front Left | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1995 | Chevrolet | Blazer | — | 4WD | Front Right | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1995 | Chevrolet | Blazer | — | 4WD | Front Left | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1995 | Chevrolet | S10 | LS | 4WD | Front Right | CV Axle Shaft |
| 1995 | Chevrolet | S10 | LS | 4WD | Front Left | CV Axle Shaft |
| 1995 | Chevrolet | S10 | Base | 4WD | Front Right | CV Axle Shaft |
| 1995 | Chevrolet | S10 | Base | 4WD | Front Left | CV Axle Shaft |
| 1995 | GMC | Jimmy | — | AWD | Front Right | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1995 | GMC | Jimmy | — | AWD | Front Left | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1995 | GMC | Jimmy | — | 4WD | Front Right | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1995 | GMC | Jimmy | — | 4WD | Front Left | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1995 | GMC | Sonoma | — | 4WD | Front Right | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1995 | GMC | Sonoma | — | 4WD | Front Left | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1994 | Chevrolet | S10 | LS | 4WD | Front Right | CV Axle Shaft |
| 1994 | Chevrolet | S10 | LS | 4WD | Front Left | CV Axle Shaft |
| 1994 | Chevrolet | S10 | Base | 4WD | Front Right | CV Axle Shaft |
| 1994 | Chevrolet | S10 | Base | 4WD | Front Left | CV Axle Shaft |
| 1994 | Chevrolet | S10 Blazer | — | 4WD | Front Right | CV Axle Shaft |
| 1994 | Chevrolet | S10 Blazer | — | 4WD | Front Left | CV Axle Shaft |
| 1994 | GMC | Jimmy | — | 4WD | Front Right | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1994 | GMC | Jimmy | — | 4WD | Front Left | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1994 | GMC | Sonoma | — | 4WD | Front Right | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1994 | GMC | Sonoma | — | 4WD | Front Left | w/o ZR-2 (High Wider) Option; CV Axle Shaft |
| 1994 | Oldsmobile | Bravada | — | — | Front Right | CV Axle Shaft |
| 1994 | Oldsmobile | Bravada | — | — | Front Left | CV Axle Shaft |
| 1993 | Chevrolet | S10 | — | 4WD | Front Right | CV Axle Shaft |
| 1993 | Chevrolet | S10 | — | 4WD | Front Left | CV Axle Shaft |
| 1993 | Chevrolet | S10 Blazer | — | 4WD | Front Right | CV Axle Shaft |
| 1993 | Chevrolet | S10 Blazer | — | 4WD | Front Left | CV Axle Shaft |
| 1993 | GMC | Jimmy | — | 4WD | Front Right | CV Axle Shaft |
| 1993 | GMC | Jimmy | — | 4WD | Front Left | CV Axle Shaft |
| 1993 | GMC | Sonoma | — | 4WD | Front Right | CV Axle Shaft |
| 1993 | GMC | Sonoma | — | 4WD | Front Left | CV Axle Shaft |
| 1993 | Oldsmobile | Bravada | — | — | Front Right | CV Axle Shaft |
| 1993 | Oldsmobile | Bravada | — | — | Front Left | CV Axle Shaft |
| 1992 | Chevrolet | S10 | — | 4WD | Front Right | CV Axle Shaft |
| 1992 | Chevrolet | S10 | — | 4WD | Front Left | CV Axle Shaft |
| 1992 | Chevrolet | S10 Blazer | — | 4WD | Front Right | CV Axle Shaft |
| 1992 | Chevrolet | S10 Blazer | — | 4WD | Front Left | CV Axle Shaft |
| 1992 | GMC | Jimmy | — | 4WD | Front Right | CV Axle Shaft |
| 1992 | GMC | Jimmy | — | 4WD | Front Left | CV Axle Shaft |
| 1992 | GMC | Sonoma | — | 4WD | Front Right | CV Axle Shaft |
| 1992 | GMC | Sonoma | — | 4WD | Front Left | CV Axle Shaft |
| 1992 | Oldsmobile | Bravada | — | — | Front Right | CV Axle Shaft |
| 1992 | Oldsmobile | Bravada | — | — | Front Left | CV Axle Shaft |
| 1991 | Chevrolet | S10 | — | 4WD | Front Right | CV Axle Shaft |
| 1991 | Chevrolet | S10 | — | 4WD | Front Left | CV Axle Shaft |
| 1991 | Chevrolet | S10 Blazer | — | 4WD | Front Right | CV Axle Shaft |
| 1991 | Chevrolet | S10 Blazer | — | 4WD | Front Left | CV Axle Shaft |
| 1991 | GMC | S15 Jimmy | — | 4WD | Front Right | CV Axle Shaft |
| 1991 | GMC | S15 Jimmy | — | 4WD | Front Left | CV Axle Shaft |
| 1991 | GMC | Sonoma | — | 4WD | Front Right | CV Axle Shaft |
| 1991 | GMC | Sonoma | — | 4WD | Front Left | CV Axle Shaft |
| 1991 | Oldsmobile | Bravada | — | — | Front Right | CV Axle Shaft |
| 1991 | Oldsmobile | Bravada | — | — | Front Left | CV Axle Shaft |
| 1990 | Chevrolet | S10 | — | 4WD | Front Right | CV Axle Shaft |
| 1990 | Chevrolet | S10 | — | 4WD | Front Left | CV Axle Shaft |
| 1990 | Chevrolet | S10 Blazer | — | 4WD | Front Right | CV Axle Shaft |
| 1990 | Chevrolet | S10 Blazer | — | 4WD | Front Left | CV Axle Shaft |
| 1990 | GMC | S15 | — | 4WD | Front Right | CV Axle Shaft |
| 1990 | GMC | S15 | — | 4WD | Front Left | CV Axle Shaft |
| 1990 | GMC | S15 Jimmy | — | 4WD | Front Right | CV Axle Shaft |
| 1990 | GMC | S15 Jimmy | — | 4WD | Front Left | CV Axle Shaft |
| 1989 | Chevrolet | S10 | — | 4WD | Front Right | CV Axle Shaft |
| 1989 | Chevrolet | S10 | — | 4WD | Front Left | CV Axle Shaft |
| 1989 | Chevrolet | S10 Blazer | — | 4WD | Front Right | CV Axle Shaft |
| 1989 | Chevrolet | S10 Blazer | — | 4WD | Front Left | CV Axle Shaft |
| 1989 | GMC | S15 | — | 4WD | Front Right | CV Axle Shaft |
| 1989 | GMC | S15 | — | 4WD | Front Left | CV Axle Shaft |
| 1989 | GMC | S15 Jimmy | — | 4WD | Front Right | CV Axle Shaft |
| 1989 | GMC | S15 Jimmy | — | 4WD | Front Left | CV Axle Shaft |
| 1988 | Chevrolet | S10 | — | 4WD | Front Right | CV Axle Shaft |
| 1988 | Chevrolet | S10 | — | 4WD | Front Left | CV Axle Shaft |
| 1988 | Chevrolet | S10 Blazer | — | 4WD | Front Right | CV Axle Shaft |
| 1988 | Chevrolet | S10 Blazer | — | 4WD | Front Left | CV Axle Shaft |
| 1988 | GMC | S15 | — | 4WD | Front Right | CV Axle Shaft |
| 1988 | GMC | S15 | — | 4WD | Front Left | CV Axle Shaft |
| 1988 | GMC | S15 Jimmy | — | 4WD | Front Right | CV Axle Shaft |
| 1988 | GMC | S15 Jimmy | — | 4WD | Front Left | CV Axle Shaft |
| 1987 | Chevrolet | S10 | — | 4WD | Front Right | CV Axle Shaft |
| 1987 | Chevrolet | S10 | — | 4WD | Front Left | CV Axle Shaft |
| 1987 | Chevrolet | S10 Blazer | — | 4WD | Front Right | CV Axle Shaft |
| 1987 | Chevrolet | S10 Blazer | — | 4WD | Front Left | CV Axle Shaft |
| 1987 | GMC | S15 | — | 4WD | Front Right | CV Axle Shaft |
| 1987 | GMC | S15 | — | 4WD | Front Left | CV Axle Shaft |
| 1987 | GMC | S15 Jimmy | — | 4WD | Front Right | CV Axle Shaft |
| 1987 | GMC | S15 Jimmy | — | 4WD | Front Left | CV Axle Shaft |
| 1986 | Chevrolet | S10 | — | 4WD | Front Right | CV Axle Shaft |
| 1986 | Chevrolet | S10 | — | 4WD | Front Left | CV Axle Shaft |
| 1986 | Chevrolet | S10 Blazer | — | 4WD | Front Right | CV Axle Shaft |
| 1986 | Chevrolet | S10 Blazer | — | 4WD | Front Left | CV Axle Shaft |
| 1986 | GMC | S15 | — | 4WD | Front Right | CV Axle Shaft |
| 1986 | GMC | S15 | — | 4WD | Front Left | CV Axle Shaft |
| 1986 | GMC | S15 Jimmy | — | 4WD | Front Right | CV Axle Shaft |
| 1986 | GMC | S15 Jimmy | — | 4WD | Front Left | CV Axle Shaft |
| 1985 | Chevrolet | S10 | — | 4WD | Front Right | CV Axle Shaft |
| 1985 | Chevrolet | S10 | — | 4WD | Front Left | CV Axle Shaft |
| 1985 | Chevrolet | S10 Blazer | — | 4WD | Front Right | CV Axle Shaft |
| 1985 | Chevrolet | S10 Blazer | — | 4WD | Front Left | CV Axle Shaft |
| 1985 | GMC | S15 | — | 4WD | Front Right | CV Axle Shaft |
| 1985 | GMC | S15 | — | 4WD | Front Left | CV Axle Shaft |
| 1985 | GMC | S15 Jimmy | — | 4WD | Front Right | CV Axle Shaft |
| 1985 | GMC | S15 Jimmy | — | 4WD | Front Left | CV Axle Shaft |
| 1984 | Chevrolet | S10 | — | 4WD | Front Right | CV Axle Shaft |
| 1984 | Chevrolet | S10 | — | 4WD | Front Left | CV Axle Shaft |
| 1984 | Chevrolet | S10 Blazer | — | 4WD | Front Right | CV Axle Shaft |
| 1984 | Chevrolet | S10 Blazer | — | 4WD | Front Left | CV Axle Shaft |
| 1984 | GMC | S15 | — | 4WD | Front Right | CV Axle Shaft |
| 1984 | GMC | S15 | — | 4WD | Front Left | CV Axle Shaft |
| 1984 | GMC | S15 Jimmy | — | 4WD | Front Right | CV Axle Shaft |
| 1984 | GMC | S15 Jimmy | — | 4WD | Front Left | CV Axle Shaft |
| 1983 | Chevrolet | S10 | — | 4WD | Front Right | CV Axle Shaft |
| 1983 | Chevrolet | S10 | — | 4WD | Front Left | CV Axle Shaft |
| 1983 | Chevrolet | S10 Blazer | — | 4WD | Front Right | CV Axle Shaft |
| 1983 | Chevrolet | S10 Blazer | — | 4WD | Front Left | CV Axle Shaft |
| 1983 | GMC | S15 | — | 4WD | Front Right | CV Axle Shaft |
| 1983 | GMC | S15 | — | 4WD | Front Left | CV Axle Shaft |
| 1983 | GMC | S15 Jimmy | — | 4WD | Front Right | CV Axle Shaft |
| 1983 | GMC | S15 Jimmy | — | 4WD | Front Left | CV Axle Shaft |
| No rows match your filter. | ||||||
Directly replaces or cross-references 24 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 9436Cardone New — 66-1000Cardone Reman — 60-1000Dayco — 70885Dorman - HELP — 92404GSP — NCV10035TrakMotive — GM-808740-1611180-150180-24041201179087410257800257784407026011960AX-5521CH10525CV5071CV5536GC-8-8525GC-8-8659GM-6111MX-16111
