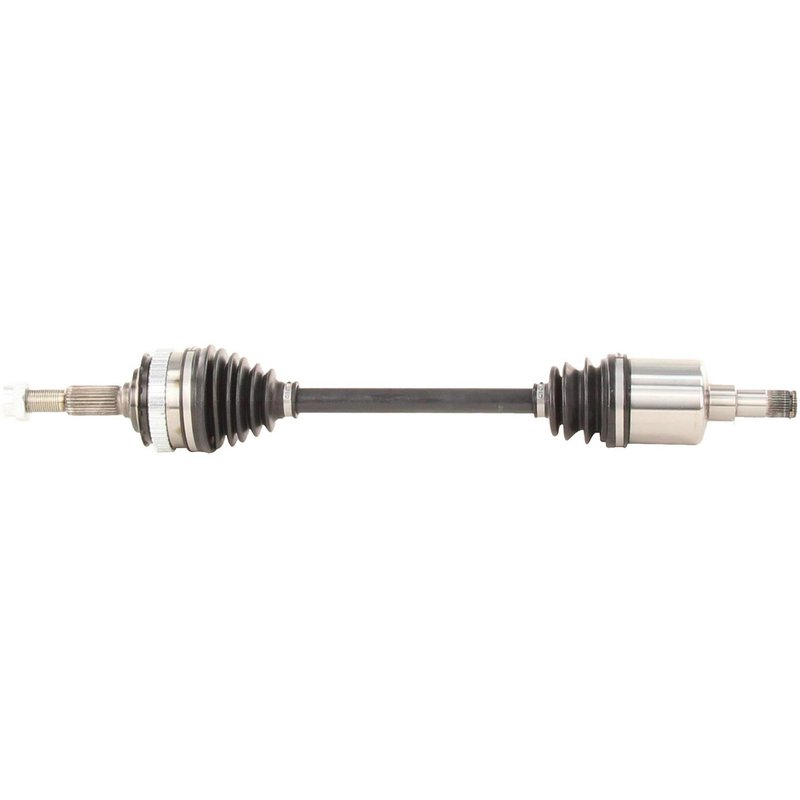

TrakMotive GM-8092 CV Axle Shaft - Front Right

Brand	TrakMotive GM-8092
Position	Front Right
Abs Ring Tooth Count	47
Abs Ring Type	Toothed
Abs Tone Ring Included	Yes
Axle Nut Head Type	Hex
Axle Nut Height (in)	6/7
Axle Nut Height (mm)	21.5
Axle Nut Hex Size (in)	1 3/7
Axle Nut Hex Size (mm)	36
Axle Nut Included	Yes
Axle Nut Length (in)	1 5/8
Axle Nut Length (mm)	41.5
Axle Nut Locking Type	Self-Lock
Axle Nut Thread Size	M24*2
Boot Material	Neoprene
Inboard Joint Type	Male
Inboard Shaft Connection Style	Male
New Or Remanufactured	New
Number Of Inboard Splines	34
Number Of Outboard Splines	27
Outboard Joint Type	Conventional
Outboard Shaft Connection Style	Conventional
Overall Compressed Length (in)	27.32
Overall Compressed Length (mm)	694
Product line	CV Axle Shaft
Fits	Buick, Oldsmobile, Cadillac, Chevrolet, and Pontiac · 111 vehicles

New axle shaft. Built as a fresh replacement, not remanufactured.

Neoprene boot. Helps resist wear while keeping the joint protected.

ABS tone ring included. Supports ABS-equipped applications when specified.

Cross-references Anchor 8460, Autolite 1108 and Cardone New 66-1094 for the same application. See all 46.

$85.95Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all CV Axle Shaft options

TrakMotive GM-8092 CV Axle Shaft

The TrakMotive GM-8092 is a new front right CV axle shaft built for select GM and Cadillac applications that use a 27-spline outboard joint. It is engineered for direct replacement service on vehicles such as the Buick Century, Oldsmobile Cutlass Ciera, and Pontiac 6000.

Key Features

New CV axle shaft for front right applications
Overall compressed length: 27.32 in. (694 mm)
Inboard joint type: male; outboard joint type: conventional
34 inboard splines and 27 outboard splines
ABS tone ring included with 47-tooth toothed ring
Neoprene boot material for driveline protection
Axle nut included: M24 x 2 self-locking nut, 36 mm hex
TrakMotive GM-8092 cross-references Cardone New 66-1094 for the same application

Product Details

This CV axle shaft is built around the fitment and connection details needed for front right service on a wide range of GM front-wheel-drive platforms. The GM-8092 uses a male inboard shaft connection, a conventional outboard connection, and the specified spline counts to match the listed applications. It also includes an ABS tone ring, making it a practical choice for vehicles that require wheel speed signal compatibility. TrakMotive positions this axle shaft as a new replacement part, and the brand notes ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.

Compatible vehicle coverage includes 1983-1993 Buick Century, front right; 1982-1993 Oldsmobile Cutlass Ciera, front right; 1984-1991 Pontiac 6000, front right; and other listed GM applications such as Chevrolet Celebrity, Cadillac DeVille, and Oldsmobile Delta 88. If you are searching for a front right CV axle shaft for a Buick Century or Oldsmobile Cutlass Ciera, GM-8092 is built to match the listed configuration details.

Common Problems This Part Can Address

Clicking or popping during turns caused by a worn CV joint
Vibration or shudder from a damaged axle shaft
Grease leakage from a deteriorated boot
ABS warning concerns related to a missing or damaged tone ring
Driveline noise from spline or joint wear

Installation Notes and Tips

Verify the front right position, spline counts, axle length, and axle nut specifications before installation. This axle uses a 36 mm hex axle nut with M24 x 2 thread size and self-locking design. ABS axles fit non-ABS applications unless otherwise noted, but the vehicle’s original ABS configuration should still be confirmed against the listing details. Always compare the removed axle to the replacement part before assembly.

Quality Assurance

TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states that its products are manufactured under ISO 9001:1007 and TS 16949:2009 certified quality systems.

This part fits 111 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Submodel	Body Type	Drive Type	Transmission	Liters	Cylinders	Position	Notes
1993	Buick	Century	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1993	Oldsmobile	Cutlass Ciera	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1993	Oldsmobile	Cutlass Cruiser	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1992	Buick	Century	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1992	Oldsmobile	Cutlass Ciera	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1992	Oldsmobile	Cutlass Cruiser	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1991	Buick	Century	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1991	Buick	LeSabre	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1991	Cadillac	Commercial Chassis	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1991	Cadillac	DeVille	—	—	—	—	—	—	Front Right	Exc.H.D. Brakes; CV Axle Shaft
1991	Cadillac	Fleetwood	—	—	—	—	—	—	Front Right	Exc.H.D. Brakes; CV Axle Shaft
1991	Chevrolet	Lumina APV	—	—	—	—	—	—	Front Right	CV Axle Shaft
1991	Oldsmobile	Cutlass Ciera	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1991	Oldsmobile	Cutlass Cruiser	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1991	Oldsmobile	Delta 88	—	—	—	—	—	—	Front Right	CV Axle Shaft
1991	Oldsmobile	Silhouette	—	Mini Passenger Van	FWD	—	—	—	Front Right	CV Axle Shaft
1991	Pontiac	6000	—	—	FWD	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1991	Pontiac	Bonneville	—	—	—	—	—	—	Front Right	CV Axle Shaft
1991	Pontiac	Trans Sport	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1990	Buick	Century	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1990	Buick	LeSabre	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1990	Cadillac	Commercial Chassis	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1990	Cadillac	DeVille	—	—	—	—	—	—	Front Right	Exc.H.D. Brakes; CV Axle Shaft
1990	Cadillac	Fleetwood	—	—	—	—	—	—	Front Right	Exc.H.D. Brakes; CV Axle Shaft
1990	Chevrolet	Celebrity	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1990	Chevrolet	Lumina APV	—	—	—	—	—	—	Front Right	CV Axle Shaft
1990	Oldsmobile	98	—	—	—	—	—	—	Front Right	CV Axle Shaft
1990	Oldsmobile	Cutlass Ciera	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1990	Oldsmobile	Cutlass Cruiser	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1990	Oldsmobile	Delta 88	—	—	—	—	—	—	Front Right	CV Axle Shaft
1990	Oldsmobile	Silhouette	—	Mini Passenger Van	FWD	—	—	—	Front Right	CV Axle Shaft
1990	Pontiac	6000	—	—	FWD	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1990	Pontiac	Bonneville	—	—	—	—	—	—	Front Right	CV Axle Shaft
1990	Pontiac	Trans Sport	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1989	Buick	Century	—	—	—	Automatic	3.3L	V6	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1989	Buick	LeSabre	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1989	Cadillac	Commercial Chassis	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1989	Cadillac	DeVille	—	—	—	—	—	—	Front Right	CV Axle Shaft
1989	Cadillac	Fleetwood	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1989	Chevrolet	Celebrity	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1989	Oldsmobile	98	—	—	—	—	—	—	Front Right	CV Axle Shaft
1989	Oldsmobile	Cutlass Ciera	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1989	Oldsmobile	Cutlass Cruiser	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1989	Oldsmobile	Delta 88	—	—	—	—	—	—	Front Right	CV Axle Shaft
1989	Pontiac	6000	—	—	FWD	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1989	Pontiac	Bonneville	—	—	—	—	—	—	Front Right	CV Axle Shaft
1988	Buick	Century	Base	—	—	Automatic	2.8L	V6	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1988	Buick	LeSabre	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1988	Buick	Reatta	—	—	—	—	—	—	Front Right	CV Axle Shaft
1988	Buick	Riviera	—	—	—	—	—	—	Front Right	CV Axle Shaft
1988	Cadillac	Allante	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1988	Cadillac	Commercial Chassis	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1988	Cadillac	DeVille	—	—	—	—	—	—	Front Right	CV Axle Shaft
1988	Cadillac	Eldorado	—	—	—	—	—	—	Front Right	CV Axle Shaft
1988	Cadillac	Fleetwood	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1988	Cadillac	Seville	—	—	—	—	—	—	Front Right	CV Axle Shaft
1988	Chevrolet	Celebrity	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1988	Oldsmobile	98	—	—	—	—	—	—	Front Right	CV Axle Shaft
1988	Oldsmobile	Cutlass Ciera	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1988	Oldsmobile	Delta 88	—	—	—	—	—	—	Front Right	CV Axle Shaft
1988	Oldsmobile	Toronado	—	—	—	—	—	—	Front Right	CV Axle Shaft
1988	Pontiac	6000	—	—	FWD	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1988	Pontiac	Bonneville	—	—	—	—	—	—	Front Right	CV Axle Shaft
1987	Buick	Century	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1987	Buick	LeSabre	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1987	Buick	Riviera	—	—	—	—	—	—	Front Right	CV Axle Shaft
1987	Cadillac	Allante	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1987	Cadillac	Commercial Chassis	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1987	Cadillac	DeVille	—	—	—	—	—	—	Front Right	CV Axle Shaft
1987	Cadillac	Eldorado	—	—	—	—	—	—	Front Right	CV Axle Shaft
1987	Cadillac	Fleetwood	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1987	Cadillac	Seville	—	—	—	—	—	—	Front Right	CV Axle Shaft
1987	Chevrolet	Celebrity	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1987	Oldsmobile	98	—	—	—	—	—	—	Front Right	CV Axle Shaft
1987	Oldsmobile	Cutlass Ciera	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1987	Oldsmobile	Delta 88	—	—	—	—	—	—	Front Right	CV Axle Shaft
1987	Oldsmobile	Toronado	—	—	—	—	—	—	Front Right	CV Axle Shaft
1987	Pontiac	6000	—	—	FWD	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1987	Pontiac	Bonneville	—	—	—	—	—	—	Front Right	CV Axle Shaft
1986	Buick	Century	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1986	Buick	LeSabre	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1986	Buick	Riviera	—	—	—	—	—	—	Front Right	CV Axle Shaft
1986	Cadillac	Commercial Chassis	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1986	Cadillac	DeVille	—	—	—	—	—	—	Front Right	CV Axle Shaft
1986	Cadillac	Eldorado	—	—	—	—	—	—	Front Right	CV Axle Shaft
1986	Cadillac	Fleetwood	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1986	Cadillac	Seville	—	—	—	—	—	—	Front Right	CV Axle Shaft
1986	Chevrolet	Celebrity	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1986	Oldsmobile	98	—	—	—	—	—	—	Front Right	CV Axle Shaft
1986	Oldsmobile	Cutlass Ciera	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1986	Oldsmobile	Delta 88	—	—	—	—	—	—	Front Right	CV Axle Shaft
1986	Oldsmobile	Toronado	—	—	—	—	—	—	Front Right	CV Axle Shaft
1986	Pontiac	6000	—	—	FWD	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1985	Buick	Century	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1985	Cadillac	Commercial Chassis	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1985	Cadillac	DeVille	—	—	—	—	—	—	Front Right	CV Axle Shaft
1985	Cadillac	Fleetwood	—	—	FWD	—	—	—	Front Right	CV Axle Shaft
1985	Chevrolet	Celebrity	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1985	Oldsmobile	98	—	—	—	—	—	—	Front Right	CV Axle Shaft
1985	Oldsmobile	Cutlass Ciera	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1985	Pontiac	6000	—	—	FWD	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1984	Buick	Century	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1984	Chevrolet	Celebrity	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1984	Oldsmobile	Cutlass Ciera	—	—	—	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1984	Pontiac	6000	—	—	FWD	Automatic	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1983	Buick	Century	—	—	—	—	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1983	Chevrolet	Celebrity	—	—	—	—	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1983	Oldsmobile	Cutlass Ciera	—	—	—	—	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1983	Oldsmobile	Cutlass Cruiser	—	—	—	—	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1982	Oldsmobile	Cutlass Ciera	—	—	—	—	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
1982	Oldsmobile	Cutlass Cruiser	—	—	—	—	—	—	Front Right	27 Spline O.B. Joint; CV Axle Shaft
No rows match your filter.

Directly replaces or cross-references 46 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Anchor — 8460Autolite — 1108Cardone New — 66-1094Cardone Reman — 60-1010Cardone Reman — 60-1094Dorman - HELP — 92437Dorman - HELP — 92454TrakMotive — GM-809240-16008S40-16130S80-131580-245480-2515705021790924102517066778019557067039260003822600038826000389260032842600509926007416260108762601554326019026260190282602104526021048AX-6677AX-67039AX-67049CV3018CV5113CV6715GC-8-8503AGC-8-8534AGM-6130AGM 83-93MX-16008SMX-16130MX-16130SNCV10526NCV10550
