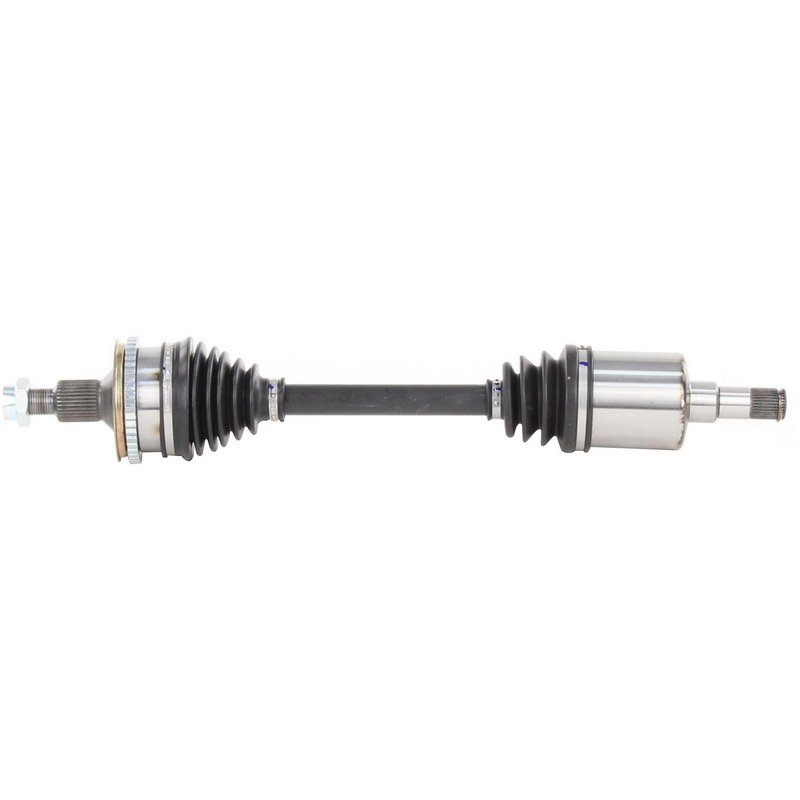

TrakMotive GM-8098 CV Axle Shaft - Front Right

Overview of TrakMotive GM-8098 CV Axle Shaft

The TrakMotive GM-8098 CV Axle Shaft is engineered for reliable driveline performance in select Buick, Chevrolet, Oldsmobile, and Pontiac vehicles. Designed specifically for models such as the Cutlass, Cutlass Supreme, Grand Prix, Lumina, and Regal, this new CV axle shaft ensures proper fitment and durability.

• Compatible with Buick Cutlass, Cutlass Supreme, Chevrolet Lumina, Oldsmobile Cutlass, Pontiac Grand Prix, and Regal
• Includes a self-locking hex axle nut (M24*2 thread size) with a 36 mm hex size
• Equipped with a neoprene boot for enhanced protection against contaminants
• Features a 47-tooth ABS ring with a toothed tone ring included for accurate ABS sensor operation
• Overall compressed length of 25.2 inches (640 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed to meet OEM specifications. This line emphasizes durability and precise fitment, featuring components such as male inboard joints and conventional outboard joints, along with neoprene boots to resist wear. The GM-8098 model exemplifies these standards with its detailed engineering and included hardware.

Technical Specifications and Features

This CV axle shaft includes a 47-tooth ABS ring with a toothed design and an ABS tone ring to maintain proper wheel speed sensor function. The axle nut is a self-locking type with a hex head measuring 36 mm across flats and a length of 41.5 mm (1 5/8 inches). The boot material is neoprene, chosen for its resistance to heat and environmental damage. The inboard joint uses a male connection style with 34 splines, while the outboard joint is conventional with 33 splines, ensuring compatibility with the specified vehicle models. The overall compressed length of 25.2 inches (640 mm) supports accurate installation and driveline alignment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts in Buick Cutlass and Chevrolet Lumina
• Restores proper ABS sensor function with included toothed ABS ring and tone ring
• Addresses axle nut loosening issues with self-locking hex nut design
• Prevents boot failure and contamination with durable neoprene boot
• Corrects driveline vibrations caused by faulty or bent axle shafts

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before removing the old axle shaft. Verify spline counts and joint types match the GM-8098 specifications to avoid fitment issues. Use the included self-locking axle nut and torque to manufacturer specifications. Inspect the ABS sensor and wiring during installation to confirm proper alignment with the toothed ABS ring. Avoid damaging the neoprene boot during installation to maintain its protective function.

Quality Assurance and Warranty

The TrakMotive GM-8098 CV Axle Shaft is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and performance in compatible Buick, Chevrolet, Oldsmobile, and Pontiac models.
