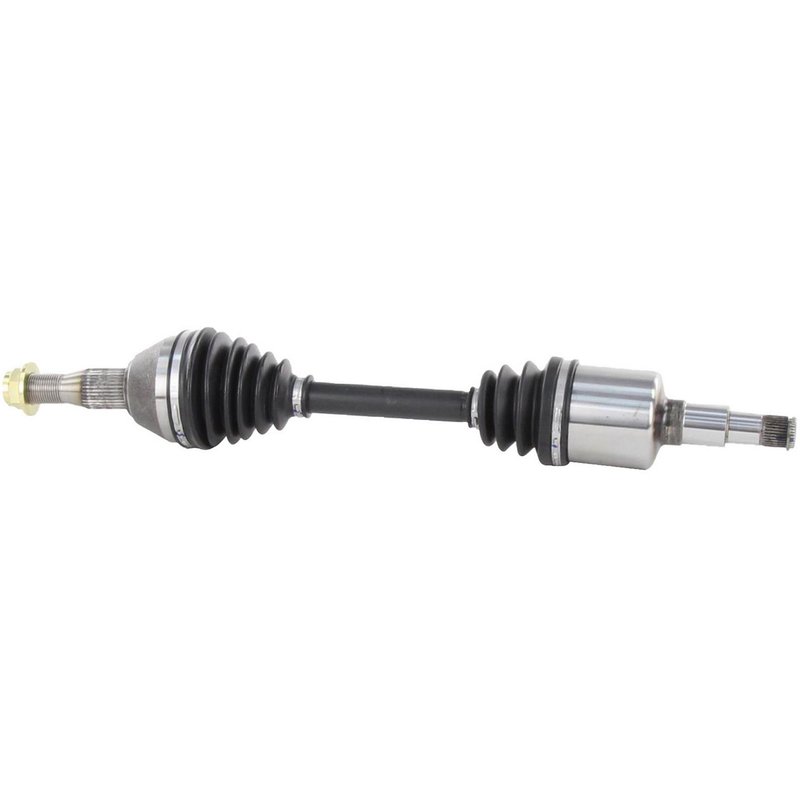

TrakMotive GM-8100 CV Axle Shaft - Front Right

Overview of the TrakMotive CV Axle Shaft GM-8100

The TrakMotive CV Axle Shaft GM-8100 is engineered for reliable driveline performance in select Buick, Cadillac, Oldsmobile, and Pontiac vehicles. Designed as a new replacement part, it ensures proper fit and function for models such as the Bonneville, DeVille, Eldorado, and Grand Prix.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8100
• Axle Nut Included with Self-locking Hex Head
• Boot Material: Durable Neoprene
• Inboard Joint Type: Male with 34 Splines
• Outboard Joint Type: Conventional with 33 Splines
• Overall Compressed Length: 25 inches (635 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. This line emphasizes quality materials such as neoprene boots for enhanced durability and includes essential hardware like self-locking axle nuts. The GM-8100 model exemplifies this approach by combining robust joint designs and accurate spline counts to maintain drivetrain integrity in compatible GM vehicles.

Technical Specifications and Features

The GM-8100 CV Axle Shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The inboard joint is a male type with 34 splines, while the outboard joint is conventional with 33 splines, ensuring compatibility with the specified GM models. The included axle nut is a self-locking hex head type, measuring 1 2/7 inches (32.8 mm) across flats, with a height of 6/7 inches (22 mm) and a length of 1 1/2 inches (37.9 mm). The thread size is M27*2, designed to secure the axle firmly in place. The overall compressed length of 25 inches (635 mm) matches factory specifications for proper fitment.

Compatible Vehicles and Applications

• Buick models including LeSabre, Park Avenue, and Riviera
• Cadillac models such as DeVille, Eldorado, Fleetwood, and Seville
• Oldsmobile 88 and 98 series
• Pontiac Bonneville, Grand Prix, Intrigue, LSS, and Toronado

This CV axle shaft is intended for use in driveline repairs where the original axle shaft is worn, damaged, or failing, restoring smooth power transfer and vehicle handling.

Common Issues Addressed by the GM-8100 CV Axle Shaft

• Eliminates clicking or popping noises during turns caused by worn CV joints
• Resolves vibration or shuddering under acceleration due to axle shaft imbalance
• Prevents grease leaks from torn or damaged CV boots
• Restores proper axle nut torque retention with self-locking hardware
• Corrects driveline binding or stiffness from joint wear

Installation Notes and Tips

Installation of the GM-8100 CV Axle Shaft requires proper torque specifications for the included self-locking axle nut (M27*2 thread size). Ensure the neoprene boot is seated correctly to prevent contamination. Verify spline engagement on both inboard and outboard joints to avoid driveline issues. It is recommended to inspect related suspension and steering components during installation for overall system integrity.

Quality Assurance and Warranty

The TrakMotive GM-8100 CV Axle Shaft is a new, OEM-quality replacement part manufactured to meet or exceed original equipment standards. It includes a self-locking axle nut to maintain secure fitment. While specific warranty details are not provided here, TrakMotive products typically come with manufacturer-backed warranties to ensure reliability and customer confidence.
