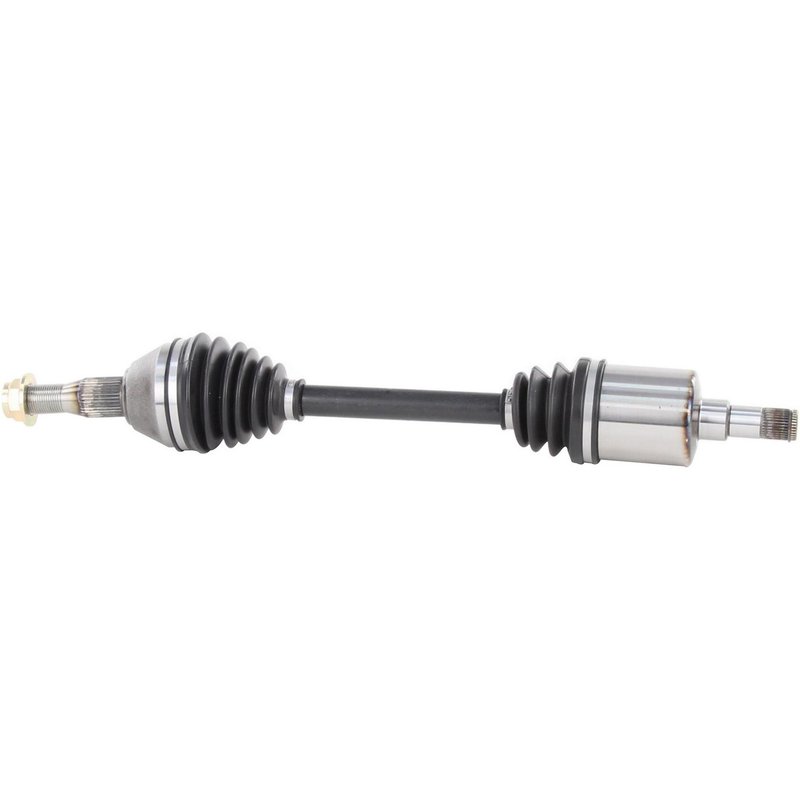

TrakMotive GM-8103 CV Axle Shaft - Front Right
| Brand | TrakMotive GM-8103 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 2/7 |
| Axle Nut Hex Size (mm) | 32.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.9 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M27*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.61 |
| Overall Compressed Length (mm) | 676 |
| Product line | CV Axle Shaft |
| Fits | Buick, Chevrolet, Oldsmobile, and Pontiac · 19 vehicles |
New axle shaft. Built with neoprene boot material and conventional outboard joint design.
Axle nut included. Comes with a self-locking hex nut for easier installation.
ISO certified. Made by a company certified to ISO 9001 and TS 16949 standards.
Cross-references Cardone New 66-1109, Cardone Reman 60-1109 and Gates 9570 for the same application. See all 18.
TrakMotive GM-8103 CV Axle Shaft
The TrakMotive GM-8103 is a new CV axle shaft for front right applications on select Buick, Chevrolet, Oldsmobile, and Pontiac vehicles. Built with a neoprene boot, a supplied axle nut, and OE-style spline and joint configurations, it is a direct replacement for worn driveline components on the listed applications.
Key Features
- New CV axle shaft for front right installation
- Neoprene boot material for durable joint protection
- Male inboard shaft connection with 34 inboard splines
- Conventional outboard joint with 33 outboard splines
- Axle nut included with self-lock design, M27x2 thread, and 32.8 mm hex size
- Overall compressed length: 26.61 in. (676 mm)
- ABS tone ring not included
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Product Details
This TrakMotive CV axle shaft is engineered for the front right position and matches the listed OE-style dimensions and spline counts for proper driveline fitment. The GM-8103 part number is used across multiple cross-reference applications, and it is listed for 1992-1995 Chevrolet Lumina APV, 1992-1995 Oldsmobile Silhouette, 1992-1995 Pontiac Trans Sport, 1994 Buick Century, 1994 Oldsmobile Cutlass Cruiser, and 1994-1996 Oldsmobile Cutlass Ciera. This part cross-references Cardone New 66-1109 and Gates 9570 for the same application.
What This Axle Shaft Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or out-of-balance axle assembly
- Grease leakage from a deteriorated axle boot
- Noise or looseness from spline wear at the hub or transaxle connection
- Loss of driveline performance from a failed front right axle shaft
Installation Notes
Verify the vehicle’s front right application, spline count, and axle length before installation. The GM-8103 includes an axle nut and uses a hex head, self-locking M27x2 nut specification. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring. Confirm the listed fitment and inspect related seals, hub components, and mounting points during replacement.
Quality Assurance
TrakMotive identifies this axle shaft as a new component manufactured under ISO 9001:1007 and TS 16949:2009 certified processes. The GM-8103 is backed by a limited lifetime warranty.
| Year | Make | Model | Body Type | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1996 | Buick | Century | — | — | Automatic | Front Right | 27 Spline O.B. Joint; CV Axle Shaft |
| 1996 | Oldsmobile | Cutlass Ciera | — | — | Automatic | Front Right | 27 Spline O.B. Joint; CV Axle Shaft |
| 1995 | Buick | Century | — | — | Automatic | Front Right | 27 Spline O.B. Joint; CV Axle Shaft |
| 1995 | Chevrolet | Lumina APV | — | — | Automatic | Front Right | CV Axle Shaft |
| 1995 | Oldsmobile | Cutlass Ciera | — | — | Automatic | Front Right | 27 Spline O.B. Joint; CV Axle Shaft |
| 1995 | Oldsmobile | Silhouette | Mini Passenger Van | FWD | Automatic | Front Right | CV Axle Shaft |
| 1995 | Pontiac | Trans Sport | — | FWD | Automatic | Front Right | CV Axle Shaft |
| 1994 | Buick | Century | — | — | Automatic | Front Right | 27 Spline O.B. Joint; CV Axle Shaft |
| 1994 | Chevrolet | Lumina APV | — | — | Automatic | Front Right | CV Axle Shaft |
| 1994 | Oldsmobile | Cutlass Ciera | — | — | Automatic | Front Right | 27 Spline O.B. Joint; CV Axle Shaft |
| 1994 | Oldsmobile | Cutlass Cruiser | — | — | Automatic | Front Right | 27 Spline O.B. Joint; CV Axle Shaft |
| 1994 | Oldsmobile | Silhouette | Mini Passenger Van | FWD | Automatic | Front Right | CV Axle Shaft |
| 1994 | Pontiac | Trans Sport | — | FWD | Automatic | Front Right | CV Axle Shaft |
| 1993 | Chevrolet | Lumina APV | — | — | Automatic | Front Right | CV Axle Shaft |
| 1993 | Oldsmobile | Silhouette | Mini Passenger Van | FWD | Automatic | Front Right | CV Axle Shaft |
| 1993 | Pontiac | Trans Sport | — | FWD | Automatic | Front Right | CV Axle Shaft |
| 1992 | Chevrolet | Lumina APV | — | — | Automatic | Front Right | CV Axle Shaft |
| 1992 | Oldsmobile | Silhouette | Mini Passenger Van | FWD | Automatic | Front Right | CV Axle Shaft |
| 1992 | Pontiac | Trans Sport | — | FWD | Automatic | Front Right | CV Axle Shaft |
