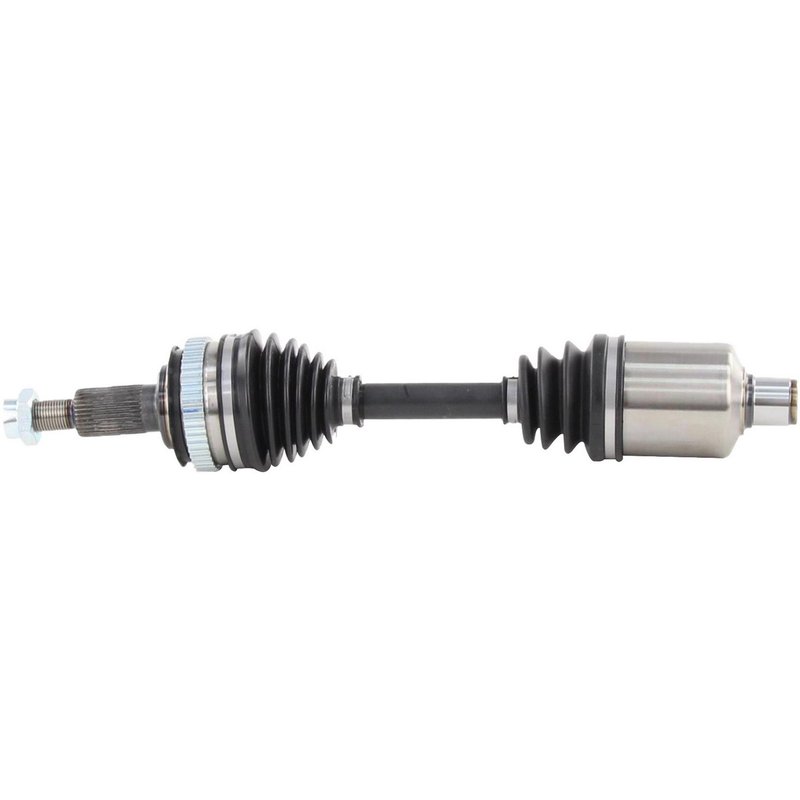

TrakMotive GM-8104 CV Axle Shaft - Front Left

Overview of TrakMotive GM-8104 CV Axle Shaft

The TrakMotive GM-8104 CV Axle Shaft is designed for reliable driveline performance in select Buick, Cadillac, and Oldsmobile vehicles. Engineered to meet OEM specifications, this new CV axle shaft ensures proper fit and function for models including the Allante, DeVille, Eldorado, Fleetwood, Reatta, Riviera, Seville, and Toronado.

• Includes a toothed ABS tone ring with 47 teeth for accurate wheel speed sensor readings
• Equipped with a neoprene boot for enhanced durability and protection against contaminants
• Features a self-locking hex axle nut (M24x2 thread size) with a 36 mm hex size and 41.5 mm length
• Inboard joint type is female with 35 splines; outboard joint is conventional with 33 splines
• Overall compressed length of 21.38 inches (543 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering components that maintain driveline integrity and vehicle safety. This line includes shafts designed with integrated ABS tone rings and durable neoprene boots to ensure long service life and compatibility with factory ABS systems. The GM-8104 part exemplifies this approach by combining robust materials and precise engineering tailored for specific GM vehicle applications.

Technical Description and Specifications

This CV axle shaft features a toothed ABS ring with 47 teeth, which is included to support the vehicle's anti-lock braking system. The neoprene boot material provides resistance to wear and environmental damage, helping to protect the internal joints. The axle nut is a self-locking hex type, measuring 36 mm across flats and 41.5 mm in length, ensuring secure installation. The inboard joint uses a female connection style with 35 splines, while the outboard joint is conventional with 33 splines. The overall compressed length of 21.38 inches (543 mm) matches OEM dimensions for proper driveline alignment.

Compatible Vehicles and Applications

• Buick Allante
• Cadillac DeVille, Eldorado, Fleetwood, Seville
• Oldsmobile Reatta, Riviera
• Oldsmobile Toronado

This CV axle shaft is intended for use in driveline repairs or replacements where the original shaft has worn or failed, restoring proper power transfer and vehicle handling.

Common Issues Addressed by This CV Axle Shaft

• Vibration or noise during acceleration due to worn CV joints
• Grease leakage from torn or damaged boots
• ABS sensor errors caused by faulty or missing tone rings
• Loose or damaged axle nuts compromising driveline security
• Excessive play or joint wear affecting vehicle stability

Installation Notes and Tips

Ensure the axle nut is torqued to manufacturer specifications using the included self-locking hex nut. Verify the ABS tone ring is properly seated to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to prevent premature failure. Confirm spline engagement on both inboard and outboard joints for secure fitment. It is recommended to replace axle nuts when installing this CV axle shaft to maintain driveline integrity.

Quality Assurance and Warranty

The TrakMotive GM-8104 CV Axle Shaft is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a self-locking axle nut and a durable neoprene boot to ensure long-term reliability. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
