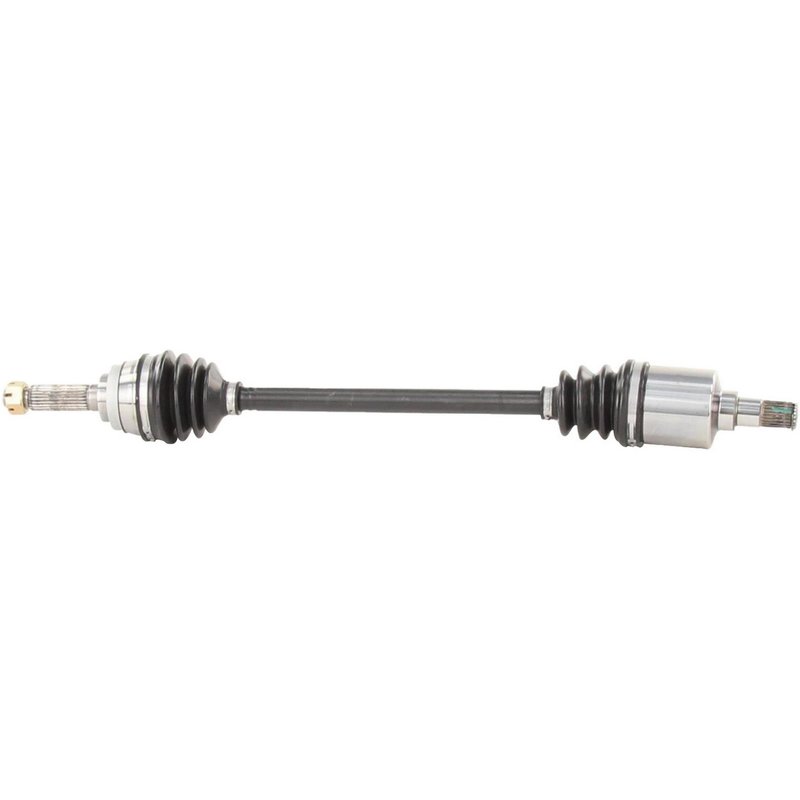

TrakMotive GM-8116 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft GM-8116 for Chevrolet Sprint

The TrakMotive CV Axle Shaft GM-8116 is designed specifically for Chevrolet Sprint models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Chevrolet Sprint vehicles
• New, not remanufactured, for consistent quality
• Neoprene boot material for enhanced durability
• Includes axle nut with cotter pin locking mechanism
• Hex axle nut head type with 27 mm hex size
• Overall compressed length of 26.22 inches (666 mm)
• Male inboard joint with 22 splines and conventional outboard joint with 23 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components tailored for specific vehicle applications. The GM-8116 part is engineered to meet the exact specifications required for Chevrolet Sprint driveline systems, ensuring proper joint fitment and shaft length. This line emphasizes quality materials such as neoprene boots and includes necessary hardware like axle nuts with cotter pin locking for secure installation.

Technical Specifications and Features

This CV axle shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The inboard joint is a male type with 22 splines, while the outboard joint is conventional with 23 splines, matching the Chevrolet Sprint's factory setup. The included axle nut has a hex head measuring 27 mm across flats, with a height of 15.5 mm and a length of 31.2 mm. It uses an M18x1.5 thread size and locks securely with a cotter pin to prevent loosening during operation.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Chevrolet Sprint
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by restoring boot integrity
• Addresses axle nut loosening with included cotter pin locking mechanism

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before removing the old axle shaft. Verify spline counts and joint types match the GM-8116 specifications. Use the included axle nut and cotter pin to secure the shaft properly, tightening to manufacturer torque specifications. Inspect the neoprene boot for any damage during installation to maintain joint protection.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft GM-8116 is a new part manufactured to meet OEM standards for Chevrolet Sprint vehicles. It includes all necessary hardware for installation and is constructed with durable materials to provide reliable service life. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage.
