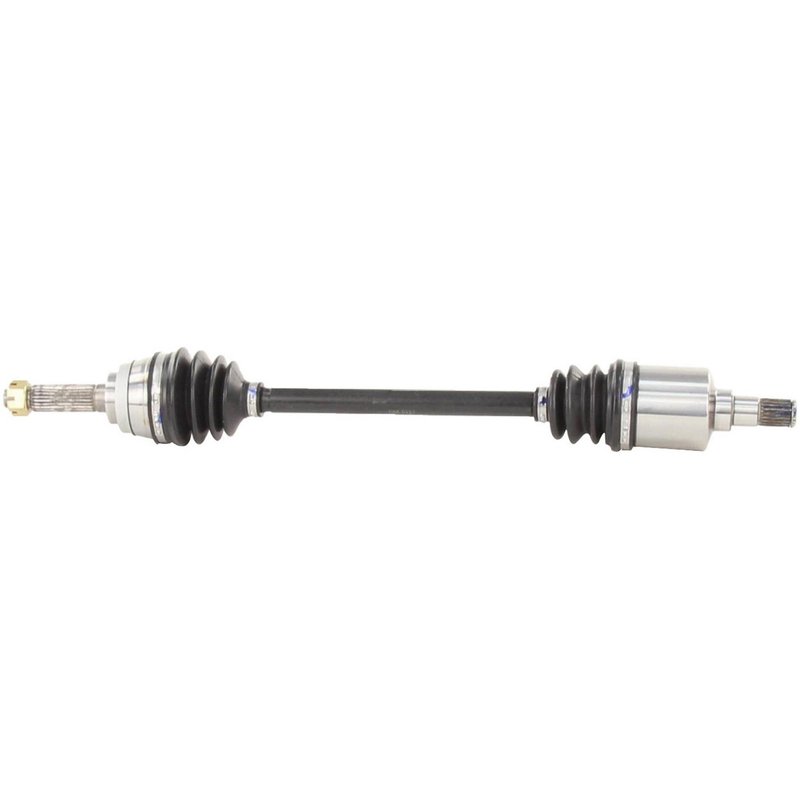

TrakMotive GM-8117 CV Axle Shaft - Front Left

Overview of TrakMotive GM-8117 CV Axle Shaft

The TrakMotive GM-8117 CV Axle Shaft is designed for reliable driveline performance in select Chevrolet, Pontiac, and Suzuki models. Engineered as a new replacement part, it ensures proper fit and function for vehicles like the Chevrolet Firefly, Pontiac Forsa, and Suzuki Sprint.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8117
• Compatible with Chevrolet Firefly, Pontiac Forsa, Suzuki Sprint
• Axle Nut Included with Hex Head and Cotter Pin Locking
• Neoprene Boot Material for Durability
• Inboard Joint Type: Male with 22 Splines
• Outboard Joint Type: Conventional with 23 Splines
• Overall Compressed Length: 24.53 inches (623 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. This line emphasizes quality materials and accurate fitment, such as the neoprene boot for enhanced durability and the inclusion of axle nuts with cotter pin locking mechanisms. The GM-8117 model exemplifies this approach by providing a new, ready-to-install axle shaft designed to meet the exact specifications required by Chevrolet, Pontiac, and Suzuki vehicles.

Technical Specifications and Features

The GM-8117 CV Axle Shaft features a hex-type axle nut with a 27 mm hex size and a height of 15.5 mm (3/5 inch). The axle nut length measures 31.2 mm (1 2/9 inch) and includes a cotter pin locking type for secure installation. The shaft itself has a male inboard joint with 22 splines and a conventional outboard joint with 23 splines, ensuring compatibility with the specified vehicle models. The neoprene boot material provides resistance to wear and environmental factors, contributing to the longevity of the axle shaft assembly.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Chevrolet Firefly, Pontiac Forsa, and Suzuki Sprint
• Addresses issues such as axle shaft vibration and noise
• Resolves grease leakage caused by torn or degraded boots
• Corrects axle nut loosening with included cotter pin locking mechanism
• Improves driveline stability and smooth power transfer

Installation Notes and Tips

When installing the TrakMotive GM-8117 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to prevent loosening. Inspect the neoprene boot for proper seating to avoid contamination and premature wear. This axle shaft is designed for direct replacement, so no modifications should be necessary for compatible Chevrolet Firefly, Pontiac Forsa, or Suzuki Sprint models.

Quality Assurance and Warranty

The GM-8117 CV Axle Shaft is a new, remanufactured-quality component from TrakMotive, built to meet OEM standards. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and fitment accuracy for the intended vehicle applications.
