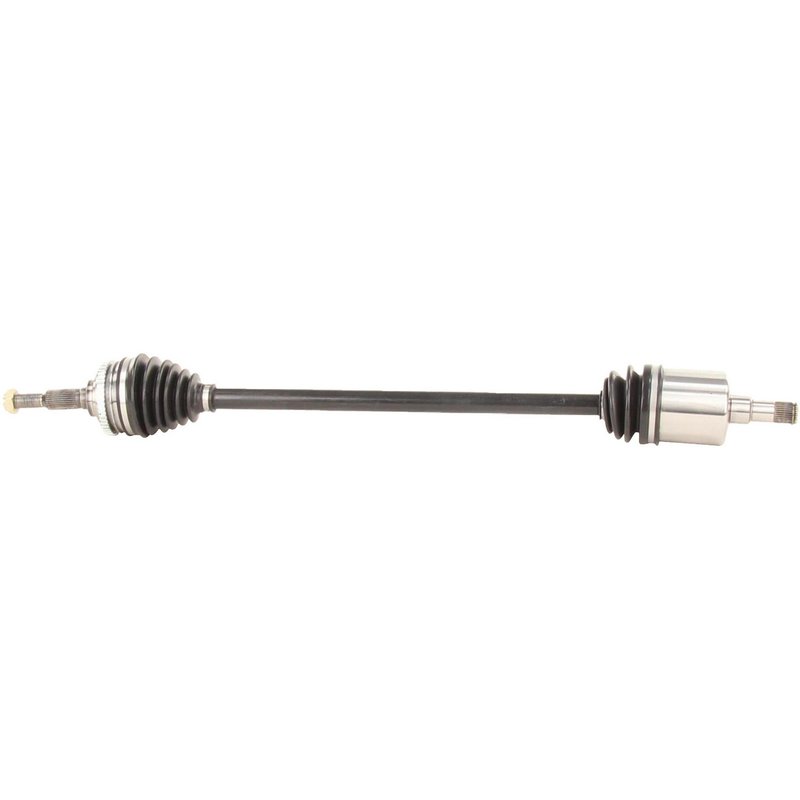

TrakMotive GM-8132 CV Axle Shaft - Front Right

Overview of TrakMotive GM-8132 CV Axle Shaft

The TrakMotive GM-8132 CV Axle Shaft is engineered for reliable driveline performance in Chevrolet Cavalier and Pontiac Sunfire models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Chevrolet Cavalier and Pontiac Sunfire
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for enhanced durability
• Self-locking hex axle nut included (M20*1.5 thread size)
• Overall compressed length of 37.74 inches (958.5 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV axle shaft features a male inboard joint type with 34 splines and a conventional outboard joint with 33 splines, ensuring compatibility and smooth power transfer. The inclusion of a toothed ABS ring and tone ring supports accurate wheel speed sensor readings, critical for ABS functionality in Chevrolet Cavalier and Pontiac Sunfire vehicles.

Technical Specifications and Features

This CV axle shaft (part number GM-8132) is constructed with a neoprene boot to resist wear and environmental damage. The axle nut is a self-locking hex type, measuring 30 mm across flats with a height of 14 mm, and a length of 34.6 mm, designed to secure the axle firmly in place. The overall compressed length of 37.74 inches (958.5 mm) ensures proper fitment within the driveline assembly. The inboard shaft connection is male with 34 splines, while the outboard connection is conventional with 33 splines, matching factory specifications for the specified vehicle models.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Chevrolet Cavalier and Pontiac Sunfire
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures driveline components with included self-locking axle nut

Installation Notes and Tips

When installing the TrakMotive GM-8132 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Verify the ABS tone ring is properly aligned with the wheel speed sensor for accurate ABS operation. Inspect the neoprene boot for any damage during installation to prevent premature failure. This part is designed for direct replacement on compatible Chevrolet Cavalier and Pontiac Sunfire models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive GM-8132 CV Axle Shaft is a new, OEM-quality replacement part manufactured to meet or exceed original equipment standards. It includes a self-locking axle nut and ABS tone ring to maintain vehicle safety systems. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and durability.
