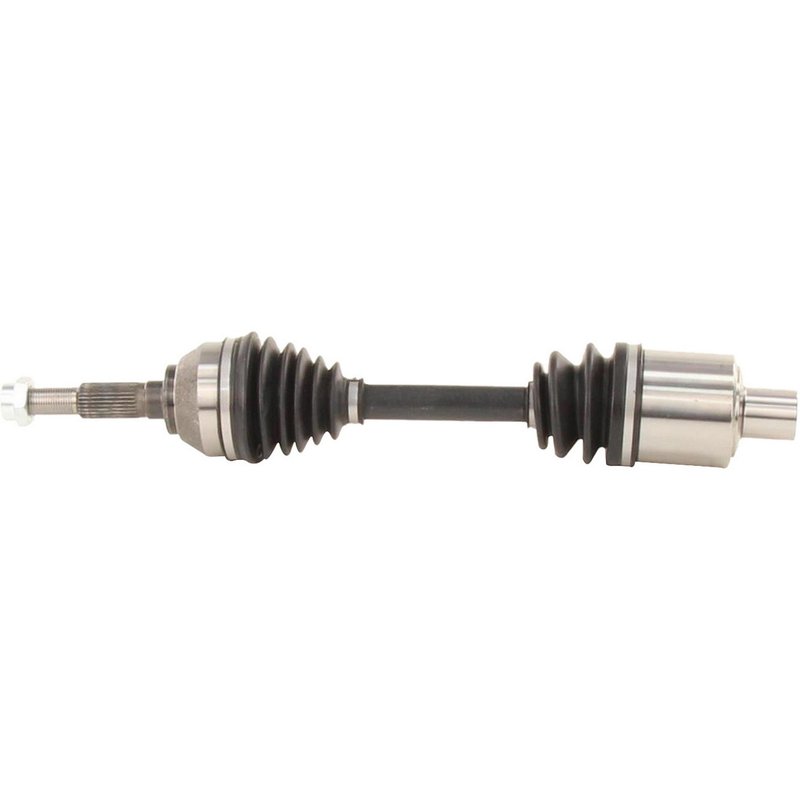

TrakMotive GM-8138 CV Axle Shaft - Front Right

Overview of TrakMotive GM-8138 CV Axle Shaft

The TrakMotive GM-8138 CV Axle Shaft is designed for reliable driveline performance in Chevrolet and GMC vehicles. This new CV axle shaft is engineered to meet the specific requirements of models like the Blazer, Jimmy, S10, and Sonoma, ensuring proper fit and function.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8138
• Compatible with Chevrolet Blazer, GMC Jimmy, Chevrolet S10, GMC Sonoma
• Axle Nut Included with Self-locking Hex Head
• Neoprene Boot Material for Durability
• Inboard Joint Type: Female with 26 Splines
• Outboard Joint Type: Conventional with 27 Splines
• Overall Compressed Length: 23.27 inches (591 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed for direct replacement applications. This line emphasizes precise fitment and durability, featuring components like neoprene boots and self-locking axle nuts to maintain driveline integrity. The GM-8138 model is part of this line, engineered specifically for select Chevrolet and GMC trucks and SUVs.

Technical Specifications and Features

The GM-8138 CV Axle Shaft includes a self-locking axle nut with a hex head measuring 36 mm (1 3/7 inches) across flats and a height of 21.5 mm (6/7 inches). The axle nut length is 41.5 mm (1 5/8 inches), and the thread size is M24x2. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint features a female connection style with 26 splines, while the outboard joint uses a conventional connection with 27 splines. The overall compressed length of 23.27 inches (591 mm) ensures proper fitment within the driveline assembly.

Applications and Common Issues Addressed

• Replacement of worn or damaged CV axle shafts on Chevrolet Blazer and GMC Jimmy models
• Repair of axle shaft failures causing vibration or noise in Chevrolet S10 and GMC Sonoma vehicles
• Restoration of driveline performance after boot damage or joint wear
• Resolution of axle nut loosening issues with included self-locking nut
• Addressing axle shaft length or spline mismatch in compatible models

Installation Notes and Tips

When installing the GM-8138 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the axle housing and surrounding components for wear or damage before installation. The neoprene boot should be checked for proper seating to prevent contamination. This CV axle shaft is designed for direct replacement, so no modifications should be necessary for compatible Chevrolet and GMC models.

Quality Assurance and Warranty

The TrakMotive GM-8138 CV Axle Shaft is a new, not remanufactured, component built to meet OEM standards. It includes a self-locking axle nut and durable neoprene boot to enhance longevity. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Chevrolet and GMC driveline applications.
