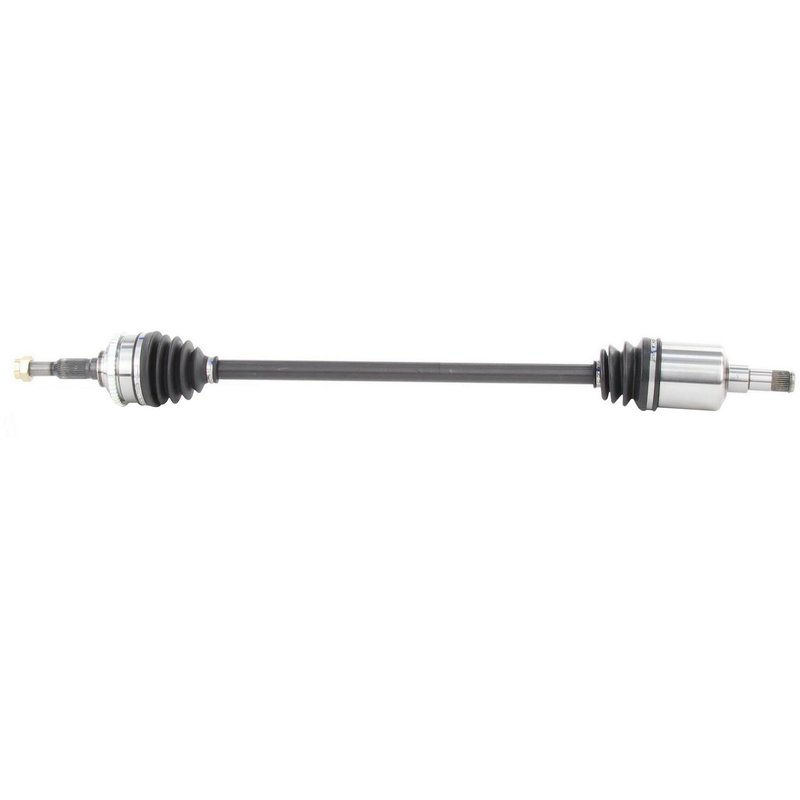

TrakMotive GM-8139 CV Axle Shaft - Front Right
| Brand | TrakMotive GM-8139 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 29.4 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 37.01 |
| Overall Compressed Length (mm) | 940 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet and Pontiac · 12 vehicles |
OE-style replacement. New CV axle shaft built for a direct-fit driveline repair.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Toothed ring supports accurate wheel speed signal output.
Cross-references Anchor 9464, Cardone New 66-1339 and Cardone Reman 60-1339 for the same application. See all 24.
CV Axle Shaft for Cavalier and Sunfire
TrakMotive GM-8139 is a new CV axle shaft for the front right position on select 2000-2005 Chevrolet Cavalier and Pontiac Sunfire models. It is built for direct driveline replacement where a worn axle can cause vibration, clicking, or loss of smooth power transfer.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: GM-8139
- Fits front right applications on 2000-2005 Chevrolet Cavalier and Pontiac Sunfire
- New axle assembly with neoprene boot material
- Inboard joint type: male; outboard joint type: conventional
- 34 inboard splines and 33 outboard splines
- Includes axle nut with self-lock design, M20 x 1.5 thread, and 29.4 mm hex size
- ABS tone ring included; 48-tooth toothed ABS ring
- Overall compressed length: 37.01 in (940 mm)
Product Details
TrakMotive GM-8139 is part of the CV Axle Shaft line, built for driveline service where precise fit and consistent joint operation matter. This axle is configured for the front right side and includes ABS-related components for applications that require wheel speed signal support. The neoprene boot material helps protect the CV joints from road contamination while maintaining flexibility in normal suspension movement. This part cross-references Cardone New 66-1339 for the same application.
Fits 2000-2005 Chevrolet Cavalier, front right. Fits 2000-2005 Pontiac Sunfire, front right. Use GM-8139 when replacing a worn or noisy axle on these vehicles and when matching the listed spline count, length, and ABS configuration is required.
Common Repair Symptoms
- Clicking or popping during turns
- Vibration during acceleration
- Grease leakage from a damaged CV boot
- Axle shaft play or worn joint movement
- ABS warning concerns related to axle-mounted tone ring wear
Installation Notes
Verify front right fitment, spline count, axle length, and ABS ring configuration before installation. Confirm axle nut thread size and hex size match the vehicle specification. Inspect hub, seals, and surrounding suspension components during replacement to help prevent repeat driveline noise or premature wear.
Quality Assurance
TrakMotive lists this axle as a new part and notes ISO 9001:1007 and TS 16949:2009 certified company manufacturing. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Chevrolet | Cavalier | Manual | Front Right | CV Axle Shaft |
| 2005 | Pontiac | Sunfire | Manual | Front Right | CV Axle Shaft |
| 2004 | Chevrolet | Cavalier | Manual | Front Right | CV Axle Shaft |
| 2004 | Pontiac | Sunfire | Manual | Front Right | CV Axle Shaft |
| 2003 | Chevrolet | Cavalier | Manual | Front Right | CV Axle Shaft |
| 2003 | Pontiac | Sunfire | Manual | Front Right | CV Axle Shaft |
| 2002 | Chevrolet | Cavalier | Manual | Front Right | CV Axle Shaft |
| 2002 | Pontiac | Sunfire | Manual | Front Right | CV Axle Shaft |
| 2001 | Chevrolet | Cavalier | Manual | Front Right | CV Axle Shaft |
| 2001 | Pontiac | Sunfire | Manual | Front Right | CV Axle Shaft |
| 2000 | Chevrolet | Cavalier | Manual | Front Right | CV Axle Shaft |
| 2000 | Pontiac | Sunfire | Manual | Front Right | CV Axle Shaft |
