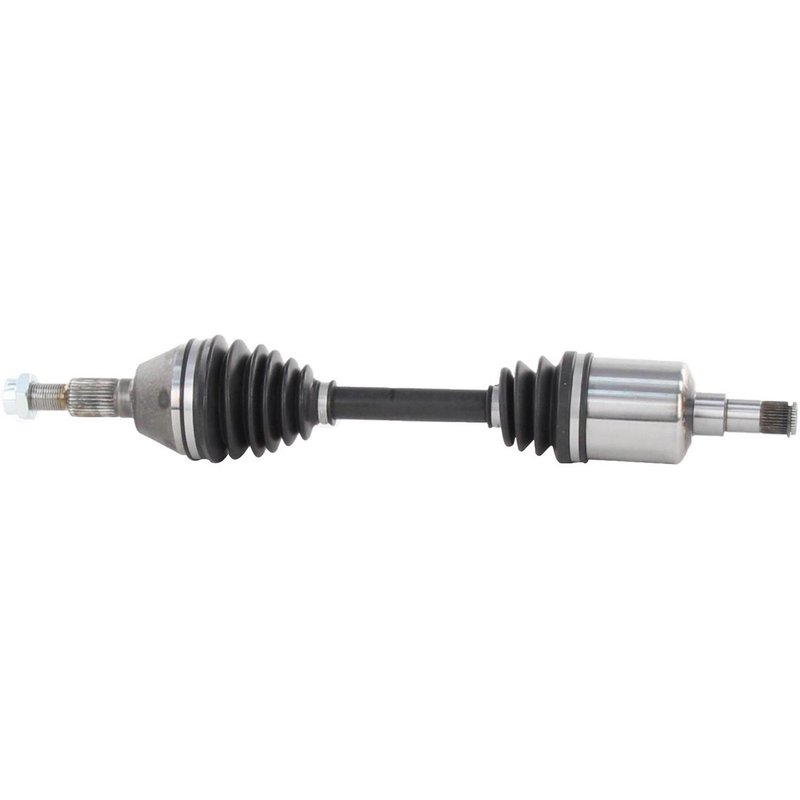

TrakMotive GM-8142 CV Axle Shaft - Front Left

CV Axle Shaft for Front Left Applications

The TrakMotive GM-8142 CV axle shaft is a new driveline replacement for front left applications on select Oldsmobile Alero and Pontiac Grand Am models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct-fit service on the listed vehicles.

TrakMotive’s CV Axle Shaft line focuses on replacement axles built to meet common OE-style fitment needs. This GM-8142 axle includes the axle nut and is backed by TrakMotive’s limited lifetime warranty, with manufacturing from an ISO 9001:1007 and TS 16949:2009 certified company.

Key Features

• Part number GM-8142
• Fits front left position applications
• New CV axle shaft for driveline repair
• Neoprene boot material
• Male inboard shaft connection with 34 inboard splines
• Conventional outboard joint with 30 outboard splines
• Axle nut included, M24 x 2 thread size, 36 mm hex
• Overall compressed length: 23.82 in. (605 mm)
• No ABS tone ring included

Detailed Description

GM-8142 is a TrakMotive CV axle shaft engineered for the front left side of 1999-2004 Oldsmobile Alero and 1999-2004 Pontiac Grand Am models. It measures 23.82 inches compressed length and uses a male inboard shaft connection with a conventional outboard joint, making it a direct replacement choice for the specified driveline layout. The included self-lock axle nut uses an M24 x 2 thread and 36 mm hex head.

This part cross-references Cardone New 66-1336 and Anchor 9467 for the same application. If you are searching for a front left CV axle shaft for a 1999-2004 Oldsmobile Alero or a 1999-2004 Pontiac Grand Am, GM-8142 is the cataloged replacement reference to verify against your vehicle’s original axle configuration.

Common Repair Uses

• Clicking or popping during turns from a worn CV joint
• Vibration or shudder during acceleration
• Torn boot or grease loss at the axle assembly
• Noise from a damaged front left driveline shaft
• Restoring proper axle engagement on listed Alero and Grand Am models

Installation Notes and Tips

Confirm front left fitment by matching the vehicle year, model, and axle configuration before installation. Verify spline count, compressed length, and axle nut thread size against the original part. The axle nut is included; the axle does not include an ABS tone ring. For best results, inspect related suspension and hub components during replacement.

Quality Assurance

TrakMotive manufactures this CV axle shaft as a new replacement part and backs it with a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified production standards.

• Fits 1999-2004 Oldsmobile Alero, front left
• Fits 1999-2004 Pontiac Grand Am, front left
