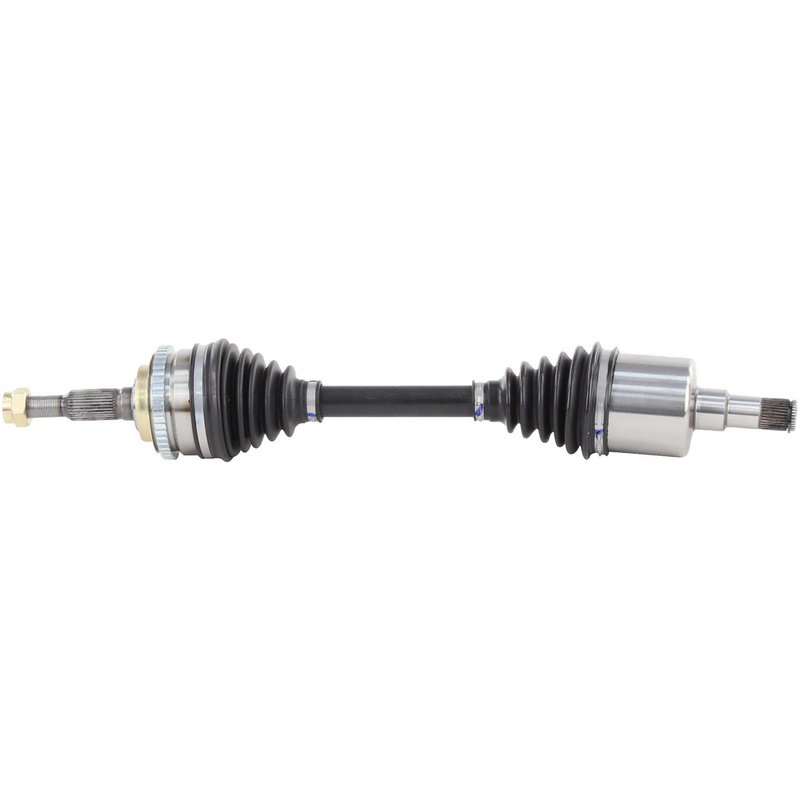

TrakMotive GM-8150 CV Axle Shaft - Front Left

Reliable CV Axle Shaft for Chevrolet Cavalier and Pontiac Sunfire

The TrakMotive GM-8150 CV Axle Shaft is engineered to restore driveline performance for Chevrolet Cavalier and Pontiac Sunfire models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Chevrolet Cavalier and Pontiac Sunfire
• Includes a 48-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Features a self-locking hex axle nut (M20*1.5 thread size) included for secure installation
• Overall compressed length of 23.62 inches (600 mm) for exact fit
• Inboard joint type is male with 34 splines; outboard joint is conventional with 33 splines

TrakMotive CV Axle Shaft Product Line Overview

The TrakMotive CV Axle Shaft product line focuses on delivering reliable driveline components that meet OEM specifications. This line emphasizes quality materials such as neoprene boots and precision-machined joints to ensure long service life and consistent performance. The GM-8150 part exemplifies this approach by combining robust construction with exact fitment for select GM vehicles.

Detailed Product Description and Specifications

The GM-8150 CV Axle Shaft is a new, direct replacement part designed specifically for the Chevrolet Cavalier and Pontiac Sunfire. It features a 48-tooth ABS tone ring with a toothed design, which is included to maintain proper ABS sensor function. The axle nut is a self-locking hex type, measuring 29.4 mm across flats and 20 mm in height, ensuring secure fastening during operation. The neoprene boot material provides resistance to wear and environmental damage, protecting the CV joint from dirt and moisture. The inboard joint uses a male connection style with 34 splines, while the outboard joint is conventional with 33 splines, matching factory specifications. The overall compressed length of 23.62 inches (600 mm) ensures proper alignment and fit within the vehicle's driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Chevrolet Cavalier and Pontiac Sunfire
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included self-locking axle nut

Installation Notes and Tips

• Verify vehicle compatibility with Chevrolet Cavalier or Pontiac Sunfire before installation
• Use proper torque specifications for the M20*1.5 self-locking axle nut to ensure secure fit
• Inspect surrounding suspension components during installation for additional wear
• Ensure ABS sensor alignment with the 48-tooth toothed ABS ring for accurate readings
• Replace axle nut with the included new nut to maintain locking integrity

Quality Assurance and Warranty Information

The TrakMotive GM-8150 CV Axle Shaft is manufactured to meet or exceed OEM standards for fit, form, and function. Each unit undergoes quality inspections to ensure durability and performance. This part is sold as new and includes all necessary components such as the axle nut and ABS tone ring. Warranty coverage details should be confirmed with the distributor or vehicle service provider.
