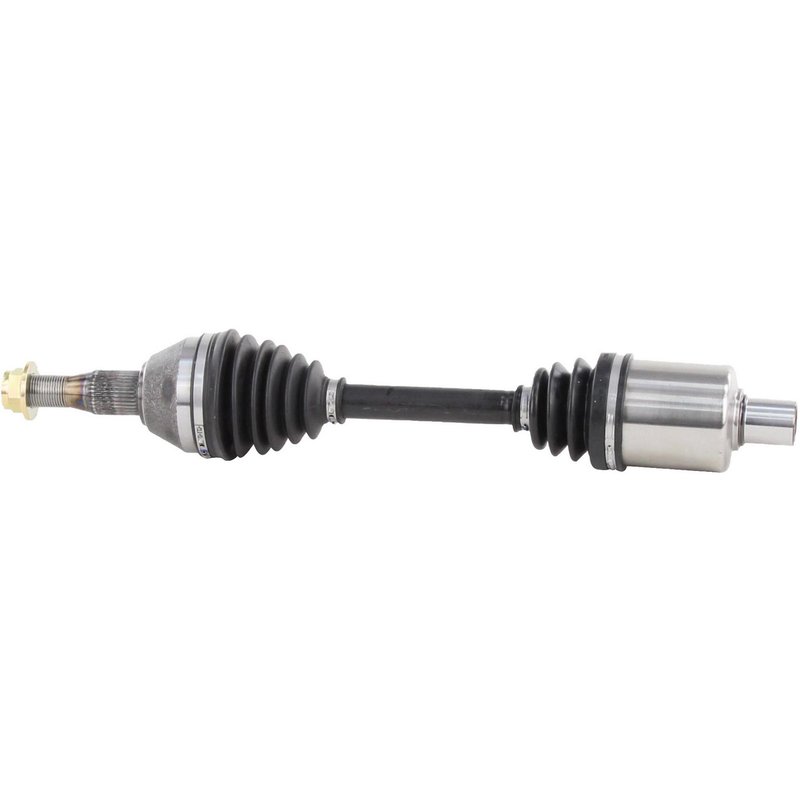

TrakMotive GM-8153 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8153 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 2/7 |
| Axle Nut Hex Size (mm) | 32.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.9 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.36 |
| Overall Compressed Length (mm) | 568 |
| Product line | CV Axle Shaft |
| Fits | Buick, Chevrolet, Pontiac, and Saturn · 50 vehicles |
OE direct replacement. New CV axle shaft with a bolt-on fit and included axle nut.
Neoprene boot. Durable material helps protect the joint from dirt and moisture.
Certified quality. Built by an ISO 9001 and TS 16949 certified company.
Cross-references Cardone New 66-1444, Cardone Reman 60-1344 and Cardone Reman 60-1444 for the same application. See all 25.
Front Left CV Axle Shaft for GM-8153
TrakMotive GM-8153 is a new front left CV axle shaft built for select Buick, Chevrolet, Pontiac, and Saturn applications. It is engineered with a neoprene boot, a self-locking axle nut, and OE-style spline counts for direct replacement service on the listed vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: GM-8153
- New replacement axle shaft for front left applications
- Inboard joint type: female
- Outboard joint type: conventional
- Boot material: neoprene
- Axle nut included with self-locking design
- Axle nut thread size: M27*2
- Overall compressed length: 22.36 in. (568 mm)
- ABS tone ring not included
Product Details
This TrakMotive CV axle shaft is built for front left driveline service on vehicles such as the 2009-2011 Buick Lucerne, 2005-2009 Chevrolet Uplander, 2005-2007 Buick Rendezvous, 2005-2007 Buick Terraza, 2005-2007 Saturn Relay, and 2000-2005 Buick Park Avenue. The GM-8153 uses 34 inboard splines and 33 outboard splines, with a conventional outboard joint and female inboard connection for the specified fitments. TrakMotive GM-8153 also cross-references Cardone New 66-1444 for the same application.
What It Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration or shudder under acceleration from a damaged axle shaft
- Torn or leaking axle boot conditions that expose the joint to contamination
- Excessive drivetrain play caused by spline or joint wear
- Front left axle replacement needs on the listed Buick, Chevrolet, Pontiac, and Saturn models
Installation Notes and Tips
Verify spline count, axle nut thread size, and compressed length before installation. This axle uses a hex axle nut with M27*2 threads and a 32.8 mm hex size. ABS axles fit non-ABS applications unless otherwise noted, and this unit does not include an ABS tone ring. Confirm the vehicle’s front left position and match the listed year, make, and model before service.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. The GM-8153 is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2011 | Buick | Lucerne | — | — | 3.9L | V6 | Front Left | CV Axle Shaft |
| 2010 | Buick | Lucerne | — | — | 3.9L | V6 | Front Left | CV Axle Shaft |
| 2009 | Buick | Lucerne | — | — | 3.9L | V6 | Front Left | CV Axle Shaft |
| 2009 | Chevrolet | Uplander | — | FWD | — | — | Front Left | CV Axle Shaft |
| 2009 | Pontiac | Montana | SV6 | FWD | — | — | Front Left | CV Axle Shaft |
| 2008 | Chevrolet | Uplander | — | FWD | — | — | Front Left | CV Axle Shaft |
| 2008 | Pontiac | Montana | SV6 | FWD | — | — | Front Left | CV Axle Shaft |
| 2007 | Buick | Rendezvous | — | FWD | — | — | Front Left | CV Axle Shaft |
| 2007 | Buick | Terraza | — | FWD | — | — | Front Left | CV Axle Shaft |
| 2007 | Chevrolet | Uplander | — | FWD | — | — | Front Left | CV Axle Shaft |
| 2007 | Pontiac | Montana | — | — | — | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2007 | Saturn | Relay | 3 | FWD | — | — | Front Left | CV Axle Shaft |
| 2007 | Saturn | Relay | 2 | FWD | — | — | Front Left | CV Axle Shaft |
| 2007 | Saturn | Relay | 1 | FWD | — | — | Front Left | CV Axle Shaft |
| 2006 | Buick | Rendezvous | — | FWD | — | — | Front Left | CV Axle Shaft |
| 2006 | Buick | Rendezvous | — | AWD | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2006 | Buick | Rendezvous | — | AWD | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2006 | Buick | Terraza | — | FWD | — | — | Front Left | CV Axle Shaft |
| 2006 | Buick | Terraza | — | AWD | — | — | Front Left | CV Axle Shaft |
| 2006 | Chevrolet | Uplander | — | FWD | — | — | Front Left | CV Axle Shaft |
| 2006 | Chevrolet | Uplander | — | AWD | — | — | Front Left | CV Axle Shaft |
| 2006 | Pontiac | Montana | SV6 | AWD | — | — | Front Left | CV Axle Shaft |
| 2006 | Saturn | Relay | 3 | FWD | — | — | Front Left | CV Axle Shaft |
| 2006 | Saturn | Relay | 3 | AWD | — | — | Front Left | CV Axle Shaft |
| 2006 | Saturn | Relay | 2 | FWD | — | — | Front Left | CV Axle Shaft |
| 2005 | Buick | Park Avenue | Ultra | — | — | — | Front Left | CV Axle Shaft |
| 2005 | Buick | Rendezvous | — | FWD | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2005 | Buick | Rendezvous | — | AWD | 3.6L | V6 | Front Left | CV Axle Shaft |
| 2005 | Buick | Terraza | — | FWD | — | — | Front Left | CV Axle Shaft |
| 2005 | Buick | Terraza | — | AWD | — | — | Front Left | CV Axle Shaft |
| 2005 | Chevrolet | Uplander | — | FWD | — | — | Front Left | CV Axle Shaft |
| 2005 | Chevrolet | Uplander | — | AWD | — | — | Front Left | CV Axle Shaft |
| 2005 | Pontiac | Montana | SV6 | FWD | — | — | Front Left | CV Axle Shaft |
| 2005 | Pontiac | Montana | SV6 | AWD | — | — | Front Left | CV Axle Shaft |
| 2005 | Saturn | Relay | 3 | FWD | — | — | Front Left | CV Axle Shaft |
| 2005 | Saturn | Relay | 3 | AWD | — | — | Front Left | CV Axle Shaft |
| 2005 | Saturn | Relay | 2 | FWD | — | — | Front Left | CV Axle Shaft |
| 2005 | Saturn | Relay | 2 | AWD | — | — | Front Left | CV Axle Shaft |
| 2004 | Buick | Park Avenue | Ultra | — | — | — | Front Left | CV Axle Shaft |
| 2004 | Buick | Rendezvous | — | — | — | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2003 | Buick | Park Avenue | Ultra | — | — | — | Front Left | CV Axle Shaft |
| 2003 | Buick | Rendezvous | — | — | — | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2003 | Pontiac | Bonneville | — | — | — | — | Front Left | CV Axle Shaft |
| 2002 | Buick | Park Avenue | Ultra | — | — | — | Front Left | CV Axle Shaft |
| 2002 | Buick | Rendezvous | — | — | — | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2002 | Pontiac | Bonneville | — | — | — | — | Front Left | CV Axle Shaft |
| 2001 | Buick | Park Avenue | Ultra | — | — | — | Front Left | CV Axle Shaft |
| 2001 | Pontiac | Bonneville | — | — | — | — | Front Left | CV Axle Shaft |
| 2000 | Buick | Park Avenue | Ultra | — | — | — | Front Left | CV Axle Shaft |
| 2000 | Pontiac | Bonneville | — | — | — | — | Front Left | CV Axle Shaft |
