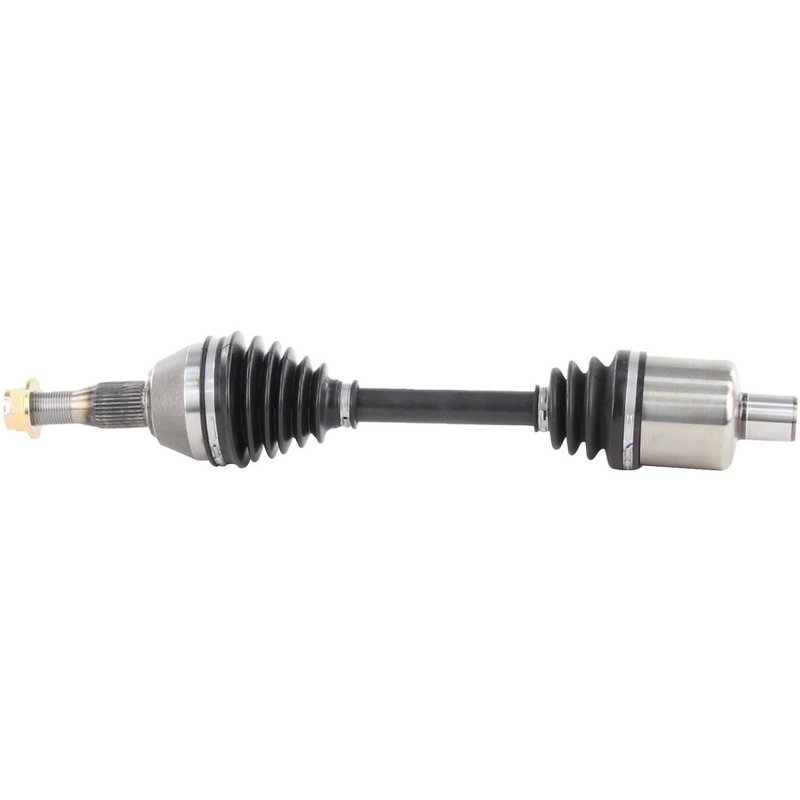

TrakMotive GM-8160 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft GM-8160

The TrakMotive CV Axle Shaft GM-8160 is designed specifically for Buick Aztek and Pontiac Rendezvous models. This new CV axle shaft provides reliable driveline performance with precise fitment and durable construction to maintain vehicle stability and power transfer.

• Compatible with Buick Aztek and Pontiac Rendezvous
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced durability
• Female inboard joint with 34 splines and conventional outboard joint with 33 splines
• Overall compressed length of 22.6 inches (574 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts engineered for specific vehicle applications. This line emphasizes precise joint types and connection styles, such as the female inboard joint and conventional outboard joint found in the GM-8160, ensuring compatibility and reliable driveline operation for select Buick and Pontiac models.

Technical Specifications and Features

The GM-8160 CV axle shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The axle nut included is a self-locking type with a hex head measuring 1 2/7 inches (32.8 mm) across flats and a length of 1 1/2 inches (37.9 mm). The axle nut thread size is M27x2, and the nut height is approximately 6/7 inches (22 mm). The inboard joint is female with 34 splines, while the outboard joint is conventional with 33 splines, providing secure shaft connections. The overall compressed length of 22.6 inches (574 mm) ensures proper fitment within the driveline assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Buick Aztek and Pontiac Rendezvous
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage or torn CV boots causing joint wear
• Restores driveline stability and smooth power transfer to wheels
• Prevents axle nut loosening with included self-locking nut

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before removing the old axle shaft. Verify spline counts and joint types match the GM-8160 specifications for proper fitment. Use the included self-locking hex axle nut (M27x2 thread) and torque to manufacturer specifications. Inspect the neoprene boot for any damage during installation and avoid overextending the CV joint. Proper alignment and secure fastening are critical for driveline performance and safety.

Quality Assurance and Warranty

The TrakMotive GM-8160 CV Axle Shaft is a new, not remanufactured, component manufactured to meet OEM standards for fit and function. The product includes a self-locking axle nut to enhance safety and reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance in Buick Aztek and Pontiac Rendezvous applications.
