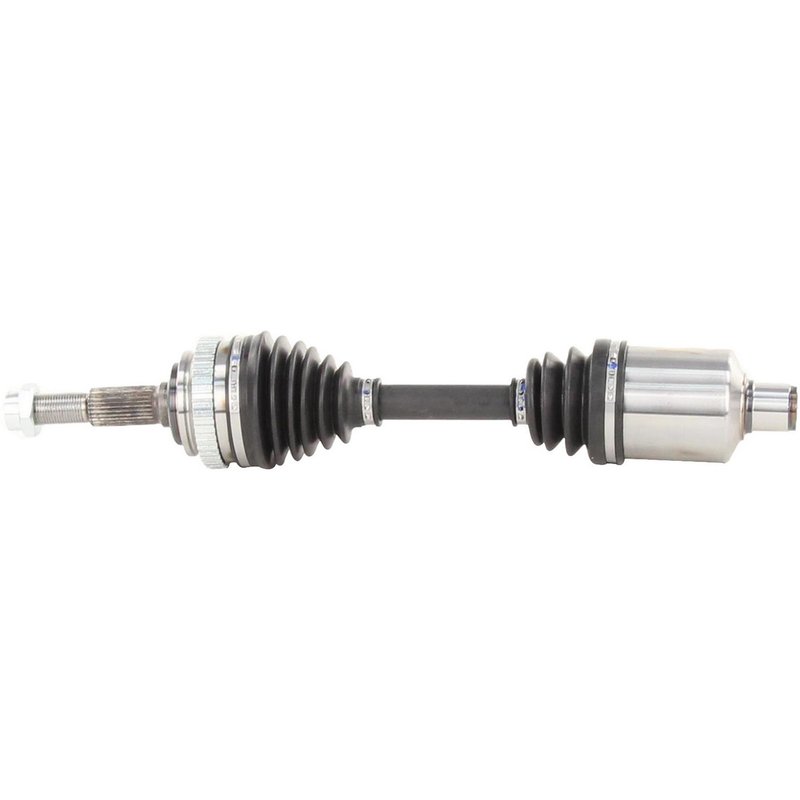

TrakMotive GM-8170 CV Axle Shaft - Front Left

Overview of TrakMotive GM-8170 CV Axle Shaft

The TrakMotive GM-8170 CV Axle Shaft is designed for reliable driveline performance in select Buick, Chevrolet, Oldsmobile, and Pontiac vehicles. This new CV axle shaft is engineered to meet OEM specifications, ensuring proper fit and function for models such as the Buick Century, Chevrolet Celebrity, Oldsmobile Cutlass Ciera, and Pontiac Cutlass Cruiser.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8170
• ABS Ring: 47-tooth toothed type with tone ring included
• Axle Nut: Hex head, self-locking, M24x2 thread size, 36 mm hex size
• Boot Material: Durable neoprene
• Inboard Joint: Female type with 35 splines
• Outboard Joint: Conventional type with 27 splines
• Overall Compressed Length: 20.94 inches (532 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precision-engineered constant velocity components that maintain driveline integrity and vehicle safety. This line includes new CV axle shafts designed to match factory specifications, featuring quality materials such as neoprene boots and self-locking axle nuts to ensure durability and secure installation. The GM-8170 is part of this line, providing a direct replacement for specific GM vehicles requiring a 47-tooth ABS ring and conventional joint types.

Technical Description and Features

The GM-8170 CV Axle Shaft features a 47-tooth ABS ring with a toothed design and an included tone ring, which supports accurate wheel speed sensor readings for ABS systems. The axle nut is a self-locking hex type with a 36 mm hex size and a length of 41.5 mm, designed to secure the axle firmly in place. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint uses a female connection style with 35 splines, while the outboard joint is conventional with 27 splines, ensuring compatibility with the specified GM models. The overall compressed length of 20.94 inches (532 mm) matches OEM dimensions for proper fitment.

Compatible Vehicles and Applications

• Buick Century
• Chevrolet Celebrity
• Oldsmobile Cutlass Ciera
• Oldsmobile Cutlass Cruiser
• Pontiac 6000

This CV axle shaft is suitable for driveline repairs involving worn or damaged axle shafts, ensuring smooth power transfer from the transmission to the wheels.

Common Issues Addressed by GM-8170 CV Axle Shaft

• Vibration or clicking noises during turns caused by worn CV joints
• Grease leaks from torn or damaged CV boots
• ABS sensor errors due to faulty or missing tone rings
• Loose or damaged axle nuts compromising driveline stability
• Excessive play or movement in the axle shaft assembly

Installation Notes and Tips

When installing the TrakMotive GM-8170 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the axle housing and surrounding components for wear or damage before installation. The neoprene boot should be checked for proper seating to prevent contamination. Use compatible grease for the CV joints and verify the ABS tone ring is correctly positioned for accurate sensor readings.

Quality Assurance and Warranty

The TrakMotive GM-8170 CV Axle Shaft is a new, remanufactured-quality replacement part built to meet or exceed OEM standards. It includes a self-locking axle nut and durable neoprene boot for long service life. Warranty coverage details should be confirmed with the distributor or manufacturer, ensuring confidence in product reliability and performance.
