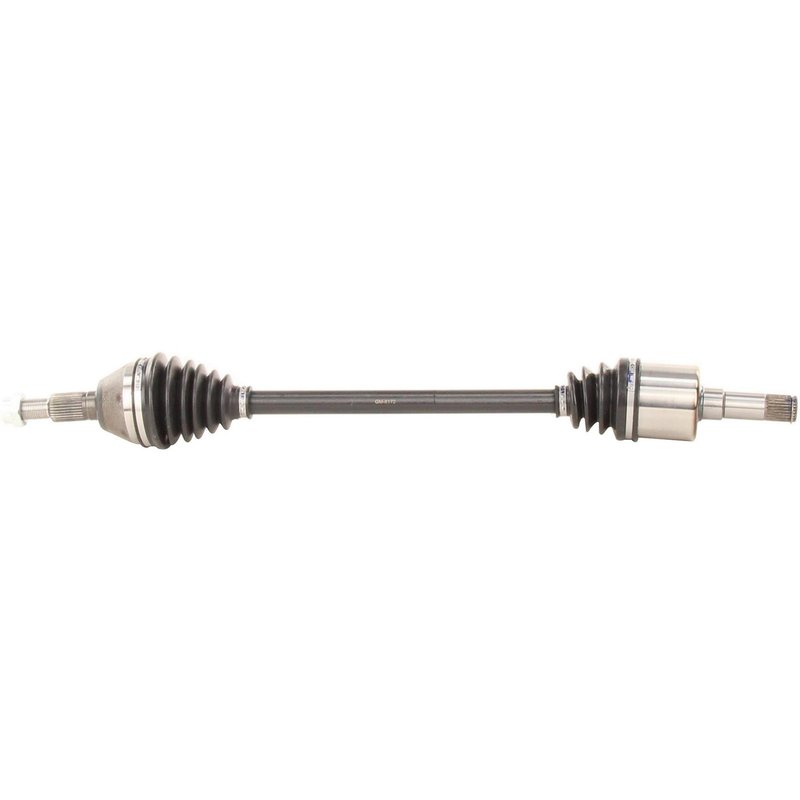

TrakMotive GM-8172 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft GM-8172 for Cadillac CTS

The TrakMotive CV Axle Shaft GM-8172 is designed specifically for Cadillac CTS models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Cadillac CTS vehicles
• Includes self-locking hex axle nut (M24*2 thread size)
• Neoprene boot material for enhanced joint protection
• Overall compressed length of 33.15 inches (842 mm)
• Inboard joint with 27 splines and male connection style
• Outboard joint with 30 splines and conventional connection style
• Axle nut dimensions: 6/7 inches (21.5 mm) height, 1 3/7 inches (36 mm) hex size, 1 5/8 inches (41.5 mm) length

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The GM-8172 part is part of this line, offering a new axle shaft designed to meet OEM specifications for Cadillac CTS models. This ensures compatibility and performance consistency within the driveline and axle system.

Technical Description and Specifications

This CV axle shaft features a neoprene boot that provides resistance to wear and environmental factors, protecting the inboard and outboard joints. The inboard joint is a male type with 27 splines, while the outboard joint is conventional with 30 splines, ensuring proper torque transfer and fitment. The included axle nut is a self-locking hex type with a thread size of M24*2, measuring 21.5 mm in height and 36 mm across the hex, designed to secure the axle shaft firmly in place. The overall compressed length of 33.15 inches (842 mm) matches the OEM requirements for Cadillac CTS vehicles, ensuring proper installation and operation.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Cadillac CTS
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage from torn or degraded CV boots
• Fixes axle shaft play or looseness affecting driveline stability
• Restores proper torque transfer and wheel alignment

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft GM-8172, ensure the vehicle is securely lifted and supported. Remove the old axle shaft carefully, inspecting the hub and transmission seals for wear. Use the included self-locking hex axle nut to secure the new axle shaft, tightening to manufacturer torque specifications. Verify the neoprene boot is properly seated to prevent contamination. It is recommended to check wheel alignment after installation to maintain optimal driveline performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft GM-8172 is a new, not remanufactured, component built to meet or exceed OEM standards for Cadillac CTS vehicles. The part undergoes quality control inspections to ensure durability and fitment accuracy. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
