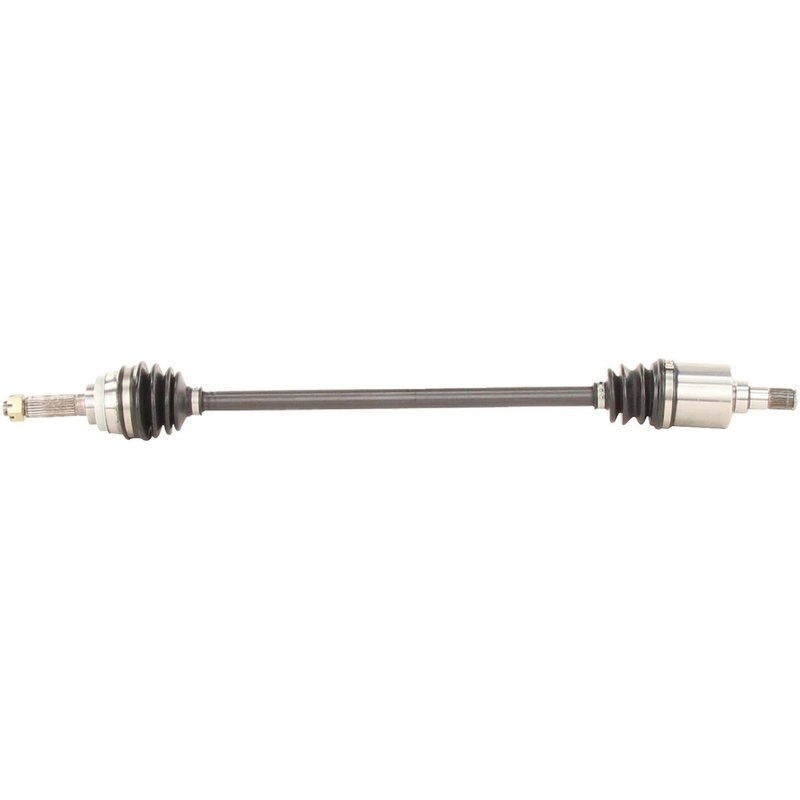

TrakMotive GM-8175 CV Axle Shaft - Front Right

Overview of TrakMotive GM-8175 CV Axle Shaft

The TrakMotive GM-8175 CV Axle Shaft is designed for reliable driveline performance in select Chevrolet, Pontiac, and Suzuki vehicles. This new CV axle shaft is engineered to meet OEM specifications, ensuring proper fit and function for models like the Chevrolet Firefly, Pontiac Forsa, and Suzuki Sprint.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8175
• Compatible with Chevrolet Firefly, Pontiac Forsa, Suzuki Sprint
• Axle Nut Included with Cotter Pin Locking
• Neoprene Boot Material for Durability
• Inboard Joint Type: Male with 22 Splines
• Outboard Joint Type: Conventional with 23 Splines
• Overall Compressed Length: 31.69 inches (805 mm)
• Axle Nut Hex Size: 27 mm (1 inch)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed to restore driveline integrity. This line emphasizes precise fitment and durable materials, such as neoprene boots and properly sized axle nuts with cotter pin locking mechanisms, to maintain vehicle safety and performance. The GM-8175 is part of this line, offering a direct replacement for specific GM and Suzuki models.

Technical Specifications and Features

The GM-8175 CV Axle Shaft features a neoprene boot that provides resistance to wear and environmental damage. The inboard joint is a male type with 22 splines, while the outboard joint is conventional with 23 splines, ensuring compatibility with the drivetrain components of the Chevrolet Firefly, Pontiac Forsa, and Suzuki Sprint. The axle nut included is a hex head type, measuring 27 mm across flats, with a height of 15.5 mm and a length of 31.2 mm, secured by a cotter pin locking system. The overall compressed length of the axle shaft is 31.69 inches (805 mm), matching OEM dimensions for proper installation and operation.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Chevrolet Firefly, Pontiac Forsa, and Suzuki Sprint
• Elimination of axle vibration or clicking noises during turns
• Restoration of smooth power transfer to the wheels
• Repair of torn or leaking CV boots to prevent grease loss
• Correction of axle nut loosening issues with included cotter pin locking

Installation Notes and Tips

When installing the TrakMotive GM-8175 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to prevent loosening. Verify the neoprene boot is properly seated to avoid contamination and premature wear. The male inboard joint and conventional outboard joint should align correctly with the vehicle’s drivetrain components. It is recommended to inspect related suspension and steering parts during installation for overall driveline health.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive products undergo quality control to ensure durability and fitment accuracy. While specific warranty details are not provided here, new parts typically carry manufacturer-backed warranties against defects in materials and workmanship. Always consult product documentation or supplier information for exact warranty terms.
