OE Quality
60-Day Returns
TrakMotivePart #: GM-8188XTT

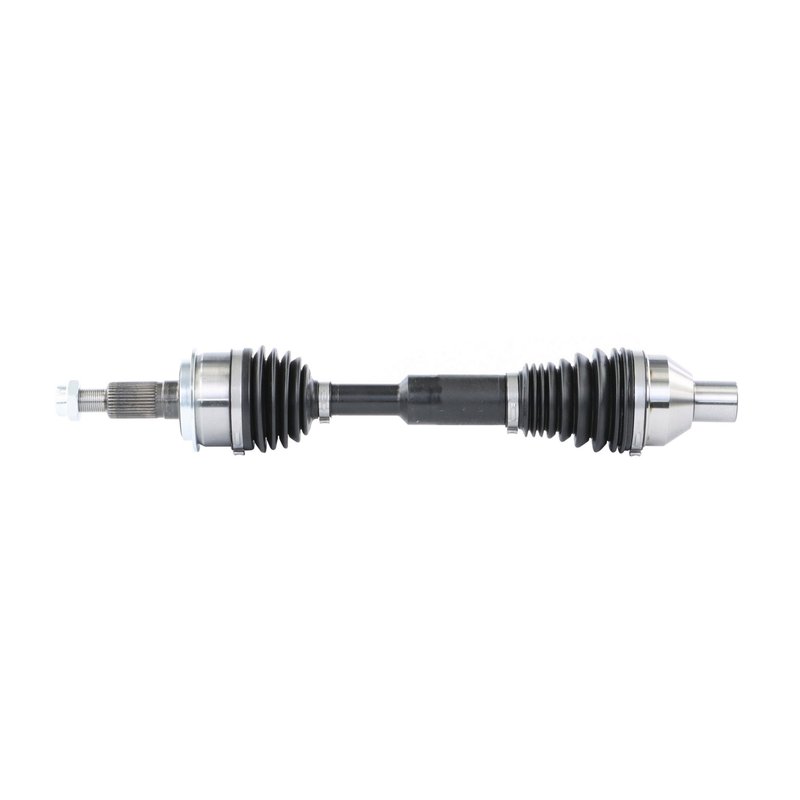

TrakMotive GM-8188XTT CV Axle Shaft - Front
6 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$221.13Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
CV Axle Shaft, Front
Fitment: Chevrolet and GMC, Astro and Safari
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive GM-8188XTT CV Axle Shaft - Front
| Brand | TrakMotive |
|---|---|
| Part Number | GM-8188XTT |
| Position | CV Axle Shaft, Front |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .875 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.44 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.44 |
| Overall Compressed Length (mm) | 596 |
| Overall Extended Length (in) | 25.81 |
| Overall Extended Length (mm) | 656 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Chevrolet | Astro | AWD | Front | Always Replace in Pairs; CV Axle Shaft |
| 2005 | GMC | Safari | AWD | Front | Always Replace in Pairs; CV Axle Shaft |
| 2004 | Chevrolet | Astro | AWD | Front | Always Replace in Pairs; CV Axle Shaft |
| 2004 | GMC | Safari | AWD | Front | Always Replace in Pairs; CV Axle Shaft |
| 2003 | Chevrolet | Astro | AWD | Front | Always Replace in Pairs; CV Axle Shaft |
| 2003 | GMC | Safari | AWD | Front | Always Replace in Pairs; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
GM-8188XTT
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
