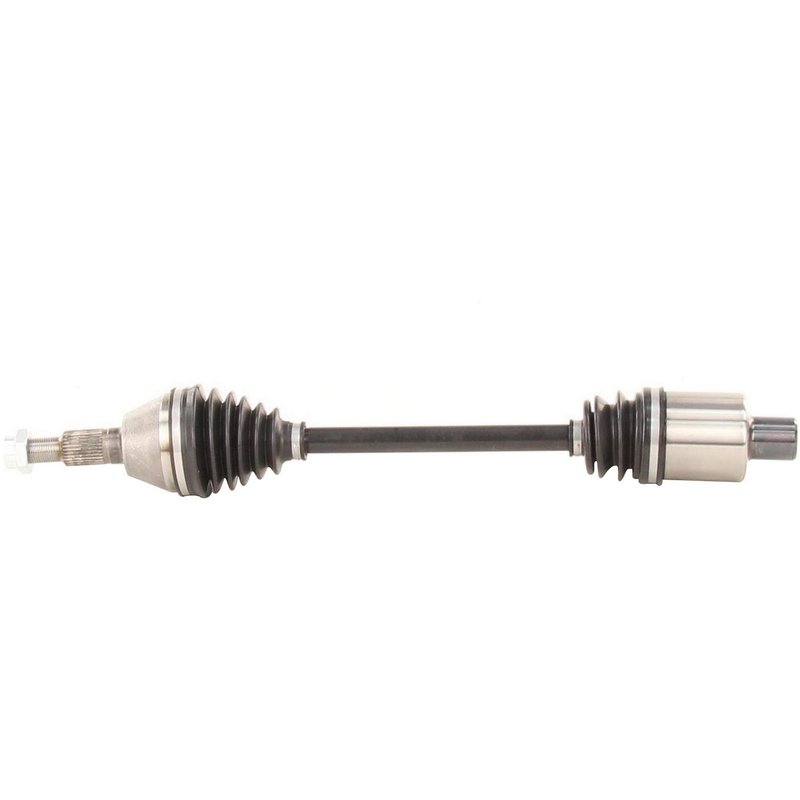

TrakMotive GM-8212 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8212 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34-1T |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.61 |
| Overall Compressed Length (mm) | 676 |
| Product line | CV Axle Shaft |
| Fits | Cadillac · 21 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Convenient for a complete installation.
Cross-references Cardone New 66-1415, Cardone Reman 60-1415 and GSP NCV10236 for the same application. See all 14.
TrakMotive GM-8212 CV Axle Shaft
TrakMotive GM-8212 is a new front left CV axle shaft for select Cadillac applications, including the CTS, STS, and SRX. It is built with a female inboard connection, conventional outboard joint design, and a neoprene boot for dependable driveline service.
Key Features
- Part number GM-8212 CV axle shaft for front left applications
- Fits 2008-2014 Cadillac CTS, front left
- Fits 2005-2011 Cadillac STS, front left
- Fits 2004-2009 Cadillac SRX, front left
- New axle assembly with 34-1T inboard splines and 30 outboard splines
- Includes axle nut with M24 x 2 thread, 36 mm hex size, and self-locking design
- Neoprene boot material for axle joint protection
- No ABS tone ring included
- Overall compressed length: 26.61 in. (676 mm)
Detailed Description
TrakMotive GM-8212 is a replacement CV axle shaft engineered for front left driveline service on select Cadillac CTS, Cadillac STS, and Cadillac SRX models. The axle uses a female inboard shaft connection and a conventional outboard joint layout, with a compressed length of 26.61 inches to match the specified application. This part number GM-8212 is a direct-fit style replacement for vehicles that require the listed spline counts and axle nut specifications.
The TrakMotive CV Axle Shaft product line focuses on replacement driveline components built for specific vehicle fitment. For this application, GM-8212 includes the axle nut and uses a neoprene boot to help protect the joint area during normal operation. This part cross-references Cardone New 66-1415 and Cardone Reman 60-1415 for the same application.
What This Part Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Excessive play in the front left driveline assembly
- Loss of smooth power transfer to the front wheel
Installation Notes and Tips
Verify front left fitment by matching the vehicle year, model, spline count, and axle nut specifications before installation. Inspect the hub, seals, and surrounding suspension components for wear, and confirm the axle seats fully in the transaxle and hub assembly. Because this axle does not include an ABS tone ring, confirm the vehicle does not require one for the listed application.
Quality Assurance
TrakMotive identifies this as a new CV axle shaft and states that the product line is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management practices.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Cadillac | CTS | Wagon | AWD | Front Left | CV Axle Shaft |
| 2014 | Cadillac | CTS | Coupe | AWD | Front Left | CV Axle Shaft |
| 2013 | Cadillac | CTS | — | AWD | Front Left | CV Axle Shaft |
| 2012 | Cadillac | CTS | — | AWD | Front Left | CV Axle Shaft |
| 2011 | Cadillac | CTS | — | AWD | Front Left | CV Axle Shaft |
| 2011 | Cadillac | STS | — | AWD | Front Left | CV Axle Shaft |
| 2010 | Cadillac | CTS | — | AWD | Front Left | CV Axle Shaft |
| 2010 | Cadillac | STS | — | AWD | Front Left | CV Axle Shaft |
| 2009 | Cadillac | CTS | — | AWD | Front Left | CV Axle Shaft |
| 2009 | Cadillac | SRX | — | AWD | Front Left | CV Axle Shaft |
| 2009 | Cadillac | STS | — | AWD | Front Left | CV Axle Shaft |
| 2008 | Cadillac | CTS | — | AWD | Front Left | CV Axle Shaft |
| 2008 | Cadillac | SRX | — | AWD | Front Left | CV Axle Shaft |
| 2008 | Cadillac | STS | — | AWD | Front Left | CV Axle Shaft |
| 2007 | Cadillac | SRX | — | AWD | Front Left | CV Axle Shaft |
| 2007 | Cadillac | STS | — | AWD | Front Left | CV Axle Shaft |
| 2006 | Cadillac | SRX | — | AWD | Front Left | CV Axle Shaft |
| 2006 | Cadillac | STS | — | AWD | Front Left | CV Axle Shaft |
| 2005 | Cadillac | SRX | — | AWD | Front Left | CV Axle Shaft |
| 2005 | Cadillac | STS | — | AWD | Front Left | CV Axle Shaft |
| 2004 | Cadillac | SRX | — | AWD | Front Left | CV Axle Shaft |
