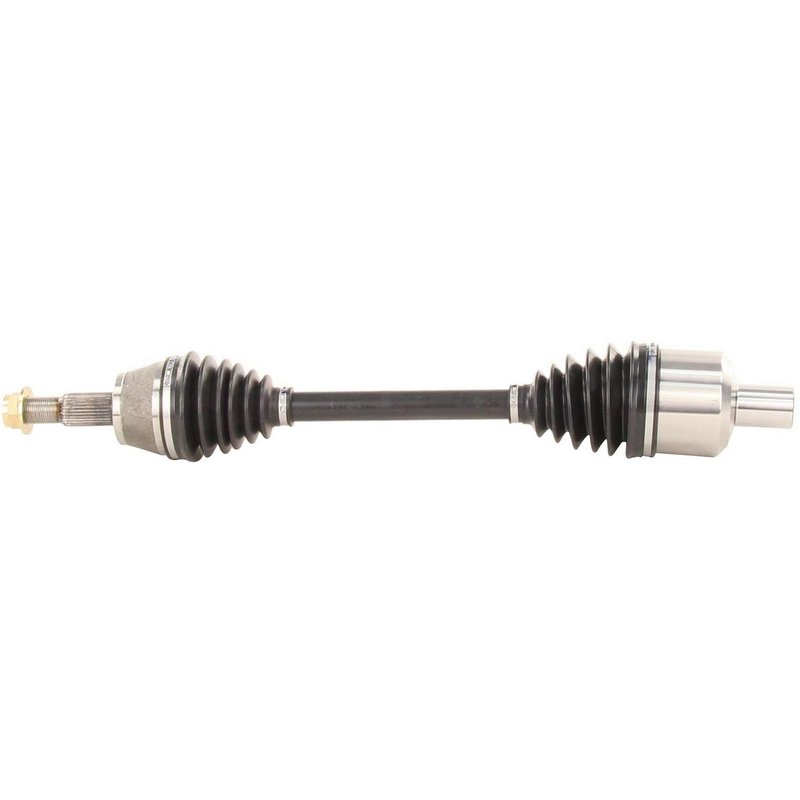

TrakMotive GM-8214 CV Axle Shaft - Rear Left or Rear Right
Overview of TrakMotive GM-8214 CV Axle Shaft
The TrakMotive GM-8214 CV Axle Shaft is designed specifically for Cadillac and Chevrolet vehicles, including the Corvette and XLR models. This new CV axle shaft ensures reliable driveline performance with precise fitment and durable construction.
- Brand: TrakMotive
- Brand Line: CV Axle Shaft
- Part Number: GM-8214
- Compatible with Cadillac Corvette and Chevrolet XLR
- Neoprene boot material for enhanced durability
- Includes self-locking hex axle nut (M27*2 thread size)
- Overall compressed length: 28.82 inches (732 mm)
- Inboard joint type: Female with 41 splines
- Outboard joint type: Conventional with 30 splines
TrakMotive CV Axle Shaft Product Line Details
The TrakMotive CV Axle Shaft line focuses on delivering precise driveline components engineered for specific vehicle applications. This product line emphasizes quality materials such as neoprene boots and includes necessary hardware like self-locking axle nuts to ensure secure installation and long-term reliability. The GM-8214 model is part of this line, tailored for select GM vehicles to maintain factory specifications and performance.
Technical Specifications and Features
The GM-8214 CV Axle Shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The inboard joint is a female type with 41 splines, while the outboard joint is conventional with 30 splines, matching OEM configurations. The included axle nut is a hex head type, measuring 1 2/7 inches (32.8 mm) across flats, with a height of 6/7 inches (22 mm) and a length of 1 1/2 inches (37.9 mm). This nut uses a self-locking mechanism and an M27*2 thread size to ensure secure fastening. The overall compressed length of the axle shaft is 28.82 inches (732 mm), designed to fit the specified Cadillac and Chevrolet models precisely.
Common Applications and Problem Solving
- Replacement for worn or damaged CV axle shafts on Cadillac Corvette and Chevrolet XLR
- Resolves issues related to torn or leaking CV boots
- Addresses axle shaft vibration or clicking noises during turns
- Fixes driveline instability caused by worn splines or joints
- Restores proper axle nut fitment and secure wheel attachment
Installation Notes and Tips
When installing the GM-8214 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the axle housing and surrounding components for wear or damage before installation. The neoprene boot should be checked for proper seating to prevent contamination. Use appropriate tools for the hex head axle nut to avoid rounding or damage.
Quality Assurance and Warranty
This TrakMotive CV Axle Shaft is a new, not remanufactured, component built to meet OEM standards. It includes the axle nut for a complete replacement solution. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and fitment accuracy for Cadillac Corvette and Chevrolet XLR vehicles.
| Brand | TrakMotive |
| Part Number | GM-8214 |
| Position | CV Axle Shaft, Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 2/7 |
| Axle Nut Hex Size (mm) | 32.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.9 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 41 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 28.82 |
| Overall Compressed Length (mm) | 732 |
This part fits 60 vehicles. Search below:
| Year | Make | Model | Submodel | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | Chevrolet | Corvette | Rear Right | Opt. FE2; Opt. FE1; CV Axle Shaft | ||
| 2013 | Chevrolet | Corvette | Rear Left | Opt. FE2; Opt. FE1; CV Axle Shaft | ||
| 2012 | Chevrolet | Corvette | Rear Right | Opt. FE2; Opt. FE1; CV Axle Shaft | ||
| 2012 | Chevrolet | Corvette | Rear Left | Opt. FE2; Opt. FE1; CV Axle Shaft | ||
| 2011 | Chevrolet | Corvette | Rear Right | Opt. FE2; Opt. FE1; CV Axle Shaft | ||
| 2011 | Chevrolet | Corvette | Rear Left | Opt. FE2; Opt. FE1; CV Axle Shaft | ||
| 2010 | Chevrolet | Corvette | Grand Sport | Manual | Rear Right | Opt. MM6; CV Axle Shaft |
| 2010 | Chevrolet | Corvette | Grand Sport | Manual | Rear Left | Opt. MM6; CV Axle Shaft |
| 2010 | Chevrolet | Corvette | Grand Sport | Automatic | Rear Right | w/o Performance Pkg.; CV Axle Shaft |
| 2010 | Chevrolet | Corvette | Grand Sport | Automatic | Rear Left | w/o Performance Pkg.; CV Axle Shaft |
| 2010 | Chevrolet | Corvette | Base | Manual | Rear Right | Opt. MM6; CV Axle Shaft |
| 2010 | Chevrolet | Corvette | Base | Manual | Rear Left | Opt. MM6; CV Axle Shaft |
| 2010 | Chevrolet | Corvette | Base | Automatic | Rear Right | w/o Performance Pkg.; CV Axle Shaft |
| 2010 | Chevrolet | Corvette | Base | Automatic | Rear Left | w/o Performance Pkg.; CV Axle Shaft |
| 2009 | Cadillac | XLR | Rear Right | CV Axle Shaft | ||
| 2009 | Cadillac | XLR | Rear Left | CV Axle Shaft | ||
| 2009 | Chevrolet | Corvette | Base | Manual | Rear Right | Opt. MM6; CV Axle Shaft |
| 2009 | Chevrolet | Corvette | Base | Manual | Rear Left | Opt. MM6; CV Axle Shaft |
| 2009 | Chevrolet | Corvette | Base | Automatic | Rear Right | w/o Performance Pkg.; CV Axle Shaft |
| 2009 | Chevrolet | Corvette | Base | Automatic | Rear Left | w/o Performance Pkg.; CV Axle Shaft |
| 2008 | Cadillac | XLR | Rear Right | CV Axle Shaft | ||
| 2008 | Cadillac | XLR | Rear Left | CV Axle Shaft | ||
| 2008 | Chevrolet | Corvette | Base | Manual | Rear Right | Borg Warner opt. MM6; CV Axle Shaft |
| 2008 | Chevrolet | Corvette | Base | Manual | Rear Left | Borg Warner opt. MM6; CV Axle Shaft |
| 2008 | Chevrolet | Corvette | Base | Automatic | Rear Right | w/o Performance Pkg.; CV Axle Shaft |
| 2008 | Chevrolet | Corvette | Base | Automatic | Rear Left | w/o Performance Pkg.; CV Axle Shaft |
| 2007 | Cadillac | XLR | V | Rear Right | From VIN 75600451; CV Axle Shaft | |
| 2007 | Cadillac | XLR | V | Rear Left | From VIN 75600451; CV Axle Shaft | |
| 2007 | Cadillac | XLR | Base | Rear Right | CV Axle Shaft | |
| 2007 | Cadillac | XLR | Base | Rear Left | CV Axle Shaft | |
| 2007 | Chevrolet | Corvette | Base | Manual | Rear Right | Borg Warner opt. MM6; CV Axle Shaft |
| 2007 | Chevrolet | Corvette | Base | Manual | Rear Left | Borg Warner opt. MM6; CV Axle Shaft |
| 2007 | Chevrolet | Corvette | Base | Automatic | Rear Right | CV Axle Shaft |
| 2006 | Cadillac | XLR | Base | Rear Right | CV Axle Shaft | |
| 2006 | Cadillac | XLR | Base | Rear Left | CV Axle Shaft | |
| 2006 | Chevrolet | Corvette | Base | Manual | Rear Right | Borg Warner opt. MM6; CV Axle Shaft |
| 2006 | Chevrolet | Corvette | Base | Manual | Rear Left | Borg Warner opt. MM6; CV Axle Shaft |
| 2006 | Chevrolet | Corvette | Base | Automatic | Rear Right | CV Axle Shaft |
| 2005 | Cadillac | XLR | Base | Rear Right | CV Axle Shaft | |
| 2005 | Cadillac | XLR | Base | Rear Left | CV Axle Shaft | |
| 2005 | Chevrolet | Corvette | Rear Right | CV Axle Shaft | ||
| 2005 | Chevrolet | Corvette | Rear Left | CV Axle Shaft | ||
| 2004 | Cadillac | XLR | Base | Rear Right | CV Axle Shaft | |
| 2004 | Cadillac | XLR | Base | Rear Left | CV Axle Shaft | |
| 2004 | Chevrolet | Corvette | Rear Right | CV Axle Shaft | ||
| 2004 | Chevrolet | Corvette | Rear Left | CV Axle Shaft | ||
| 2003 | Chevrolet | Corvette | Rear Right | CV Axle Shaft | ||
| 2003 | Chevrolet | Corvette | Rear Left | CV Axle Shaft | ||
| 2002 | Chevrolet | Corvette | Rear Right | CV Axle Shaft | ||
| 2002 | Chevrolet | Corvette | Rear Left | CV Axle Shaft | ||
| 2001 | Chevrolet | Corvette | Rear Right | CV Axle Shaft | ||
| 2001 | Chevrolet | Corvette | Rear Left | CV Axle Shaft | ||
| 2000 | Chevrolet | Corvette | Rear Right | CV Axle Shaft | ||
| 2000 | Chevrolet | Corvette | Rear Left | CV Axle Shaft | ||
| 1999 | Chevrolet | Corvette | Rear Right | CV Axle Shaft | ||
| 1999 | Chevrolet | Corvette | Rear Left | CV Axle Shaft | ||
| 1998 | Chevrolet | Corvette | Rear Right | CV Axle Shaft | ||
| 1998 | Chevrolet | Corvette | Rear Left | CV Axle Shaft | ||
| 1997 | Chevrolet | Corvette | Rear Right | CV Axle Shaft | ||
| 1997 | Chevrolet | Corvette | Rear Left | CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
