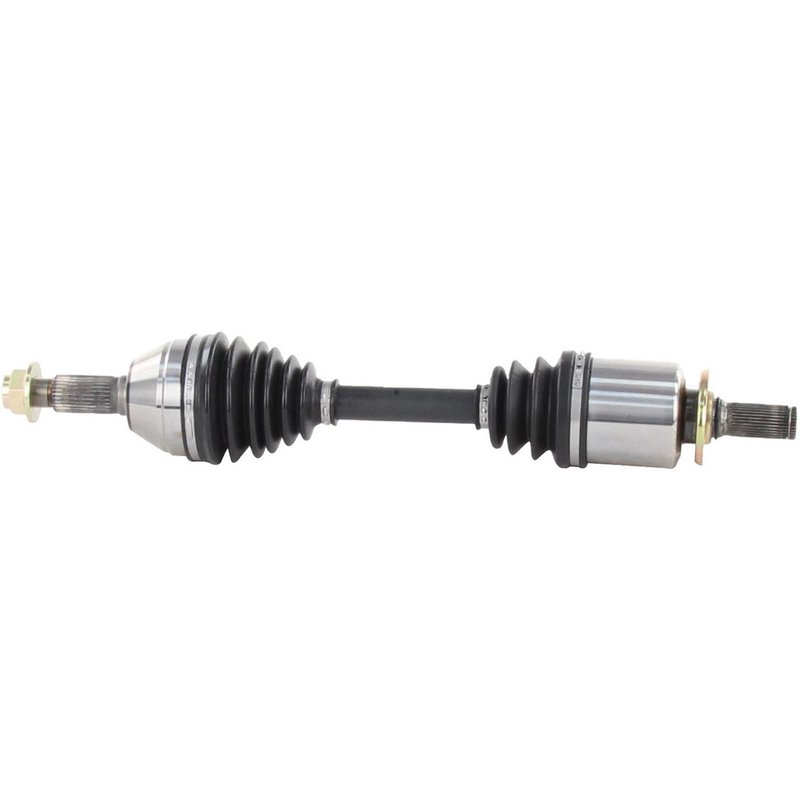

TrakMotive GM-8219 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft GM-8219 for Suzuki Verona

The TrakMotive CV Axle Shaft GM-8219 is designed specifically for Suzuki Verona models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Suzuki Verona
• Includes axle nut with stake locking type
• Neoprene boot material for enhanced durability
• Hex head axle nut with M24*1.5 thread size
• Overall compressed length of 23.46 inches (596 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components engineered for precise fit and function. This line includes shafts with conventional outboard joints and male inboard joints, designed to meet OEM specifications. The GM-8219 model features a neoprene boot and a stake-type locking axle nut, ensuring secure installation and long-lasting performance.

Technical Specifications and Features

The GM-8219 CV axle shaft includes a hex head axle nut measuring 1 1/3 inches (34.4 mm) across the flats, with a height of 1 inch (24.3 mm) and a length of 1 4/7 inches (39.7 mm). The axle nut uses a stake locking mechanism to prevent loosening during operation. The shaft features 34 inboard splines with a male connection style and 28 outboard splines with a conventional joint type. The neoprene boot material provides resistance to wear and environmental factors, helping to protect the joint and extend service life.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Suzuki Verona
• Resolves issues with axle vibration or clicking noises during turns
• Addresses grease leakage from torn or degraded CV boots
• Fixes axle nut loosening or improper fitment problems
• Restores driveline stability and smooth power transfer to wheels

Installation Notes and Tips

When installing the TrakMotive GM-8219 CV axle shaft, ensure the axle nut is properly staked to secure the connection and prevent loosening. Verify the correct orientation of the male inboard joint and conventional outboard joint for proper fitment. Use appropriate torque specifications for the M24*1.5 axle nut thread size. Inspect the neoprene boot for any damage before installation to maintain joint protection.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. The included axle nut is designed with a stake locking type for secure installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and durability in driveline applications.
