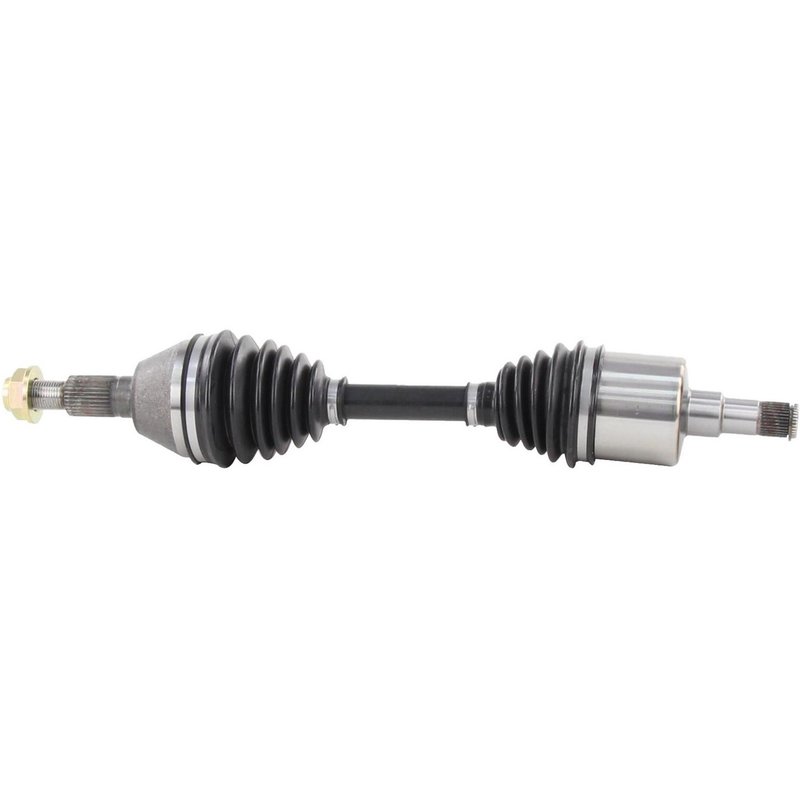

TrakMotive GM-8222 CV Axle Shaft - Front Right
| Brand | TrakMotive GM-8222 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.11 |
| Overall Compressed Length (mm) | 587 |
| Product line | CV Axle Shaft |
| Fits | Pontiac and Chevrolet · 8 vehicles |
New CV axle shaft. Built as a direct replacement for driveline and axle service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by supplying the matching self-lock nut.
Cross-references Cardone New 66-1413, Dayco 72354 and TrakMotive GM-8222 for the same application. See all 9.
CV Axle Shaft for Malibu and G6
TrakMotive GM-8222 is a new CV axle shaft for front right applications on select 2006-2010 Chevrolet Malibu and Pontiac G6 models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: GM-8222
- Fits front right positions on select Chevrolet Malibu and Pontiac G6 applications
- New axle assembly with 34 inboard splines and 30 outboard splines
- Neoprene boot material for driveline protection
- Includes axle nut with self-locking design
- Axle nut thread size: M24x2
- No ABS tone ring included
- Overall compressed length: 23.11 in. (587 mm)
Detailed Description
TrakMotive GM-8222 is a CV axle shaft for front right driveline replacement on 2006 Chevrolet Malibu, 2007 Chevrolet Malibu, 2006 Pontiac G6, and 2007-2010 Pontiac G6 models. This axle shaft uses a male inboard shaft connection, a conventional outboard shaft connection, and a neoprene boot to support consistent operation in the front driveline. The included axle nut features a hex head, self-locking design, and M24x2 thread size. For shoppers comparing OE-style driveline parts, GM-8222 is also referenced by Cardone New 66-1413 and Dayco 72354 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Torn boot or grease loss at the axle assembly
- Excessive play in the front right driveline
- Noise from a damaged or worn axle shaft
Installation Notes and Tips
Verify front right fitment by year, make, model, and option code before installation. Confirm spline count, axle length, and axle nut thread size match the original part. Inspect the hub, seals, and surrounding suspension components during replacement, and torque the axle nut to the vehicle manufacturer’s specification.
Quality Assurance
TrakMotive identifies this axle shaft as a new component and notes ISO 9001:1007 and TS 16949:2009 certified company standards. The manufacturer also states a limited lifetime warranty.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2010 | Pontiac | G6 | FWD | — | — | — | Front Right | Opt. M15; CV Axle Shaft |
| 2009 | Pontiac | G6 | — | — | — | — | Front Right | Opt. M15; CV Axle Shaft |
| 2008 | Pontiac | G6 | — | Automatic | 3.9L | V6 | Front Right | Opt. M15; CV Axle Shaft |
| 2007 | Chevrolet | Malibu | — | — | 3.9L | V6 | Front Right | Opt. M15; CV Axle Shaft |
| 2007 | Pontiac | G6 | — | Automatic | 3.9L | V6 | Front Right | Opt. M15; CV Axle Shaft |
| 2007 | Pontiac | G6 | — | Manual | 3.5L | V6 | Front Right | Opt. M15; CV Axle Shaft |
| 2006 | Chevrolet | Malibu | — | — | 3.9L | V6 | Front Right | CV Axle Shaft |
| 2006 | Pontiac | G6 | — | Automatic | 3.9L | V6 | Front Right | CV Axle Shaft |
