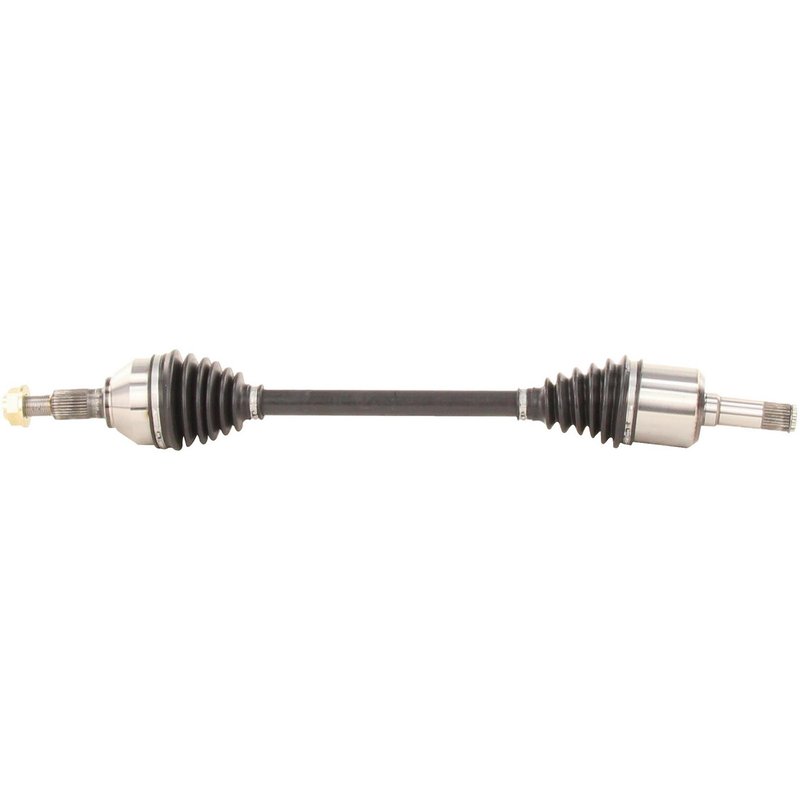

TrakMotive GM-8224 CV Axle Shaft - Rear Left
| Brand | TrakMotive GM-8224 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 31.46 |
| Overall Compressed Length (mm) | 799 |
| Product line | CV Axle Shaft |
| Fits | Cadillac, Saturn, and Pontiac · 35 vehicles |
New CV axle shaft. A direct replacement for worn driveline components.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied with a self-locking hex nut.
Cross-references Cardone New 66-1454, Cardone Reman 60-1452 and Cardone Reman 60-1454 for the same application. See all 16.
TrakMotive GM-8224 CV Axle Shaft
The TrakMotive GM-8224 CV axle shaft is a new rear left driveline replacement for select Cadillac, Saturn, and Pontiac applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct service on listed vehicles.
Key Features
- New CV axle shaft for rear left applications
- Neoprene boot material for joint protection
- Male inboard shaft connection with 27 inboard splines
- Conventional outboard joint with 30 outboard splines
- Axle nut included with self-lock design, M24x2 thread, and 35.5 mm hex size
- No ABS tone ring included
- Overall compressed length: 31.46 in. (799 mm)
Detailed Description
TrakMotive GM-8224 is a CV axle shaft for rear left driveline service on 2004-2009 Cadillac SRX, 2005-2011 Cadillac STS, 2006-2009 Pontiac Solstice, and 2007-2010 Saturn Sky. This axle is configured as a new replacement part with a male inboard shaft connection, conventional outboard joint type, and the specified spline counts to match the listed vehicle applications. TrakMotive positions the CV Axle Shaft line as a direct-fit driveline solution, and this part number GM-8224 follows that format for the covered rear left applications.
This part cross-references Cardone New 66-1454 for the same application.
What This Part Helps Address
- Clicking or popping noises from a worn CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Excessive play in the rear left driveline assembly
- Loss of smooth power transfer to the rear wheel
Installation Notes and Tips
- Verify rear left fitment by year, make, and model before ordering.
- Confirm axle nut thread size, hex size, and spline counts against the original part.
- Inspect hub, bearing, and seal surfaces during replacement to avoid repeat failures.
- Use the included axle nut only if it matches the vehicle specification.
- Check ABS-related requirements, since no ABS tone ring is included.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled manufacturing and quality management practices.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2011 | Cadillac | STS | RWD | — | — | Rear Left | CV Axle Shaft |
| 2011 | Cadillac | STS | AWD | — | — | Rear Left | CV Axle Shaft |
| 2010 | Cadillac | STS | RWD | — | — | Rear Left | CV Axle Shaft |
| 2010 | Cadillac | STS | AWD | — | — | Rear Left | CV Axle Shaft |
| 2010 | Saturn | Sky | RWD | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2010 | Saturn | Sky | — | 2.0L | L4 | Rear Left | CV Axle Shaft |
| 2009 | Cadillac | SRX | — | — | — | Rear Left | CV Axle Shaft |
| 2009 | Cadillac | STS | RWD | — | — | Rear Left | CV Axle Shaft |
| 2009 | Cadillac | STS | AWD | — | — | Rear Left | CV Axle Shaft |
| 2009 | Pontiac | Solstice | RWD | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2009 | Pontiac | Solstice | — | 2.0L | L4 | Rear Left | CV Axle Shaft |
| 2009 | Saturn | Sky | RWD | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2009 | Saturn | Sky | — | 2.0L | L4 | Rear Left | CV Axle Shaft |
| 2008 | Cadillac | SRX | — | — | — | Rear Left | CV Axle Shaft |
| 2008 | Cadillac | STS | RWD | — | — | Rear Left | CV Axle Shaft |
| 2008 | Cadillac | STS | AWD | — | — | Rear Left | CV Axle Shaft |
| 2008 | Pontiac | Solstice | RWD | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2008 | Pontiac | Solstice | — | 2.0L | L4 | Rear Left | CV Axle Shaft |
| 2008 | Saturn | Sky | RWD | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2008 | Saturn | Sky | — | 2.0L | L4 | Rear Left | CV Axle Shaft |
| 2007 | Cadillac | SRX | — | — | — | Rear Left | CV Axle Shaft |
| 2007 | Cadillac | STS | RWD | — | — | Rear Left | CV Axle Shaft |
| 2007 | Cadillac | STS | AWD | — | — | Rear Left | CV Axle Shaft |
| 2007 | Pontiac | Solstice | RWD | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2007 | Pontiac | Solstice | — | 2.0L | L4 | Rear Left | CV Axle Shaft |
| 2007 | Saturn | Sky | RWD | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2007 | Saturn | Sky | — | 2.0L | L4 | Rear Left | CV Axle Shaft |
| 2006 | Cadillac | SRX | — | — | — | Rear Left | CV Axle Shaft |
| 2006 | Cadillac | STS | RWD | — | — | Rear Left | CV Axle Shaft |
| 2006 | Cadillac | STS | AWD | — | — | Rear Left | CV Axle Shaft |
| 2006 | Pontiac | Solstice | — | — | — | Rear Left | CV Axle Shaft |
| 2005 | Cadillac | SRX | — | — | — | Rear Left | CV Axle Shaft |
| 2005 | Cadillac | STS | RWD | — | — | Rear Left | CV Axle Shaft |
| 2005 | Cadillac | STS | AWD | — | — | Rear Left | CV Axle Shaft |
| 2004 | Cadillac | SRX | — | — | — | Rear Left | CV Axle Shaft |
