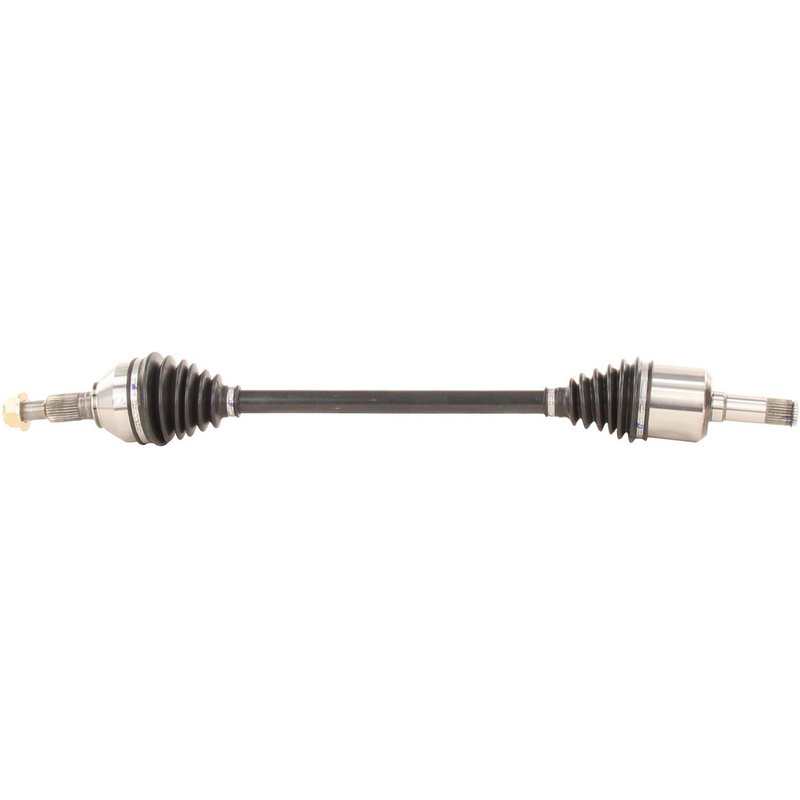

TrakMotive GM-8225 CV Axle Shaft - Rear Right

Overview of TrakMotive GM-8225 CV Axle Shaft

The TrakMotive GM-8225 CV Axle Shaft is designed for reliable driveline performance in select Cadillac, Pontiac, and Saturn vehicles. Engineered as a new replacement part, it ensures proper fit and function for models like the Cadillac SRX and STS, Pontiac Solstice and Sky, and Saturn Sky.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8225
• Compatible with Cadillac SRX, STS; Pontiac Solstice, Sky; Saturn Sky
• Axle Nut Included with Self-locking Hex Head
• Boot Material: Durable Neoprene
• Inboard Joint Type: Male with 27 Splines
• Outboard Joint Type: Conventional with 30 Splines
• Overall Compressed Length: 34.25 inches (870 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes durability and precise fitment, featuring components like neoprene boots for enhanced protection and self-locking axle nuts for secure installation. The GM-8225 is part of this line, offering a reliable driveline solution for specific GM-based vehicles.

Technical Specifications and Features

This CV axle shaft includes a self-locking axle nut with a hex head measuring 35.5 mm (1 2/5 inches) across flats, a height of 23 mm (1 inch), and a length of 41 mm (1 3/5 inches). The axle nut thread size is M24x2, ensuring compatibility with the vehicle's hub assembly. The neoprene boot material provides resistance to wear and environmental factors, protecting the CV joint from contaminants. The inboard joint features a male connection style with 27 splines, while the outboard joint uses a conventional type with 30 splines, supporting smooth power transfer and flexibility during suspension movement.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Cadillac SRX and STS models
• Fixes clicking or popping noises during turns in Pontiac Solstice and Sky vehicles
• Resolves vibration or shuddering issues related to axle shaft wear
• Addresses grease leaks or torn CV boots causing joint contamination
• Restores driveline integrity for Saturn Sky models experiencing axle shaft failure

Installation Notes and Tips

When installing the TrakMotive GM-8225 CV Axle Shaft, ensure the axle nut is torqued to the manufacturer’s specifications to maintain the self-locking feature. Inspect the hub and bearing assembly for wear before installation. The neoprene boot should be checked for proper seating to prevent premature joint failure. This part is designed for direct replacement, so no modifications are typically required for compatible Cadillac, Pontiac, and Saturn models.

Quality Assurance and Warranty

The GM-8225 CV Axle Shaft is a new, OEM-quality replacement part manufactured to meet or exceed original equipment standards. It includes a self-locking axle nut and durable neoprene boot for long-lasting performance. While specific warranty details are not provided, TrakMotive products generally come with manufacturer-backed quality assurance to support reliable operation in the specified vehicle applications.
