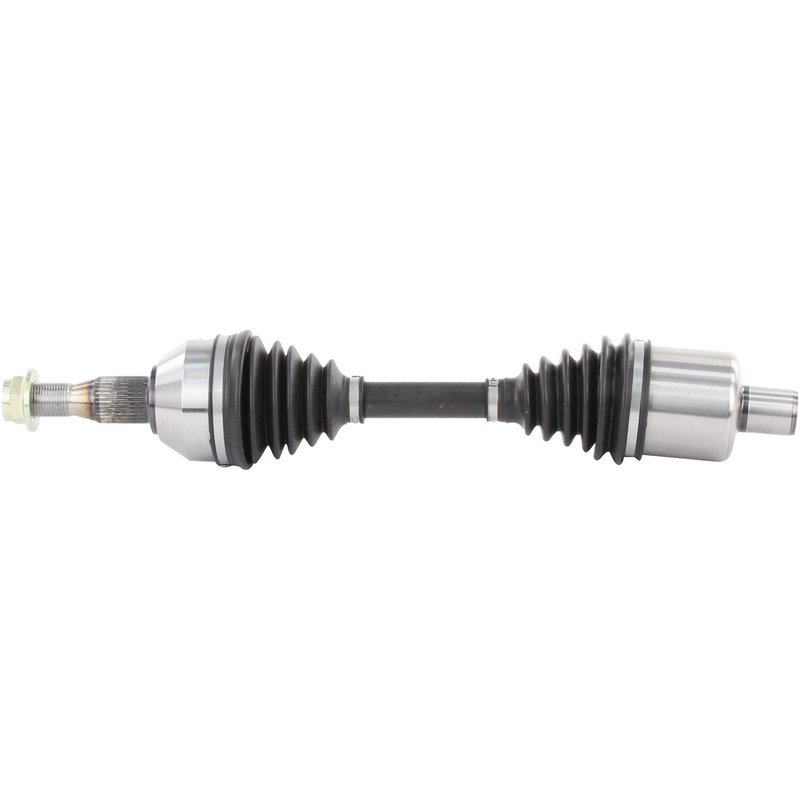

TrakMotive GM-8227 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8227 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 2/7 |
| Axle Nut Hex Size (mm) | 32.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.9 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 21.42 |
| Overall Compressed Length (mm) | 544 |
| Product line | CV Axle Shaft |
| Fits | Buick, Chevrolet, and Pontiac · 14 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for durable sealing.
Axle nut included. Comes with a self-locking hex nut for easier installation.
ABS-ready fitment. Built for non-ABS applications unless otherwise noted.
Cross-references Cardone New 66-1434, Cardone Reman 60-1434 and GSP NCV10225 for the same application. See all 10.
TrakMotive GM-8227 CV Axle Shaft
The TrakMotive GM-8227 is a new front left CV axle shaft built for select GM applications that need a direct driveline replacement. It is engineered with a neoprene boot, a supplied axle nut, and OE-style spline and joint configurations for straightforward service on the correct vehicle applications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: GM-8227
- Front left axle shaft for select Buick, Chevrolet, and Pontiac vehicles
- New construction with a 21.42 in. overall compressed length
- Neoprene boot material for driveline protection
- Female inboard shaft connection with 34 inboard splines
- Conventional outboard joint with spline connection and 33 outboard splines
- Axle nut included with self-lock design, M27x2 thread, and 32.8 mm hex size
- No ABS tone ring included
- ISO 9001:1007 and TS 16949:2009 certified company
Detailed Description
TrakMotive GM-8227 is a CV axle shaft for front left service on 2008-2009 Buick Allure, 2008-2009 Buick LaCrosse, 2006-2009 Chevrolet Impala SS, 2005-2008 Pontiac Grand Prix, and 2006-2007 Chevrolet Monte Carlo. This part number GM-8227 is built as a new replacement axle with the specified spline counts, female inboard connection, and conventional outboard joint to match the listed applications. This part cross-references Cardone New 66-1434 and Cardone Reman 60-1434 for the same application.
What This Axle Shaft Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Noise from a worn or failing front left driveline assembly
- Service replacement for a damaged axle on the listed Buick, Chevrolet, and Pontiac models
Installation Notes and Tips
Verify vehicle fitment by year, make, model, and front left position before installation. Confirm axle nut thread size, hex size, and compressed length against the original part. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring. Use the supplied axle nut only when it matches the vehicle specification.
Quality Assurance
TrakMotive identifies this as a new CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. The GM-8227 is backed by a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Buick | Allure | 5.3L | V8 | Front Left | CV Axle Shaft |
| 2009 | Buick | LaCrosse | 5.3L | V8 | Front Left | CV Axle Shaft |
| 2009 | Chevrolet | Impala | 5.3L | V8 | Front Left | SS; CV Axle Shaft |
| 2008 | Buick | Allure | 5.3L | V8 | Front Left | CV Axle Shaft |
| 2008 | Buick | LaCrosse | 5.3L | V8 | Front Left | CV Axle Shaft |
| 2008 | Chevrolet | Impala | 5.3L | V8 | Front Left | SS; CV Axle Shaft |
| 2008 | Pontiac | Grand Prix | 5.3L | V8 | Front Left | CV Axle Shaft |
| 2007 | Chevrolet | Impala | 5.3L | V8 | Front Left | SS; CV Axle Shaft |
| 2007 | Chevrolet | Monte Carlo | 5.3L | V8 | Front Left | CV Axle Shaft |
| 2007 | Pontiac | Grand Prix | 5.3L | V8 | Front Left | CV Axle Shaft |
| 2006 | Chevrolet | Impala | 5.3L | V8 | Front Left | SS; CV Axle Shaft |
| 2006 | Chevrolet | Monte Carlo | 5.3L | V8 | Front Left | CV Axle Shaft |
| 2006 | Pontiac | Grand Prix | 5.3L | V8 | Front Left | CV Axle Shaft |
| 2005 | Pontiac | Grand Prix | 5.3L | V8 | Front Left | CV Axle Shaft |
