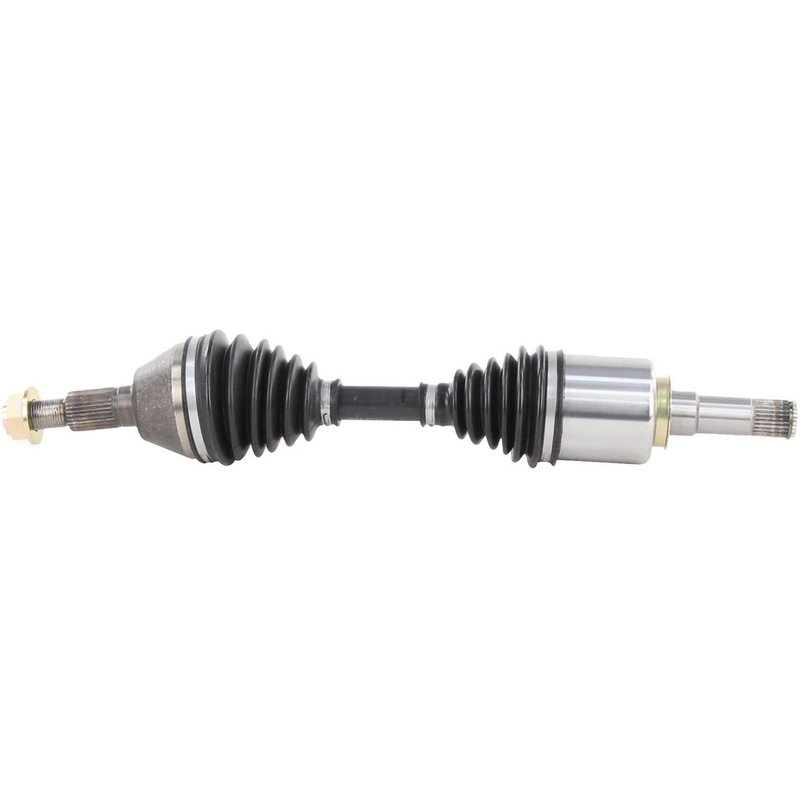

TrakMotive GM-8232 CV Axle Shaft - Front Left

Overview of TrakMotive GM-8232 CV Axle Shaft

The TrakMotive GM-8232 CV Axle Shaft is designed for reliable driveline performance in select Chevrolet, Pontiac, and Saturn vehicles. Engineered as a new replacement part, it ensures proper fit and function for models like the Chevrolet Malibu, Pontiac G6, and Saturn Aura.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8232
• Compatible with Chevrolet Malibu, Pontiac G6, Saturn Aura
• New CV axle shaft with neoprene boot material
• Includes self-locking hex axle nut (M24*2 thread size)
• Inboard joint type: Male with 27 splines
• Outboard joint type: Conventional with 30 splines
• Overall compressed length: 23.11 inches (587 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, direct-fit constant velocity axle shafts designed to meet OEM specifications. This line emphasizes durable construction with neoprene boots to protect joints and includes self-locking axle nuts for secure installation. The GM-8232 model is part of this line, providing a reliable replacement option for specific GM vehicles requiring precise spline counts and joint types.

Technical Specifications and Features

This CV axle shaft features a neoprene boot material that offers resistance to wear and environmental factors, extending the life of the joint. The inboard joint is a male type with 27 splines, while the outboard joint is conventional with 30 splines, ensuring compatibility with the drivetrain components of Chevrolet Malibu, Pontiac G6, and Saturn Aura models. The included axle nut is a self-locking hex type with a 35.5 mm (1 2/5 inch) hex size and a thread size of M24*2, designed to maintain secure fastening during operation. The overall compressed length of 23.11 inches (587 mm) matches OEM dimensions for proper fitment.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Chevrolet Malibu, Pontiac G6, and Saturn Aura
• Resolves issues related to axle shaft joint wear causing vibrations or clicking noises
• Addresses boot damage or leaks that can lead to joint contamination
• Fixes axle nut loosening problems with included self-locking hex nut
• Restores proper driveline function and vehicle handling

Installation Notes and Tips

When installing the TrakMotive GM-8232 CV Axle Shaft, ensure the vehicle is securely lifted and supported. Verify spline counts and joint types match the vehicle’s specifications before installation. Use the included self-locking hex axle nut (M24*2 thread) and torque to manufacturer specifications to prevent loosening. Inspect the neoprene boot for any damage during installation and avoid overextending the boot to maintain its protective function.

Quality Assurance and Warranty

The TrakMotive GM-8232 CV Axle Shaft is a new, direct-fit replacement part manufactured to meet or exceed OEM standards. It includes a self-locking axle nut for secure installation and uses durable neoprene boot material for joint protection. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship.
