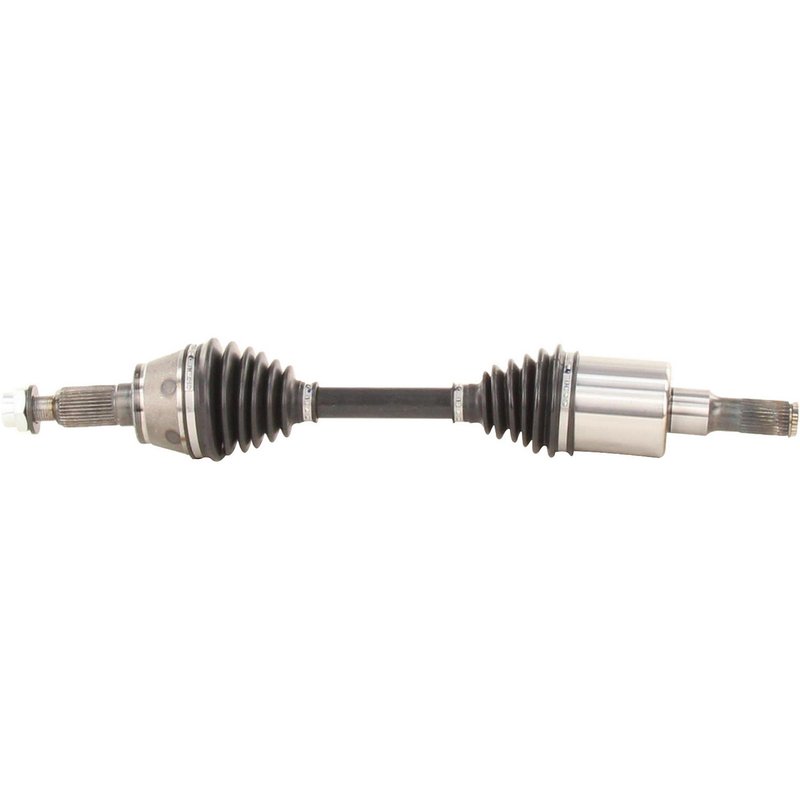

TrakMotive GM-8240 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive GM-8240 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.12 |
| Overall Compressed Length (mm) | 638 |
| Product line | CV Axle Shaft |
| Fits | Hummer · 14 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by supplying the matching self-locking nut.
Cross-references Cardone New 66-1417, Cardone Reman 60-1417 and GSP NCV10244 for the same application. See all 13.
CV Axle Shaft for Hummer H3 and H3T
Restore driveline performance with this new TrakMotive CV axle shaft, part number GM-8240. It is built for front left and front right applications on the 2006-2010 Hummer H3 and 2009-2010 Hummer H3T, with fitment matched to the listed spline counts, joint styles, and axle dimensions.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: GM-8240
- New axle shaft with a neoprene boot
- Inboard joint type: male
- Outboard joint type: conventional
- 28 inboard splines and 33 outboard splines
- Overall compressed length: 25.12 in. (638 mm)
- Includes axle nut with self-lock design
- Axle nut thread size: M24x2; hex size: 36 mm
- ABS tone ring not included
Product Details
TrakMotive GM-8240 is a CV axle shaft for Hummer H3 and H3T front axle service. It is specified for 2006-2010 Hummer H3 front right and front left positions, plus 2009-2010 Hummer H3T front right and front left positions. The axle uses a male inboard connection, a conventional outboard connection, and a neoprene boot for the CV joint assembly. TrakMotive identifies this axle as a new replacement part, and the included axle nut is a hex-style, self-lock design sized M24x2.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger and light truck applications. GM-8240 follows that product line approach with application-specific dimensions and spline counts for the listed Hummer H3 and H3T front positions. This part cross-references Cardone New 66-1417 for the same application.
What This Axle Shaft Helps Address
- Clicking or popping from a worn front CV joint
- Vibration during acceleration from a damaged axle assembly
- Torn boot conditions that can lead to grease loss and contamination
- Front driveline noise caused by spline or joint wear
- Replacement needs after axle shaft damage or corrosion
Installation Notes and Tips
Verify front left or front right position before ordering, since this axle is listed for both sides on the Hummer H3 and H3T. Confirm spline count, axle nut thread size, and overall compressed length against the original part before installation. The ABS tone ring is not included, so compare your vehicle’s original ABS setup before service. Use the included self-lock axle nut and follow factory torque specifications during installation.
Quality Assurance
This TrakMotive CV axle shaft is a new part from an ISO 9001:1007 and TS 16949:2009 certified company. It is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Hummer | H3 | Front Right | CV Axle Shaft |
| 2010 | Hummer | H3 | Front Left | CV Axle Shaft |
| 2010 | Hummer | H3T | Front Right | CV Axle Shaft |
| 2010 | Hummer | H3T | Front Left | CV Axle Shaft |
| 2009 | Hummer | H3 | Front Right | CV Axle Shaft |
| 2009 | Hummer | H3 | Front Left | CV Axle Shaft |
| 2009 | Hummer | H3T | Front Right | CV Axle Shaft |
| 2009 | Hummer | H3T | Front Left | CV Axle Shaft |
| 2008 | Hummer | H3 | Front Right | CV Axle Shaft |
| 2008 | Hummer | H3 | Front Left | CV Axle Shaft |
| 2007 | Hummer | H3 | Front Right | CV Axle Shaft |
| 2007 | Hummer | H3 | Front Left | CV Axle Shaft |
| 2006 | Hummer | H3 | Front Right | CV Axle Shaft |
| 2006 | Hummer | H3 | Front Left | CV Axle Shaft |
