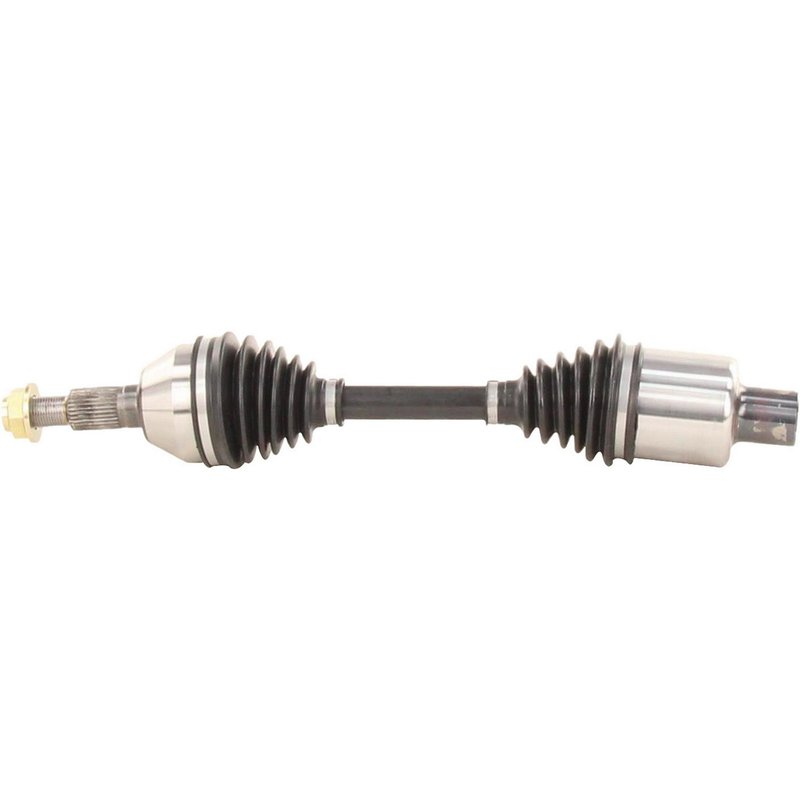

TrakMotive GM-8242 CV Axle Shaft - Front Right

Overview of TrakMotive GM-8242 CV Axle Shaft

The TrakMotive GM-8242 CV Axle Shaft is designed for reliable driveline performance in select Chevrolet, Pontiac, Saturn, and Suzuki models. This new CV axle shaft provides a precise fit and durable construction for vehicles like the Chevrolet Equinox, Pontiac Torrent, Saturn Vue, and Suzuki XL-7.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8242
• Compatible with Chevrolet Equinox, Pontiac Torrent, Saturn Vue, Suzuki XL-7
• Axle Nut Included with Self-locking Hex Head
• Neoprene Boot Material for Enhanced Durability
• Overall Compressed Length: 21.65 inches (550 mm)
• Inboard Joint Type: Female with 27 Splines
• Outboard Joint Type: Conventional with 30 Splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components engineered for direct replacement applications. This line emphasizes precise fitment and reliable joint performance, ensuring compatibility with specific vehicle makes and models. The GM-8242 part exemplifies this approach by offering a neoprene boot for protection and a self-locking axle nut to maintain secure installation.

Technical Specifications and Features

The GM-8242 CV Axle Shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The axle nut included is a self-locking type with a hex head measuring 1 2/5 inches (35.5 mm) across flats, 1 inch (23 mm) in height, and 1 3/5 inches (41 mm) in length, designed to maintain secure fastening under operating conditions. The inboard joint uses a female connection style with 27 splines, while the outboard joint is conventional with 30 splines, ensuring proper engagement and torque transfer. The overall compressed length of 21.65 inches (550 mm) matches OEM specifications for the listed vehicle models.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Chevrolet Equinox, Pontiac Torrent, Saturn Vue, and Suzuki XL-7
• Resolves clicking or popping noises during turns caused by joint wear
• Fixes vibration or shuddering under acceleration due to axle imbalance or damage
• Addresses grease leakage from torn or degraded CV boots
• Restores driveline integrity after axle shaft bending or breakage

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the old axle shaft carefully to avoid damage to surrounding components. Verify that the new GM-8242 axle shaft matches the original in length and spline count. Use the included self-locking axle nut and torque it to manufacturer specifications to maintain secure fitment. Inspect the neoprene boot for any damage after installation and confirm smooth joint operation by rotating the axle shaft manually.

Quality Assurance and Warranty

The TrakMotive GM-8242 CV Axle Shaft is a new, direct replacement part manufactured to meet or exceed OEM standards. It includes a self-locking axle nut and durable neoprene boot to ensure long service life. While specific warranty details are not provided here, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
